All stock codes associated to this product
DPGSFGSGS120, DPGS-FGS-GS120
Description

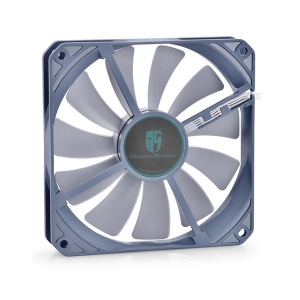

Though 20mm thick, GS120 pushes the same airflow as normal 25mm thick fans.

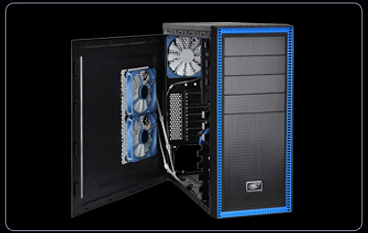

You can save 5mm space, which may matters when you try to add a side panel fan
and you already have a tower CPU heatsink.Or when your tower CPU heatsink fan
slightly blocks your memory slots, you definitely need this 5mm space. That’s
when GS120 is designed for.
Features
Slimness for More Space
20mm thickness allows for more space inside your case. You can easily mount
big and tall heatsink as you want.

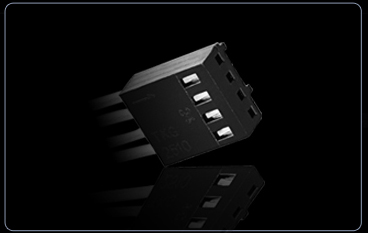

PWM Function Bearing Stand
With a 4-pin PWM connector, GS120 is able to lower down the fan speed when
the system is getting idle.

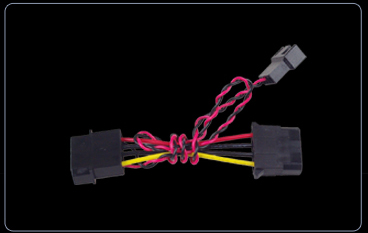

7V Low-noise Adapter
When your system is not running at full load, you can easily use this
low-noise adapter to reduce the input voltage to lower down the fan speed.

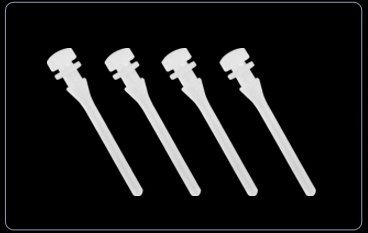

Rubber Cable Ties for Tidiness
Four rubber buckles are used for the installation. The rubber material not
only makes the installation quite easy but also absorbs vibration to the maximum
so as to avoid the noise made by normal metal screws.
Endurable Teflon Fan Cable
The fan cable is made of PTFE (Poly Tetra Fluoro Ethylene), which withstands
really high temperature and heavy duty usage to ensure a long lifespan.

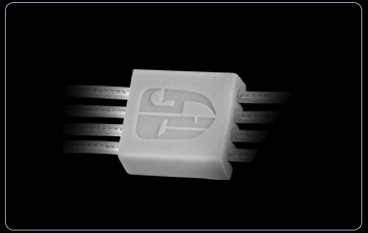

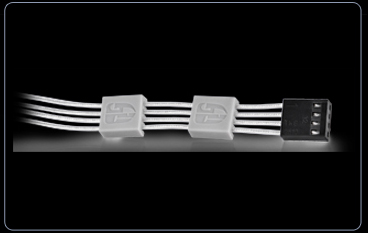

Rubber Cable Ties for Tidiness
Two pieces of rubber cable ties are included to route the fan cable to make
everything in place inside the case. This would provide a clean looking case and
also improves the ventilation.
Features
- 20mm thickness allows for more space inside your case. You can easily
mount big and tall heatsink as you want.
- With a 4-pin PWM connector, GS120 is able to lower down the fan speed when
the system is getting idle.
- Four rubber buckles are used for the installation, which not only makes
the installation quite easy but also absorbs vibration to the maximum so as to
avoid the noise made by normal metal screws
- Two pieces of rubber cable ties are attached to route the fan cable to
make everything in place.
Specifications
Overall
Dimension |
120X120X20mm |
Operating
Voltage |
10.8 -
13.2VDC |
Fan
Speed |
900-1800%RPM |
Net
Weight |
110g |
Started
Voltage |
7VDC |
Max. Air
Flow |
61.93CFM |
Bearing
Type |
Hydro
Bearing |
Rated
Current |
0.2110%A(MAX) |
Noise |
18.232.4dB |
Rated
Voltage |
12VDC |
Power
Input |
2.52W |
