All stock codes associated to this product
MCWL3B2KK5A50, MCW-L3B2-KK5A50, 3711509, 4719512054437, 884102033339
Overview

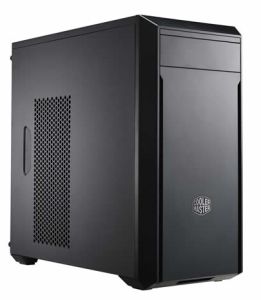

REDUCE YOUR SIZE, NOT YOUR PASSION
Not everyone has space for a larger PC, but going small doesn't have to be a
massive trade-off. With this Micro-ATX case, we've added a few ways to give you
more room to work with.
Features
FLEXIBLE DESIGN
FeaturesChallenge the confines of the MasterBox Lite 3 by utilizing its
flexibility to free up space for larger components. With an optical drive cage
capable of meeting all your storage needs, the rest of this case's interior is
open space for full-sized graphics cards and cooling normally reserved for
larger cases.
Fits Your Needs and Your Passion
LOTS OF SPACE IN A MINI-CASE
Have the freedom to create a PC that suits your needs in a size that works
for any space. With an easily configurable layout you can build a system that
fits anywhere with the components you want.
Specifications
|
Model
Number |
Window panel
version: |
MCW-L3S2-KW5N |
|
Solid panel
version: |
MCW-L3S2-KN5N |
|
Available
Color |
Black |
|
Dimensions
(LxWxH) |
395 x 180 x
378mm |
|
Net
Weight |
3.65Kg |
|
Motherboard
Support |
Micro-ATX,
Mini-ITX |
|
Drive
Bays |
5.25" |
1 (can fit one optical
drive, one HDD or 2 SSDs) |
|
3.5" |
1 (can fit one HDD or
one SSD) |
|
2.5" |
1 (can fit one
SSD) |
|
I/O
Port |
USB 3.0 x
2 |
|
Expansion
Slots |
4 |
|
Cooling
Support |
Front |
120mm fan x
2 |
|
Rear |
120mm fan x 1
(pre-installed) |
|
Radiator
Support |
Front |
Up to
240mm |
|
Power
Supply |
Upper Rear Mount, ATX
PS2 (maximum length: 165mm) |
|
Compatibility
(Maximum) |
Graphics card
length: |
345mm |
|
CPU cooler
height: |
157mm |
|
EAN
Code |
Window panel
version: |
4.71951E+12 |
|
Solid panel
version: |
4.71951E+12 |
|
UPC
Code |
Window panel
version: |
8.84102E+11 |
|
Solid Panel
version: |
8.84102E+11 |
