Overview

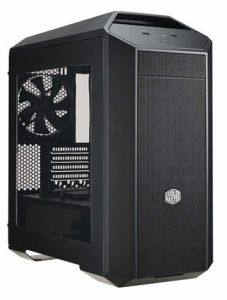

A Smaller Case With Lots of Space
COMPACT MASTERCASE WITH EXTERNAL AND INTERNAL MODULARITY
This new compact addition to the MasterCase line is built with the same
FreeFormâ„¢ Modular System that defines the series. Customize and adjust your case
via swappable aesthetics, adjustable layouts and intuitive thermal performance.
Improved layout flexibility handles larger components and cooling systems within
a discreet form factor.
Features
FOR MICRO-ATX MOTHERBOARDS
A case meant for a smaller build that still packs a punch. Build the high
performance PC you want in a tighter frame. Its streamlined design with steel
and mesh makes this product incomparably stylish. It supports up to five fans,
eight HDDs and two graphics cards
Compact & Portable
Save space and easily transport your build with the MasterCase Pro 3. The
reduced size and added top handles mean you don’t have to give your PC the
awkward bear hug. Conveniently take your case to LAN parties, special events,
and trade shows while still fitting the latest full-sized components
Special Features

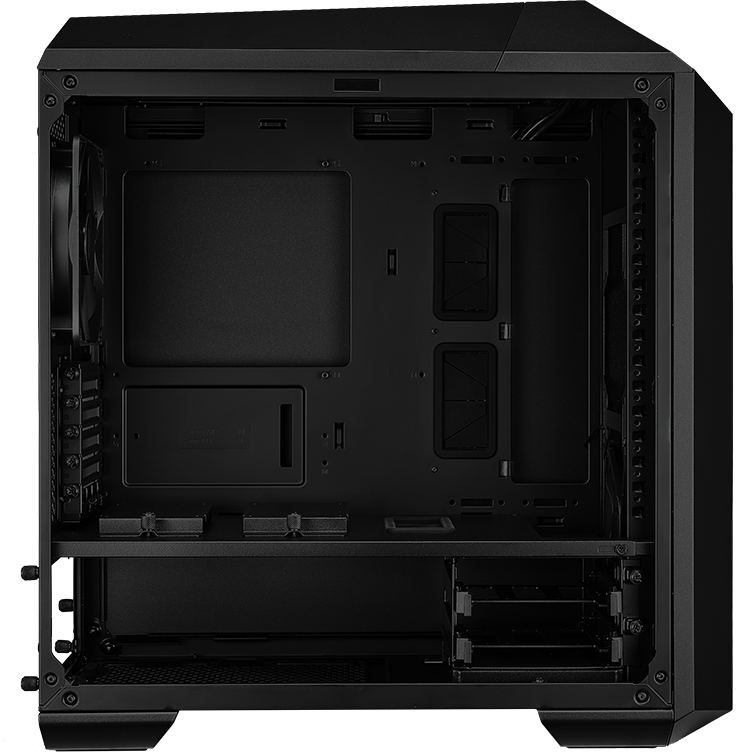

REMOVABLE PARTITION PANEL
Remove the Partition Panel to add space for an additional graphics card.
SLIDING CLIP & CLICK PANEL
Adjust the Sliding Clip & Click Panel for your needs: HDD cages, DIY
cooling system, or remove it.
FRONT COOLING BRACKET
Remove the Front Cooling Bracket for convenient fan or radiator installation
outside of the case
Customize, Adjust and Upgrade
FREEDOM INSIDE AND OUT
The FreeFormâ„¢ Modular System allows the MasterCase Pro 3 the same level of
customization and upgradeability of the entire MasterCase series. Easily
implement all of our MasterAccessories with room for your own customization
options, such as DIY liquid cooling.
Build a PC that Fits Your Needs.
MODULAR DESIGN MEANS FLEXIBILITY
With the MasterCase 3 Pro you have the freedom to build the Micro-ATX PC you
want to at a manageable size. There is ample space for up to two full-sized
graphics cards, six fans or liquid cooling radiators, and eight HDDs.
Specifications
|
Model
Number |
MCY-C3P1-KWNN |
|
Dimensions (L x W x
H) |
467 x 235 x 505
mm |
|
Net
Weight |
9.1 Kg / 20.1
lbs |
|
M/B
Type |
microATX,
mini-ITX |
|
Drive
Bays |
5.25" |
0 |
|
3.5" |
2 |
|
2.5" |
2+2 |
|
I/O
Port |
USB 3.0 x 2, Audio In
& Out (supports HD Audio) |
|
Expansion
Slots |
5 |
|
Cooling
Support |
Front |
140 x 25mm fan x 1,
1200RPM (pre-Installed) |
|
140 x 25mm fan x 1
(optional) |
|
Rear |
140 x 25mm fan x 1,
1200RPM (pre-Installed) |
|
120mm fan x 1
(optional) |
|
Top |
120 / 140mm x 2
(optional) |
|
Radiator
Support |
Rear |
120mm,
140mm |
|
Top |
120mm, 140mm,
240mm |
|
Power
Supply |
Bottom Mount, ATX PS2
(maximum length: 200mm) |
|
Compatibility
(Maximum) |
370mm / 14.57" (without
3.5" HDD cage) |
|
258mm / 10.16" (with
3.5" HDD cage) |
|
CPU cooler height:
190mm / 7.48" |
|
EAN
Code |
4.71951E+12 |
|
UPC
Code |
8.84102E+11 |
