All stock codes associated to this product
909SILVER, 909-SILVER, 2980450
Overview

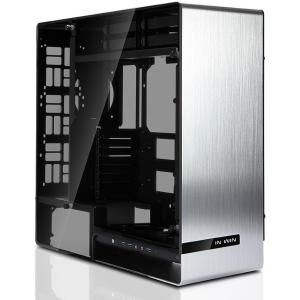

Impressively Detailed Craftsmanship
909 is constructed with solid materials, and its chamfered edge design and
sleek anodized aluminium are beautifully crafted to masterfully create a
streamlined and smooth enclosure inside/out.
Simplicity in Design
909 features a single piece 4mm brushed aluminium shell and an elegant back
panel that hides unnecessary rear I/O cables. The clutter-free design
demonstrates the elegant aesthetics of simplicity.
Tempered Glass Side Panels
The side panels are finished entirely out of 5mm tinted tempered glass which
reveals the internal LED light, and overall enhances the 909 into a truly modern
and dynamic appearance.
*In Win is committed to safeguarding consumer rights, we provide AIG
insurance coverage up to USD 2 million to ensure product safety
USB 3.1 TYPE-C
909 is equipped with one all-new reversible USB3.1 TYPE-C port for ultimate
speed transfers up to 10Gb/s which is twice as fast USB3.0.
*The actual data transfer speeds will be determined by your motherboard
specification.
Magnetic Aluminium Dust Filter
The front intake fan dust filter has an embedded magnet design for easy
removal creating a convenient installation and more importantly excellent dust
reduction.
Elegant Lighting Effects
A high-quality chassis should look beautiful when powered on and with the 909
it has a white LED strip creating various lighting effects to illuminate the PC
interior beautifully highlighting the interior components.
Unique HDD & PSU Chamber Design
The separate HDD and PSU chambers provide an ideal thermal environment by
allowing heat airflow to dissipate directly to the back venting holes without
interfering with the motherboard and graphic card area, and significantly
improving the ventilation.
Specifications
|
Model |
909 |
|
Color |
Silver |
|
Case
Type |
Full
Tower |
|
Case
Material |
Aluminium, Tempered
Glass |
|
M/B
Compatibility |
12" x 13.4" E-ATX, ATX,
Micro-ATX, Mini-ITX |
|
Expansion
Slots |
PCI-E x
8 |
|
High-end Graphics Card
Compatible |
|
- Length: 320mm
Maximum |
|
- Height: 180mm
Maximum |
|
Front
Ports |
3 x USB
3.0 |
|
1 x USB 3.1
Type-C |
|
HD
Audio |
|
Internal Drive
Bays |
4 x
2.5"/3.5" |
|
6 x
2.5" |
|
Thermal Solution
Compatibility |
2 x 120/140mm Front
Fan |
|
1 x 120mm Middle
Fan |
|
3 x 120mm or 2 x 140mm
Rear Fan |
|
2 x 120/140mm Bottom
Fan |
|
1 x 280mm Front
Radiator |
|
1 x 120mm Middle
Radiator |
|
1 x 360mm Rear
Radiator |
|
1 x 240mm Bottom
Radiator |
|
CPU Heatsink
Compatible |
|
- CPU die surface to
side panel height: |
|
175mm
Maximum |
|
Power
Supply |
PSII: ATX12V and
EPS12V |
|
Compatibility |
- Length: 220mm
Maximum |
|
Product
Dimension |
540mm x 231mm x
575mm |
|
(H x W x
D) |
21.3" x 9" x
22.6" |
|
Product
Dimension |
540mm x 251mm x
575mm |
|
(H x W x
D) |
21.3" x 9.9" x
22.6" |
|
with screw
height |
|
|
Package
Dimension |
370mm x 707mm x
672mm |
|
(H x W x
D) |
14.6" x 27.9" x
22.6" |
|
Net
Weight |
17kg/37.48lb |
|
Gross
Weight |
20.6kg/45.42lb |
