Overview
Exquisitely Modest Aesthetic Design

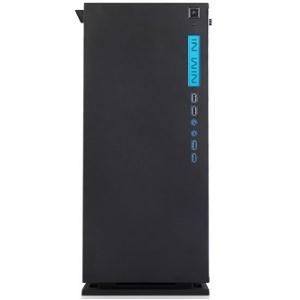

The IN WIN team presents the 303, a simple, yet elegant computer chassis
crafted from steel and tempered glass. The distinctively clean front panel is
complemented with a bright LED design to balance the overall appearance.
Radiant Luminosity
The IN WIN logo is highlighted Neon as well as the lucent stripped I/O front
panel. These gorgeous LEDs also have the purpose of indicating when the PC is
activated.
Accelerated Tool-less Design
In Win has set a standard for being an innovative computer hardware company.
Mission accomplished with the 303 since it has perfected a tool-less design by
being able to remove the beautiful 3mm tempered glass side panel by just
pressing the handle.
Choose Your Own Side Panel !
Closed Panel with Affixed Thumbscrews (By Request)
Tempered Glass Panel Design
(Pre-installed)
User Friendly Dust Filter
This easily accessible dust filter has an embedded design for quick removal.
Its conveniently located on the bottom, and removing dust has never been
easier.
Versatile Cooling Options
Overall, the 303 can accommodate two radiators (top and rear) and three fans
at the bottom providing users with a well-cooled rig. The cool air intakes from
the bottom creates efficient air flow for quick heat dissipation.
In Win's Attention to Detail
The 303 is constructed with 1.2mm SECC, supports 2.5and3.5 drive bays, and
its separate PSU chamber provides an ideal climate without interfering with the
motherboard and graphics card area. The specialized GPU holder can provide extra
support to graphics cards. Yet another detail IN WIN oversees and manufactures
to make PC building much easier.
Specifications
|
Model |
303 |
|
Color |
Black |
|
Case
Type |
Mid
Tower |
|
Case
Material |
SECC, Tempered
Glass |
|
M/B
Compatibility |
12" x 10.7" ATX,
Micro-ATX, Mini-ITX |
|
Expansion
Slots |
PCI-E x
7 |
|
Maximum
Compatibility |
VGA Card
Length:350mm |
|
CPU Heatsink Height
:160mm |
|
Front
Ports |
2 x USB
3.0 |
|
2 x USB
2.0 |
|
HD
Audio |
|
Internal Drive
Bays |
2 x
3.5" |
|
2 x
2.5" |
|
Pre-installed (Max. up
to 3 bays) |
|
Thermal Solution
Compatibility |
1 x 120mm Rear Fan /
120mm Radiator |
|
3 x 120mm Top Fan /
360mm Radiator |
|
3 x 120mm Bottom
Fan |
|
Power Supply
Compatibility |
PSII:
ATX12V |
|
- Length up to
200mm |
|
Product
Dimension |
500mm x 215mm x
480mm |
|
(H x W x
D) |
19.6" x 8.4" x
18.8" |
|
Product
Dimension |
500mm x 248mm x
480mm |
|
(H x W x
D) |
19.6" x 9.7" x
18.8" |
|
with screw &
handle height |
|
|
Package
Dimension |
335mm x 610mm x
572mm |
|
(H x W x
D) |
13.1" x 24" x
22.5" |
|
Net
Weight |
10.88kg /
24lb |
|
Gross
Weight |
13.02kg /
28.7lb |
