Overview

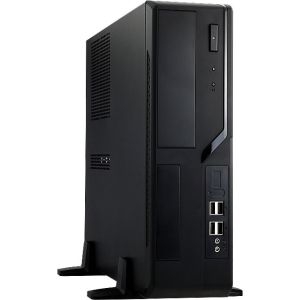

A small 11.5L SFF chassis with optimal thermal and acoustic performance
without additional system fan.
Design Philosophy
![](/images/extra/41/P411865-i1.jpg)
A small 11.5L SFF chassis with optimal thermal and acoustic performance
without additional system fan.
Excellent Thermal Solution
![](/images/extra/41/P411865-i2.jpg)
The innovative partition plate cooling technology (PPCT) maximizes
performance while providing a quiet and cooling environment.
High Compatibility
![](/images/extra/41/P411865-i3.jpg)
It is compatible with standard desktop components, which makes the
installation easier and provides a great expandability when needed.
Multi-Enjoyment
![](/images/extra/41/P411865-i4.jpg)
Designated Infrared Receiver position to support Media Center and optional
internal amplifier.
Detachable Drive Bay Cage
![](/images/extra/41/P411865-i5.jpg)
For easy installation
Tool-Free
![](/images/extra/41/P411865-i6.jpg)
Optional screwless designs - ODD/FDD/HDD bays, expansion slots, and top cover
clips for easy installation
New PPCT Excellent Thermal Solution
![](/images/extra/41/P411865-i7.jpg)
- New features of the 2nd generation of PPCT technology include removable
air duct and an enlarged adjustable vent for various CPU positions.
- Supports LGA1155 Socket and downward compatible (LGA775)
Small Form Factor Design
Intel Lanyu Ref. Design
- Optimal thermal and acoustic performance without additional system
fan
Front Supports
![](/images/extra/41/P411865-i8.jpg)
- USB 2.0 x 4
- HD Audio
- Optional USB 3.0 x 2
Tool Free
![](/images/extra/41/P411865-i9.jpg)
- Screwless FDD/HDD Bays Clips
![](/images/extra/41/P411865-i10.jpg)
- Screwless Expansion Slots Clip
![](/images/extra/41/P411865-i11.jpg)
- Screwless Top Cover Clips
![](/images/extra/41/P411865-i12.jpg)
Optional
3.5" to 2.5" HDD/SSD Bracket
![](/images/extra/41/P411865-i13.jpg)
- Optional 60 mm Fan x 1 (60 x 60 x 10 mm, 2500rpm, 20dB Fan, 4 Pin Power
Connector)
![](/images/extra/p411865-i1.jpg)
Key Lock Side Panel
![](/images/extra/p411865-i2.jpg)
The side panel is a theft deterrent key lock set for safeguarding your
chassis equipment from unauthorized access
Specifications
Case
Size |
SFF Slim
Chassis |
External Drive
Bays |
5.25" x 1, 3.5" x
1 |
Internal Drive
Bays |
3.5" x 2, 2.5" x
1 |
Front
Ports |
USB 2.0 x 4, HD
Audio |
Dimensions (H x W x
D) |
330 x 96 x 365 mm
(11.5L) |
w/o Front
Panel |
13" x 3.8" x
14.4" |
MB Form
Factor |
Micro-ATX |
I/O Expansion
Slots |
Low Profile Slot x
4 |
Power
Supply |
Standard TFX
12V |
Thermal
Solution |
Removable Air
Filter |
80 mm Side
Fan |
Safety |
Meets RoHS, CE and FCC
Class B Requirements |
Security |
Padlock Loop /
Kensington Slot |
Optional |
Intel Lanyu Ref.
Design-New Partition Plate Cooling Tech (New PPCT) |
IR IEEE
1394 |
Chassis Intrusion
Switch |
Screwless ODD/FDD/HDD
Bays Clips |
Screwless Expansion
Slots Clip |
Screwless Top Cover
Clips |
USB 3.0 x
2 |
3.5" to 2.5" HDD/SSD
Bracket |
Key Lock Side
Panel |
