All stock codes associated to this product
RLS24V20PBR2, RL-S24V-20PB-R2, CPCMS240P, CPCM-S240P, 4719512052952, 884102029066
Overview

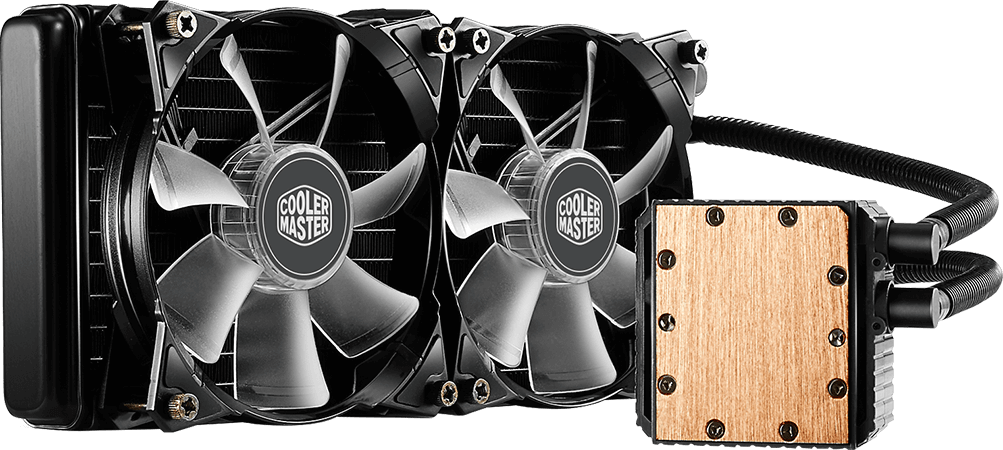

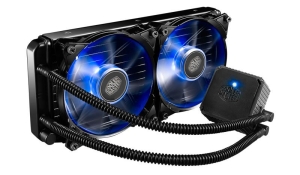

The Seidon 240P is the latest AIO watercooler that boasts an excellent value
for performance. The compact 240mm radiator fits in virtually every case. Thanks
to dual Jetflo fans designed for high air flow with shining blue LEDs, Seidon
can unleash a powerful cooling storm at your command. Durable FEP Tubing
provides the advantages of nearly no moisture absorption, high thermal stability
and high pressure tolerance which all contribute to a long operating life.

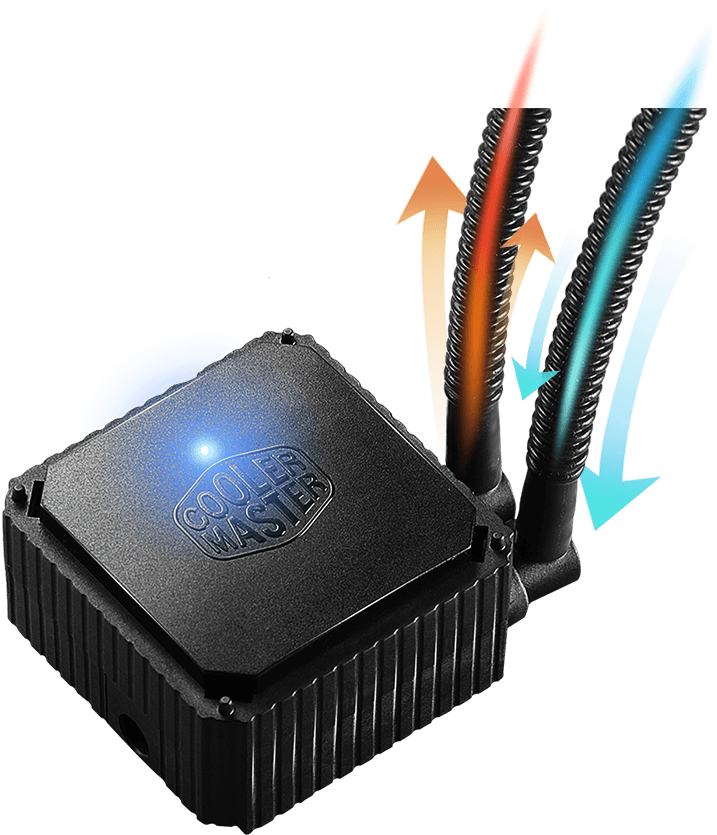

The Optimal Pump and Water Block
The best optimization pump and water block guarantees the best water flow and
system performance. Elegant Blue LED illumination on the top of water block.
New Cold Plate Technology
Factory filled with coolant then sealed and pressure tested - requires zero
maintenance for years.

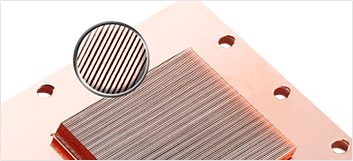

Precision machined Microchannels maximize the water contact surface too
quickly dissipate heat.

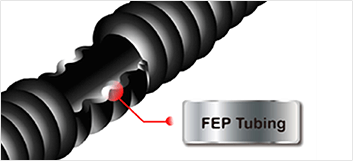

The FEP tubing allows maximum, unrestricted waterflow and decreased
evaporation rate for greater durability
Tool-free Universal Mounting System
Compatible with all available Intel and AMD platform, include latest Intel
LGA 2011 and AM3+

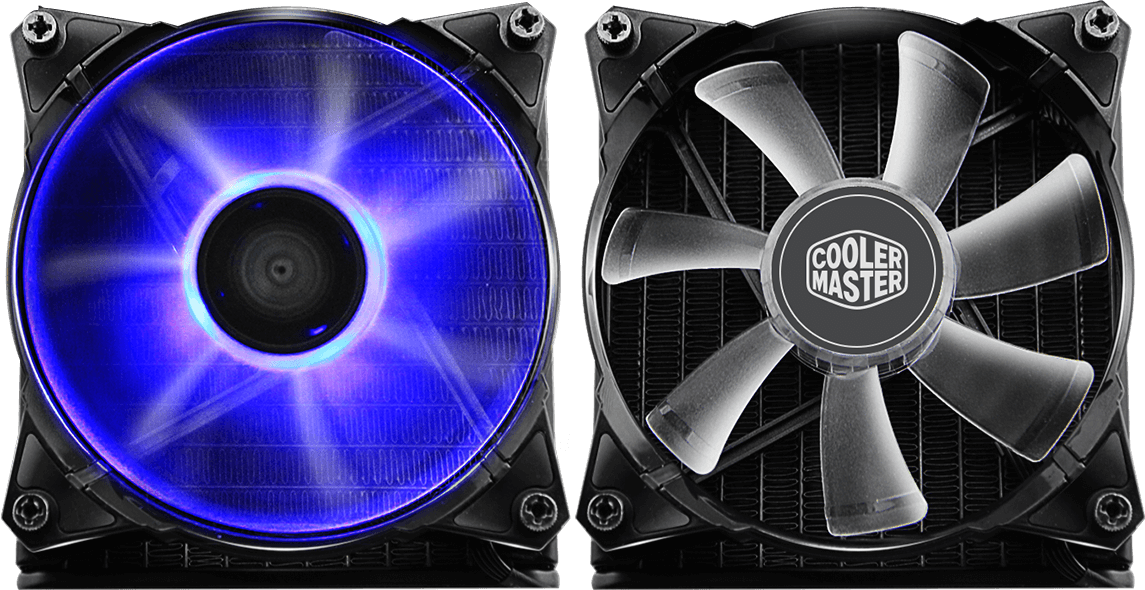

Silent Fan Technology
Dual Silencio fans to increase the performance of heat dissipation
Specifications
|
Model |
RL-S24V-20PB-R2 |
|
CPU |
Intel LGA
Socket |
2011-v3/ 2011/ 1151/
1150/ 1155/ 1156/ 1366/ 775 |
|
AMD
Socket |
AM3+/ AM3/ AM2+/ AM2/
FM2+/ FM2/ FM1 |
|
Main System
Dimensions |
62 x 62 x 36.4 mm (2.4
x 2.4 x 1.4 inch) |
|
Radiator
Dimensions |
273 x 120 x 27 mm (10.7
x 4.7 x 1.1 inch) |
|
Radiator
Material |
Aluminum |
|
Fan
Dimensions |
120 x 120 x 25 mm (4.7
x 4.7 x 1 inch) |
|
Fan
Speed |
800 ~ 2400 RPM (PWM)
10% |
|
Fan
Airflow |
95 CFM 10%
(MAX) |
|
Fan Air
Pressure |
2.75 mmH2O 10%
(MAX) |
|
Fan Life
Expectancy |
40,000
hours |
|
Fan Noise
Level |
12 ~ 35
dBA |
|
Fan Bearing
Type |
Rifle
Bearing |
|
Fan
Connector |
4-Pin |
|
Fan Rated
Voltage |
12
VDC |
|
Fan Rated
Current |
0.42
A |
|
Fan Power
Consumption |
5.04
W |
|
Pump Life
Expectancy |
70,000
hours |
|
Pump Noise
Level |
< 23
dBA |
|
Pump Rated
Voltage |
12
VDC |
|
Pump Power
Consumption |
3.6
W |
|
Warranty |
2
Years |
