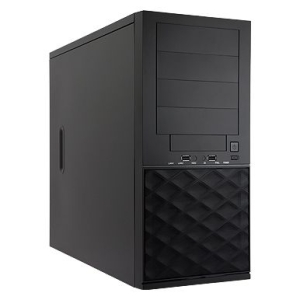

In-Win PE052 Pedestal Server Chassis - Black
  • ATX, Power Switch, System Reset, Audio, USB 2.0(2), Kensington Lock Supported

IMG 1 of 1
No Longer Available
Part Number:
411973
(?) Brand:
In-Win Web Site
Manuf No:
PE052-BLACK
PE052BLACK
Shipping Weight:
10 KG (Includes product packaging)
Estimate Shipping
Details Files Images & Video
All stock codes associated to this product
PE052BLACK, PE052-BLACK, 3005427

Overview

Pedestal Entry Server Chassis

  • Tool-free design for easy installation
  • Utilizes 5.25" drive bay x 4 with In Win storage kits
  • High density storage up to 3.5" x 11 HDD
  • Vibration-free HDD holder
  • For office internet front end application

Features

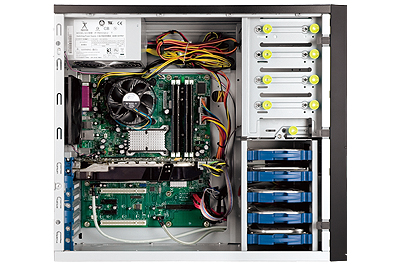

Inside View

Flexible 5.25" ODD cage for versatile storage configuration (Optional 2-in-3 or 3-in-4 storage kits)



3.5" SATA HDD Fixing Plate x 5 (Optional)

Vibration-free HDD holder

Supports 120 mm or 92 mm front fan x 1

Supports 120 mm rear fan x 1

Tool-free front panel

Tool-free ODD/FDD

Tool-free I/O slots

Optional railing system and rack ears

Specifications

M/B Form Factor

ATX (12" x 9.6"), CEB (12" x 10.5")

Dimensions (D x W x H) w/o Front Panel

465 x 200 x 430 mm

(18.3" x 7.9" x 16.9")

Drive Bay

External: 5.25" x 4, 3.5" x 1

Internal: 3.5" x 5 or 2.5" x 5

Power Supply

Supports PS/2 ATX12V, EPS12V

Front Control Panel

Power Switch, System Reset, Audio, USB 2.0 x 2

Chassis Security

Intrusion Switch, Padlock Loop, Kensington Lock Supported

Cooling Fan

Supports

 Front: 120 mm x 1 or 92 mm PWM x 1

 Rear: 120 mm PWM x 1

Expansion Slot

Full Height PCI Slot x 7

Packaging Dimensions (D x W x H)

493 x 262 x 588 mm

Shipping Information

Net Weight: 7.1 kg

Gross Weight: 8.3 kg

Cubic Feet: 3.7

Container Info

 Single Packing: 20': 448pcs, 40': 828pcs, 40H:950pcs

 Bulk Packing + Pallet: 20': 384pcs, 40': 768pcs, 40H:816pcs

No additional files, specification sheets, guides or documentation found for product.

Warranty: 12 Month Return To Base

Full manufacturers warranty details are available at the manufacturers (In-Win) web site.
