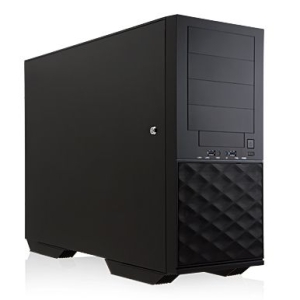

In-Win PL052 Pedestal Server Chassis - Black
  • NO PSU, Supports Extended ATX, External: 5.25"(4), 3.5"(1), Internal:3.5" or 2.5"(5), USB 3.0(2), Kensington Lock Supported

IMG 1 of 1
No Longer Available
Part Number:
411975
(?) Brand:
In-Win Web Site
Manuf No:
3005428
Shipping Weight:
10 KG (Includes product packaging)
Estimate Shipping
Details Files Images & Video
All stock codes associated to this product
PL052BLACK, PL052-BLACK, 3005428

Overview

Pedestal Long Version Server Chassis.

  • High density storage up to 3.5" or 2.5" hot swap drive bay x 11
  • Supports extended ATX (12" x 13") M/B
  • For general purpose storage server chassis
  • HBA Card Retainer supported
  • Platinum level high efficiency CRPS

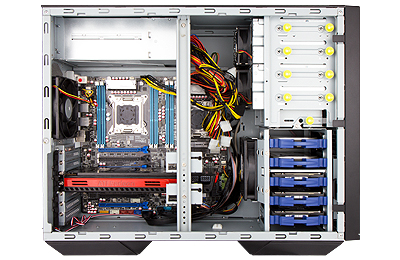

Inside View

Flexible 5.25" ODD cage for versatile storage configuration (Optional 2-in-3 or 3-in-4 storage kits)



12" x 13" server board

Supports PS2 or 2U 1+1 800W Platinum level CRPS



3.5" SATA HDD Fixing Plate x 5 (Optional)

Tool-free ODD/FDD

Supports 120 x 25 mm front fan x 1

Supports 120 x 25 mm middle fan x 2

Supports 80 mm x 2 or 120 mm x 1 rear fan



Card retainer to ensure that HBA cards are locked into position (Optional)

Specifications

M/B Form Factor

ATX (12" x 9.6"), CEB (12" x 10.5"), EEB(12" x 13")

Dimensions (D x W x H) w/o Front Panel

560 x 200 x 430 mm

(22" x 7.9" x 16.9")

Drive Bay

External: 5.25" x 4, 3.5" x 1

Internal: 3.5" or 2.5" x 5

Power Supply

Supports

PS2 or 2U 1+1 800W Platinum level CRPS

Indicator

Power status, HDD, LANs, System Fail Activity LEDs, ID

Front Control Panel

Power Switch, System Reset, USB 3.0 x 2

Chassis Security

Intrusion Switch, Padlock Loop, Kensington Lock Supported

Cooling Fan

Supports

Front: 120 x 25 mm x 1 PWM Fan

Middle: 120 x 25 mm x 2 PWM Fan

Rear: 80 mm x 2 or 120 mm x 1 PWM Fan

Expansion Slot

Full Height PCI Slot x 7

Others

Supports

Card Retainer

Easy-Swap Module for Internal HDD

Packaging Dimensions (D x W x H)

340 x 720 x 592 mm

Shipping Information

Net Weight: 10.75 kg

Gross Weight: 14.3 kg

No additional files, specification sheets, guides or documentation found for product.

Warranty: 12 Month Return To Base

Full manufacturers warranty details are available at the manufacturers (In-Win) web site.

Unless otherwise specified Techbuy is normally your first point of contact for warranty related returns, further information regarding our warranty policies and consumer guarantees is available on our policies and service & support pages.

To apply for return of a product just go to our returns page.

These terms are in addition to and do not affect any terms, conditions, guarantees and warranties implied by law.
