All stock codes associated to this product
DPGSH12RLMS120TRED, DP-GS-H12RL-MS120T-RED
Overview
The new vision of Maelstrom retains some key factors of others from Maelstrom
Series: long lifetime bearing, 0.2mm high-density water micro channel &
copper block, aluminum radiator, bionic LED breathing light on pump and 120PWM
fans, especially the assembled fan of Maelstrom 120T features RED LED. All of
these features have enabled Maelstrom 120T to have high performance, low noise,
long lifespan and an esthetic appearance.

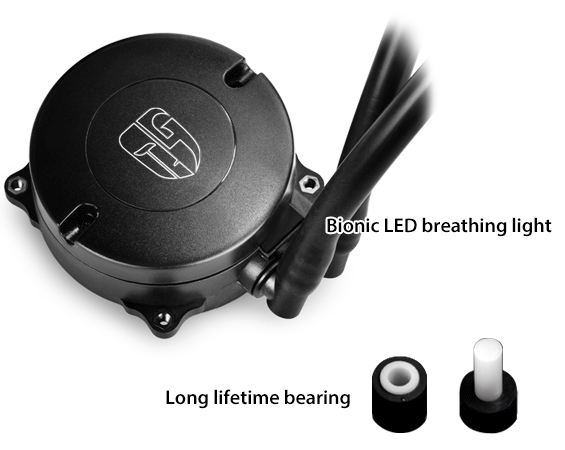

Long lifetime zirconia ceramic bearing to make 120,000 hours running
safely
Bionic LED breathing light lightening up while operating
High-quality EPDM rubber tube to offer a better liquid flow channel

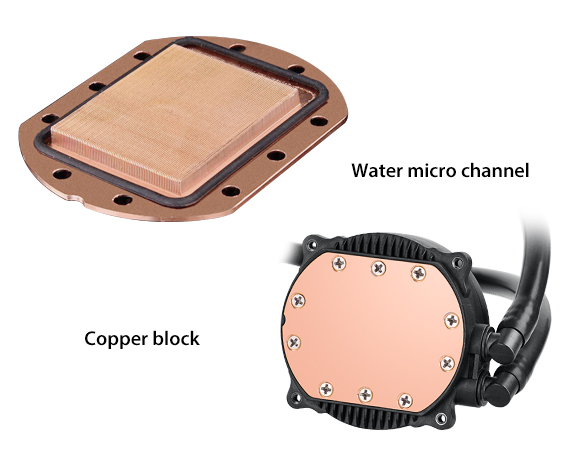

0.2mm high-density water micro channel & copper block to offer a highly
efficient thermal conduct

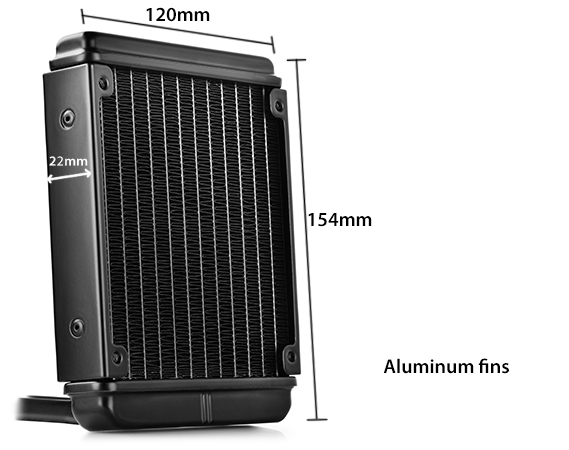

Aluminum fins design optimized for a lower fan
speed and noise, also the standard mounting holes built-in easy to change new
120mm fan

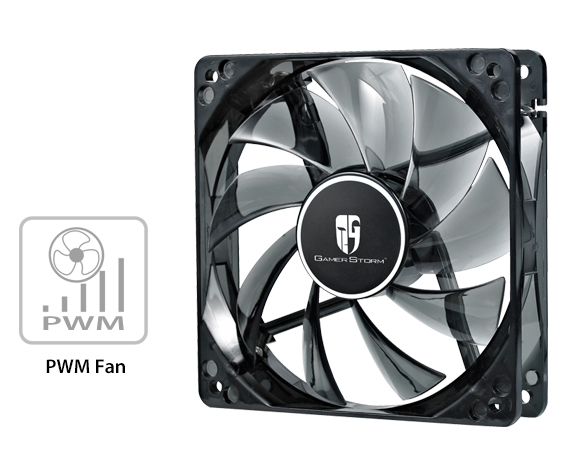

120mm PWM fan with RED LED LIGHT
Universal solution, easy to install
Features
High performance pump with silent
design to power the efficient liquid circulation. Long lifetime zirconia ceramic
bearing to make 120,000 hours running safely. Big size copper base to transfer
heat fastly . High-quality EPDM rubber tube to offer a better liquid flow
channel. 120mm22mm aluminium fins array optimized for a lower fan speed and
noise, also the standard mounting holes built-in easy to change new 120mm fan.
PWM function fan with RED LED light. Compatible with all sockets of Intel
&AMD processor, easy to install. Bionic LED breathing light lightening up
while operating.
Specifications
Application
For |
|
Intel Socket
150W |
AMD Socket
140W |
|
|
LGA2011-V3/LGA2011/LGA1366/LGA1156/LGA1155/LGA1151/LGA1150 |
FM2+/FM2/FM1/AM3+/AM3/AM2+/AM2 |
|
|
High End Desktop
i7 |
APU
A10/A8/A6/A4 |
Core i7
Extreme/i7/i5/i3 |
FX
8/6/4-Core |
Pentium
G |
Phenom II
X6/X4/X3/X2 |
Celeron
G |
Phenom
X4/X3/X2 |
|
Athlon II
X4/X3/X2 |
|
Athlon
X4/X2 |
|
Athlon |
|
Sempron |
|
Business
Class |
Fan
Dimensions |
Fan
Speed |
Fan Air
Flow |
Net
Weight |
120X120X25mm(1pcs) +PWM
+ RED LED |
600150-180010%RPM |
83.64CFM(MAX) |
757g |
Fan Air
Pressure |
Fan Life
Expectancy |
Fan Noise
Level |
Fan Bearing
Type |
3.08mmH2O(MAX) |
50000
hours |
17.834.1dB(A) |
Hydro
Bearing |
Fan
Connector |
Fan Rated
Voltage |
Fan Rated
Current |
Fan Power
Consumption |
4Pin |
12VDC |
0.2710%A(MAX) |
3.24W |
Main system
Dimensions |
Radiator
Dimensions |
Radiator
Material |
Pump Life
Expectancy |
70X85.6X31.5mm |
154X120X22mm |
Aluminum |
120000
hours |
Pump
Connector |
Pump Operating
Voltage |
Pump Rated
Voltage |
Pump Speed |
3Pin |
10.813.2VDC |
12VDC |
240010%RPM |
