Overview
The new vision of Maelstrom retains some key factors of others from Maelstrom
Series: long lifetime bearing, 0.2mm high-density water micro channel &
copper block, aluminum radiator, bionic LED breathing light on pump and 120PWM
fans, especially the assembled fan of Maelstrom 240T features blue LED. All of
these features have enabled Maelstrom 240T to have high performance, low noise,
long lifespan and an esthetic appearance

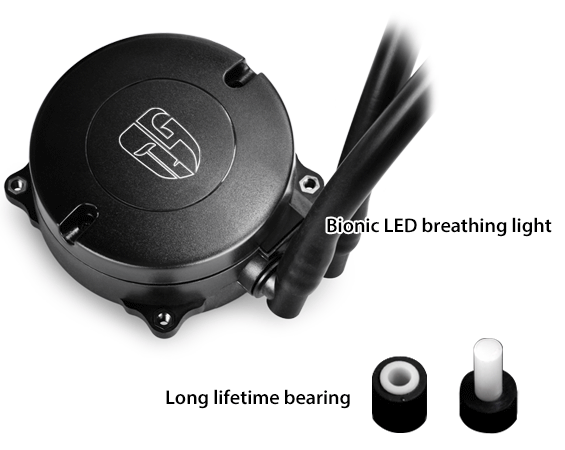

Long lifetime zirconia ceramic bearing to make 120,000 hours running
safely
Bionic LED breathing light lightening up while operating

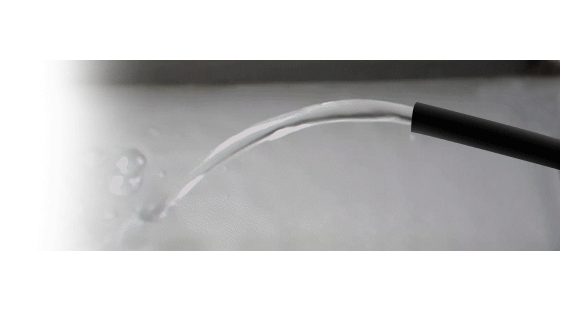

High-quality EPDM rubber tube to offer a better liquid flow channel

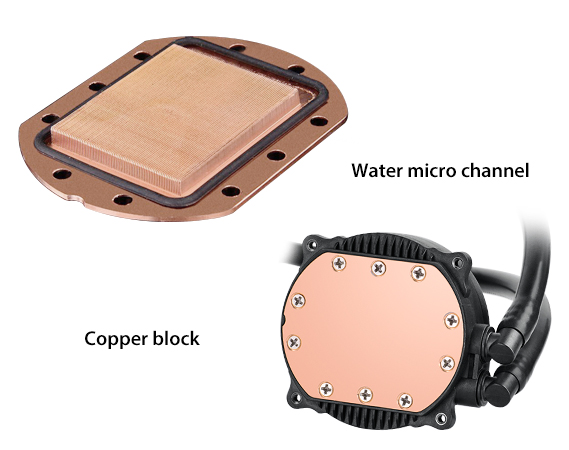

0.2mm high-density water micro channel & copper block to offer a highly
efficient thermal conduct

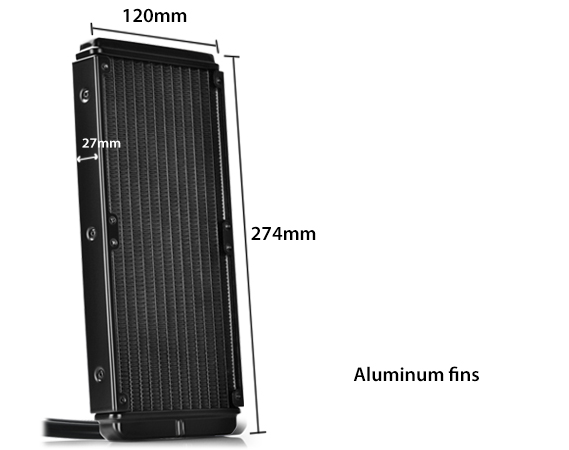

240mm aluminum fins array optimized for a lower fan speed and noise, also the
standard mounting holes built-in easy to change new 120mm fan

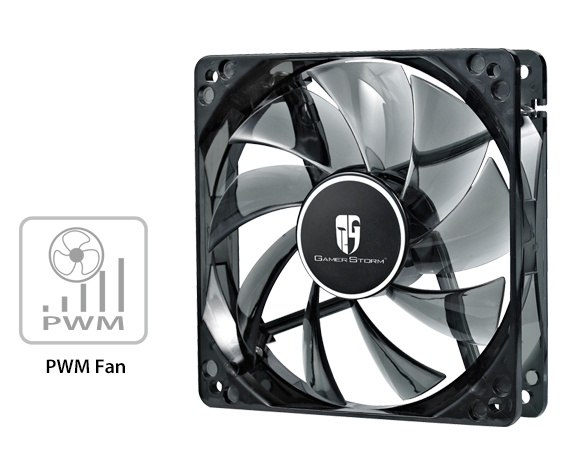

120mm PWM fan with blue LED LIGHT
Universal solution, easy to install
Features
- High performance pump with silent design to power the efficient liquid
circulation.
- Long lifetime zirconia ceramic bearing to make 120,000 hours running
safely.
- Big size copper base to transfer heat fastly.
- High-quality EPDM rubber tube to offer a better liquid flow channel.
- 240mm aluminium fins array optimized for a lower fan speed and noise, also
the standard mounting holes built-in easy to change new 120mm fan.
- PWM function fan with blue LED light.
- Compatible with all sockets of Intel &AMD processor, easy to install
- Bionic LED breathing light lightening up while operating.
Specifications
|
Application
For |
|
|
Intel Socket
150W |
AMD Socket
140W |
|
|
|
LGA2011-V3/LGA2011/LGA1366/LGA1156/LGA1155/LGA1151/LGA1150 |
FM2+/FM2/FM1/AM3+/AM3/AM2+/AM2 |
|
|
|
High End Desktop
i7 |
APU
A10/A8/A6/A4 |
|
Core i7
Extreme/i7/i5/i3 |
FX
8/6/4-Core |
|
Pentium
G |
Phenom II
X6/X4/X3/X2 |
|
Celeron
G |
Phenom
X4/X3/X2 |
|
Athlon II
X4/X3/X2 |
|
Athlon
X4/X2 |
|
Athlon |
|
Sempron |
|
Business
Class |
|
Fan
Dimensions |
Fan
Speed |
Fan Air
Flow |
Net
Weight |
|
120X120X25mm(2pcs) |
600200180010%RPM |
167.28CFM(MAX) |
110010g |
|
Fan Air
Pressure |
Fan Life
Expectancy |
Fan Noise
Level |
Fan Bearing
Type |
|
3.08mmH2O(MAX) |
50000
hours |
17.834.1dB(A) |
Hydro
Bearing |
|
Fan
Connector |
Fan Rated
Voltage |
Fan Rated
Current |
Fan Power
Consumption |
|
4Pin |
12VDC |
0.2710%A(MAX) |
3.24W |
|
Main system
Dimensions |
Radiator
Dimensions |
Radiator
Material |
Pump Life
Expectancy |
|
70X85.6X31.5mm |
274X120X27mm |
Aluminum |
120000
hours |
|
Pump
Connector |
Pump Operating
Voltage |
Pump Rated
Voltage |
Pump Speed |
|
3Pin |
10.813.2VDC |
12VDC |
240010%RPM |
|
Pump Load
Current |
|
|
|
|
0.210%A |
|
|
|
