All stock codes associated to this product
CAPTAIN360EX, CAPTAIN 360 EX, CFANCAPT360EX, CFAN-CAPT360EX, 6933412725831
Overview

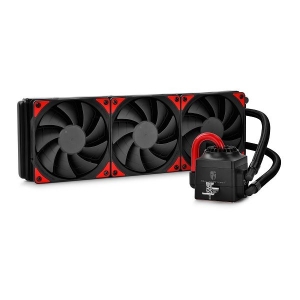

CAPTAIN EX Series has preserved most key features from the previous CAPTAIN
version : Styled with Steam Punk appearance, built with visible liquid flow and
LED lightening. In addition, CAPTAIN EX Series will bring you upgraded
anti-explosion rubber and high-density water micro-channel, unique silent TF 120
double-blade fan, as well as updated tooling free installation solution, which
will dramatically improve your heat dissipation experience, especially in terms
of stability, silence, efficiency and convenience.
Crazy Steam Punk Appearance
The unique reactor-style pump housing. Long lifetime ceramic bearing with
MTTF 120,000 hours. Updated tooling free installation solution, solid 100% metal
material clip.
Perfect Aesthetic Functionality
Classic black- red version offering an awesome sensation not only to your CPU
cooling but also your aesthetic demand.
High-Density Aluminum Fins
360mm aluminum fins array optimized for a lower fan speed and noise, also the
standard mounting holes built-in easy to change new 120mm fan.
New Upgrade, Final Choice
Unique silent TF 120 double-blade fan to offer a higher air pressure for
radiator, more efficient to take heat away.
Equipped With Multiple Clips To Support
Intel:LGA2011-v3/LGA2011/LGA1366/LGA1156/LGA1155/LGA1151/LGA1150
AMD:FM2+/FM2/FM1/AM3+/AM3/AM2+/AM2
- Upgraded high-density water microchannel with powerful self-governed
circulation system, 10% more efficient heat dissipation.
- Three-phase induction motor built-in the powerful closed impeller. The
stronger liquid flow &bigger delivery head.
- Upgraded anti-explosion rubber tube, anti-corrosion, crush resistance
& thermostable material.
Features
- Upgraded high-density water microchannel with powerful self-governed
circulation system, 10% more efficient heat dissipation.
- Amazing glass design &patented visual external-circulation system.
- Updated tooling free installation solution, solid 100% metal material
clip.
- Unique silent TF 120 double-blade fan to offer a higher air pressure for
radiator, more efficient to take heat away.
- Upgraded anti-explosion rubber tube, anti-corrosion, crush
resistance&Thermostable material.
- Three-phase induction motor built-in the powerful closed impeller, the
stronger liquid flow & bigger delivery head.
- Long lifetime ceramic bearing with MTBF 120,000 hours.
- Crazy steam punk appearance &the unique reactor-style pump housing.
- Bionic red LED breathing light lightening up while operating.
Specifications
Application For
Intel Socket 150W
LGA-2011-V3/LGA2011/LGA1366/LGA1156/LGA1155/LGA1151/LGA1150
- High End Desktop i7
- Core i7 Extreme/i7/i5/i3
- Pentium G
- Celeron G
AMD Socket 220W
- FM2+/FM2/FM1/AM3+/AM3/AM2+/AM2
- APU A10/A8/A6/A4
- FX 8/6/4-Core
- Phenom II X6/X4/X3/X2
- Phenom X4/X3/X2
- Athlon II X4/X3/X2
- Athlon X4/X2
- Athlon
- Sempron
- Business Class
|
Fan
Dimensions |
120X120X25mm(3PCS) |
|
Net
Weight |
169310g |
|
Fan
Speed |
500200-180010%RPM |
|
Fan Air
Flow |
229.56CFMMAX |
|
Fan Air
Pressure |
3.31mmH2O(MAX) |
|
Fan Life
Expectancy |
50000
hours |
|
Fan Noise
Level |
17.6~31.3dB(A) |
|
Fan Bearing
Type |
Hydro
Bearing |
|
Fan
Connector |
4Pin |
|
Fan Rated
Voltage |
12VDC |
|
Fan Rated
Current |
0.1210%A(MAX) |
|
Fan Power
Consumption |
1.44W |
|
Main system
Dimensions |
92.5X93X85mm |
|
Radiator
Dimensions |
395X120X32mm |
|
Radiator
Material |
Aluminum |
|
Pump Life
Expectancy |
120000
hours |
|
Pump
Connector |
3Pin |
|
Pump Operating
Voltage |
6~13.8VDC |
|
Pump Rated
Voltage |
12VDC |
|
Pump
Speed |
220010%RPM |
|
Pump
Current |
0.1615%A |
|
Pump Power
Consumption |
1.92W |

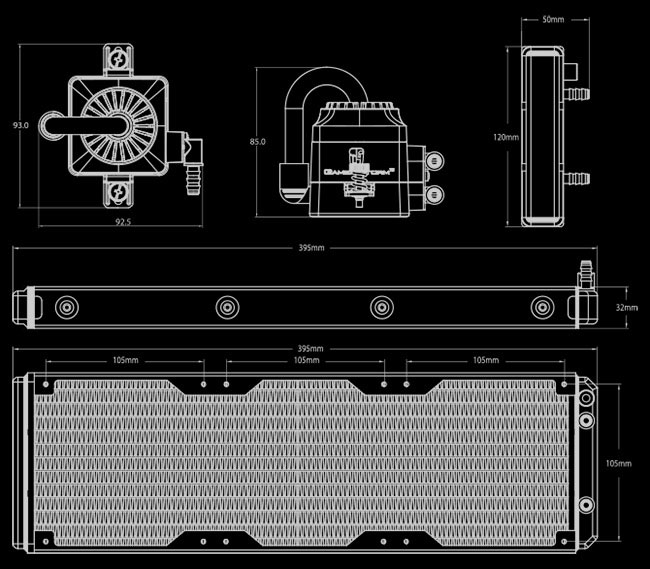

Product Dimension
