No Longer Available

Part Number:
412185
(?) Brand:
Manuf No:
AER-SYCLONE-II-BK
AERSYCLONEIIBK
Shipping Weight:
8 KG (Includes product packaging)
Estimate Shipping
All stock codes associated to this product
AERSYCLONEIIBK, AER-SYCLONE-II-BK

Overview

Features

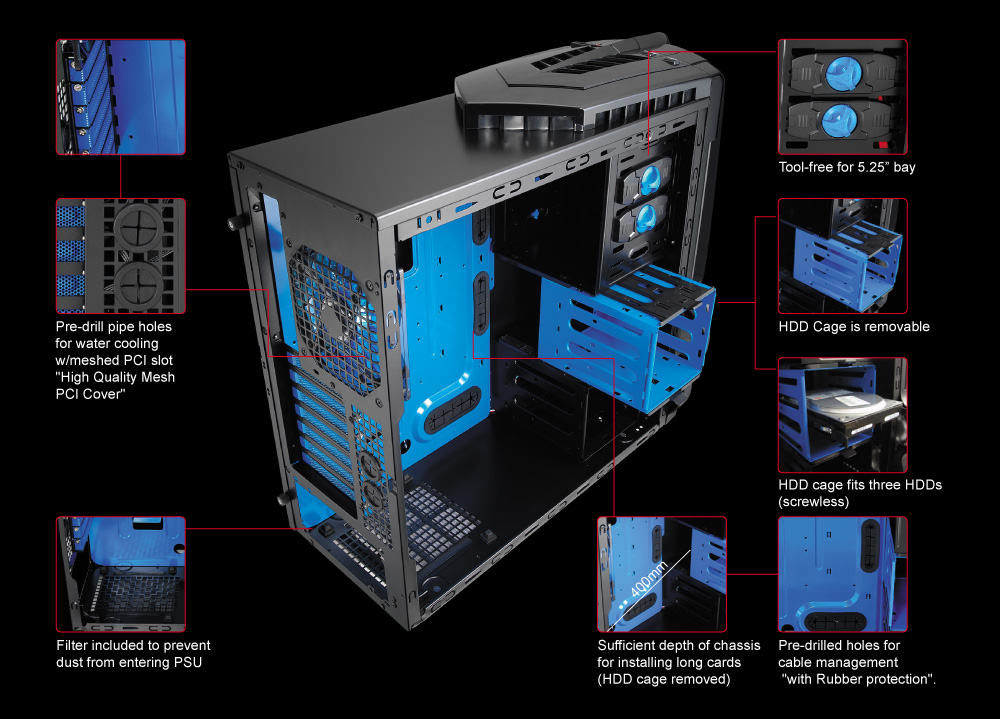

  • High Performance "Mid-Tower" for gamers and enthusiasts.
  • Solidly constructed- The chassis is solidly constructed by 0.6mm SECC Japanese steel .
  • Unique and Attractive Internal Color Combination- Not only the chassis is beautifully finished in All Black (both interior and exterior), the PCI covers, MB Plate, Removable HDD cage and screw-less kits are high-lighted in Blue (Syclone II Black) or Red (Syclone II Red) colors to make the case UNIQUE and stands out from the others.
  • High-End Graphic Card Support (up to 400mm)- Supports Longer high-end VGA cards up to 280mm. The Middle HDD Cage is removable Once the middle HDD cage is removed the chassis can support VGA cards up to 400mm.
  • High Expandability- Supports 4 x 5.25" external devices, 6 x 3.5" HDDs (internal) and 1 x 3.5" external device (with the converter) such as a Floppy drive or a Card Reader.
  • Ease of Installation- New "Easy-Install" screw-less kits are included for the 5.25" devices and HDDs. The HDD cage is also rotated 90 degrees for easy installation of HDDs.
  • Easy Access Top I/O Ports- 2 x USB3.0, Audio/Mic (AC 97 + HD audio) and E-SATA ports are located on the top panel for easy access.
  • Smart Cable Management- "Cable routing is pre-drilled on the MB so users can hide cables behind the MB tray. The pre-drilledholes are also protected by top quality rubber to prevent cuts or damages to the cable from sharp edges".
  • Dust Protection- Includes removable bottom PSU dust filters to prevent dust entering your computer.
  • Mesh PCI cover- Includes Blue (Syclone II Black) or Red Metal Mesh PCI covers (Syclone II Red) for better ventilation.
  • Bottom PSU position- the bottom PSU location enables PSUs to suck in cold air and provide better air flow for your system.
  • Water-cooling Support- water-cooling holes are pre-drilled to support water-cooling systems.
  • Easy Cooler Assembly- CPU hole is pre-drilled on the MB plate for simple cooler assembly and removable.
  • Transparent Side Window with the option to install 1 x 12cm or 14cm fans !!

INSIDE

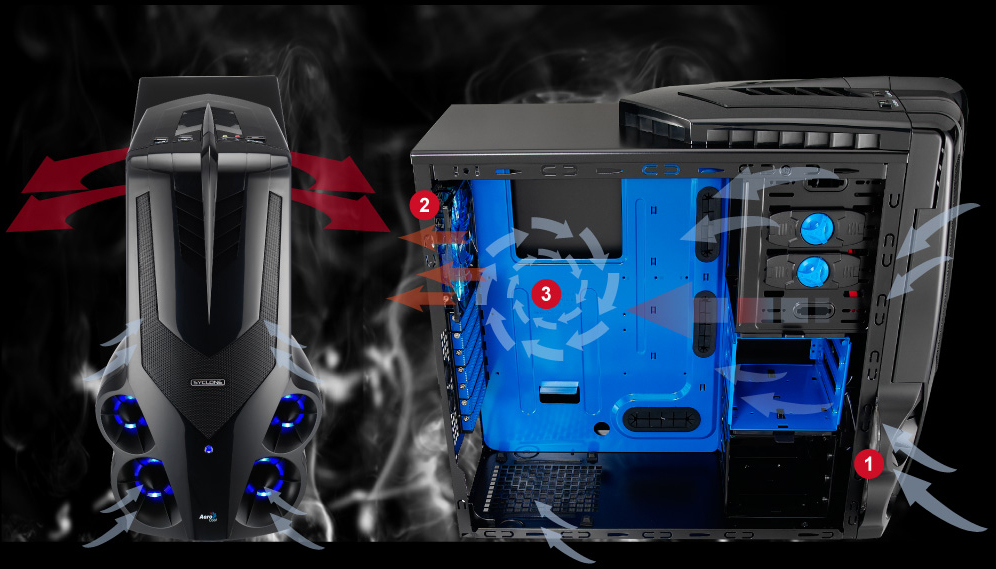

AIRFLOW

Superb Airflow - install up to 3 fans !!!

1. Front - 1 x 14cm fan (included)

2. Back - 1 x 12cm BLUE LED fan (included)

3. Side - 1 x 12 or 14 cm fan (optional)

Specifications

Case Type

Middle Tower

Chassis Dimensions

480 mm(H) x 270 mm(W) x 525 mm(D)

Carton Dimension

515 mm(H) x 312 mm(W) x 578 mm(D)

Net Weight

6.88Kg

Gross Weight

8.8Kg (Retail box included)

Material

SECC 0.6mm

Motherboards

ATX / Micro-ATX

Drive Bays

Accessible -

4x5.25" ODD

1x3.5" (Converted from one 5.25" bay)

Hidden -

6x3.5" HDD

Expansion Slots

7 Slots

Max length space available for PCI slots

280/400 mm

I/O Ports

2 x USB3.0 / e-SATA / Mic & headphone (AC97 & HD audio)

Height limit for CPU coolers ( Without side fan )

158mm

Inside this packaging

4pcs for PSU Screw / 17pcs for M/B & 3.5"HDD Screw / 20pcs for ODD & FDD & 2.5"HDD Screw / 1 pcs for M/B & 3.5"HDD Screw / 9Set for M/B / 6Set for M/B

Front

Rear (Quad Blue LED's)

Fan

140 x 140 x 25mm

120 x 120 x 25mm

Rated voltage

12V

12V

Starting voltage

< = 6V

< = 9V

Power consumption

4.32W

3.6W

Rated current

0.36A

0.30A

Speed

1500 RPM 10%

1500 RPM 10%

Air Flow (CFM)

96.5 CFM (Max)

82.6 CFM (Max)

Air pressure

1.069mm H2O

1.273mm H2O

Noise (dBA)

29.6 dB-A

26.5 dB-A

MTBF

100000 hours

100000 hours

No additional files, specification sheets, guides or documentation found for product.

Warranty: 12 Month Return To Base

Full manufacturers warranty details are available at the manufacturers (AeroCool) web site.

Unless otherwise specified Techbuy is normally your first point of contact for warranty related returns, further information regarding our warranty policies and consumer guarantees is available on our policies and service & support pages.

To apply for return of a product just go to our returns page.

These terms are in addition to and do not affect any terms, conditions, guarantees and warranties implied by law.
