All stock codes associated to this product
C31CE14559, 3373400
Overview

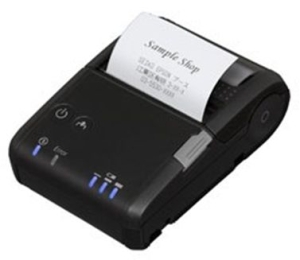

Epsons TM- P20 is an ultra-compact 2" receipt printer that weighs only 228g
and fits in the palm of your hand. It delivers all the features you need to
print anywhere, anytime. Featuring Epsons ePOS-Print technology, it can print
directly from compatible POS applications with any mobile devices running an
iOS, Android or Windows operating system.
Features
- Compatible with iOS, Android and Windows mobile devices
- Ultra compact and lightweight
- Best-in-class operational battery life for ultra-compact printers of up to
8 hours
- Highest printing speed in its class of up to 100mm/second
- Easy setting with TM-Printer Utility
- Fast NFC pairing technology
- Supports 802.11a/b/g/n with 2.4GHz/5GHz compatibility and
Bluetooth 3.0 (EDR supported)
- 6.5’ drop rating; IP54 ready with padded case
- Paper-saving options up to 23%
Software Development Kit Available
Epson now has Software Development Kits available for the creation of POS
printer applications for iOS, Android and Windows devices.
Great features for mobile printing
Tough and robust, it offers the fastest printing in its class with speeds up
to 100mm/second, an industry-leading battery life, flexible connectivity and a
ruggedized design to ensure reliability in even the harshest environments.
Best-in-class battery life
To ensure uninterrupted service to your customers, Epsons TM-P20 features an
industry-leading operational battery life of up to 6 hours with WiFi models and
up to 8 hours with Bluetooth models.
Multi-platform printing made easy
With Epsons unique ePOS-Print technology, the TM-P20 can print from any
devices running an iOS, Android or Windows operating system with a WiFi or
Bluetooth connection, using a HTML5 browser or native application. This provides
an easy and smart solution for todays mobile printing requirements.
Compatible and ready to go
The TM-P20 printer is compatible with todays best-of-breed POS systems and
the latest industry-standard wireless security protocols. The printer supports
802.11a/b/g/n with 2.4GHz/5GHz compatibility or Bluetooth3.0
(EDR supported). It also comes complete with ESC/POS,
OPOS, JavaPOS and Windowsdrivers
which means your current POS software and applications are instantly
compatible.
Backed by the leader
The TM-P20 is backed by Epsons industry-leading service and support programs
and comes with a two-year warranty.
Specifications
|
Model
Name |
TM-P20 |
|
Print
Method |
Thermal line
printing |
|
Print
Font |
Font A 12 x 24, Font B
9 x 24, Font C 9 x 17, Font D 10 x 24, Font E 8 x 16 |
|
Column Capacity
(columns) |
58mm paper, Font
A/B/C/D/E, 32/42/42/38/48 columns |
|
Character Size
(mm) |
1.5 x 3.0 / 1.12 x 3.0
/ 1.12 x 2.1/ 1.25 x 3 / 1.0 x 2mm (W x H) |
|
Character
Set |
95 Alphanumeric, 18
International, 128 43 Graphic |
|
UPC-A, UPC-E,
JAN8/EAN8, JAN13/EAN13, ITF (Interleaved 2 of 5), Codabar (NW-7), Code 39,
Code 93, Code 128, GS1-128 (UCC/EAN-128), GS1 DataBar Omnidirectional, GS1
DataBar Truncated, GS1 DataBar Limited, GS1 DataBar Expanded, 2D symbol,
PDF417, Datamatrix, QR Code, Maxi Code, Composite
Aztec |
|
Character Per
Inch |
32/42/38/48
cpi |
|
Print Speed
(max.) |
Receipt mode
100mm/sec |
|
Resolution |
203 DPI x 203
DPI |
|
Paper width
(mm) |
58mm
width |
|
Paper Diameter
(max.) |
40.4mm |
|
Reliability |
10 million printing
lines |
|
Interfaces |
802.11b/g/n (2.4GHz)
and 802.11a/n (5GHz) or Bluetooth 3.0 (EDR supported) |
|
Supported Mobile
Operating Systems |
iOS, Android and
Windows (Security Level WEP, WPA, WPA2-Enterprise) |
|
Cutter |
Manual |
|
Audible
alert |
Programmable
buzzer |
|
Sensors |
Paper end, cover open,
BM sensor |
|
LED
Indicators |
Battery charge level,
power status, error condition |
|
Software |
TM-P20 Utility,
EpsonNet Config, EpsonNet Simple Viewer, TM-P20 Remote Configuration Tool,
TM Bluetooth Connector, Built-In Configuration Page |
|
Power |
Custom Lithium-Ion
battery pack, AC adapter C |
|
Battery
Life |
Up to 6 hours with
WiFi, up to 8 hours with Bluetooth model |
|
Operating
Temperature |
10 to 50 C Bluetooth
model |
|
0 to 50 C WiFi
Model |
|
Drop
rating |
6.54 feet
(2m) |
|
Overall Dimensions
(W x D x H) |
79.0 x 119.8 x 43
mm |
|
Weight
(Approx) |
Receipt version: 228g
with battery |
|
Colour |
Epson Black
(EBCK) |
|
What's in the
box |
P20, Battery, Printer
charger, AC-adapter -Type C, AC cable, USB cable, Belt clip, Roll paper
(for checking initial movement of printer), CR-ROM, Set-up
guide |
|
Warranty |
Standard two year RTB
warranty |
|
Option |
Battery (OT-BY20),
Battery Spacer (OT-BS20), Charger/Cradle (OT-SC20), Padded Case
(OT-PC20) |
