All stock codes associated to this product
AERLS5200WH, AER-LS5200-WH

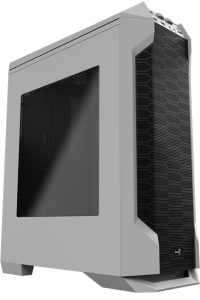

Overview
FAN SPEED CONTROL
Built-in two fan controller switches. 2 x USB2.0 + 1 x USB3.0 + HD Audio
& Mic + Power button.
ULTRA-AIR COOLING
Huge air intake from the front panel .
Superb airflow system install up to 6 fans !
DUAL WATER-COOLING
Supports either 280mm or 360mm water cooling system on front panel.
Supports either 240mm or 280mm water cooling system on top panel.
SPACIOUS INTERIOR
Install either 4 x 2.5" HDD/SSD and 3 x 3.5" HDD on side space.
Specifications
|
Model
Name |
LS-5200 |
|
Case
Type |
Mid Tower for water
cooling |
|
Steel
Thickness |
0.6mm |
|
Motherboards |
ATX / micro ATX /
mini-ITX |
|
Chassis
Dimensions |
220 x 460 x 376.5 mm (W
x H x D) |
|
3.5"Drive
Bays |
3 + 2 (2.5/3.5 HDD
Cage) |
|
2.5"Drive
Bays |
2 + 4 (2.5/3.5 HDD
Cage) |
|
Expansion
Slots |
7
Slots |
|
Max length space
available for PCI slots |
346 mm / 371mm (without
front fan) |
|
I/O
Ports |
2 x USB2.0 + 1 x USB3.0
+ HD Audio & Mic. |
|
Height limit for CPU
coolers |
Support Max. Height of
170 mm For CPU |
|
Cooling
System |
Front : 3 x 120mm or 2
x 140mm (Optional) |
|
Top: 2 x 120mm or 2 x
140mm (Optional) |
|
Rear : 1 x 120mm or 1 x
140mm fan (120mm Included) |
|
Radiator
Support |
Front : 3 x 120mm or 2
x 140mm (Optional) |
|
Top: 2 x 120mm or 2 x
140mm (Optional) |
|
Rear : 1 x 120mm
(Optional) |
|
Net
Weight |
5.5Kg
(GW:6.5Kg) |
|
Power
Supply |
ATX PSU
(Optional) |
|
EAN
Code |
4713105958324 -
White |
|
|
|
COOLING
SYSTEM |
|
|
LS-5200 |
[ Rear
] |
|
Black
Edition |
|
|
|
|
Fan |
120 x 120 x 25
mm |
|
Rated
voltage |
12V |
|
Operating Voltage
Range |
6.0~13.2V |
|
Starting
voltage |
6V |
|
Rated
current |
0.12A+-10%Max |
|
Power
consumption |
1.44W+10%Max |
|
Speed |
1200+-10%RPM |
|
Max
AirFlow(CFM) |
36.4CFM |
|
Max Static
Pressure |
1.32mm-H2O |
|
Noise
(dBA) |
26.5dBA |
|
MTBF |
20,000
hours |
