CE750
Overview

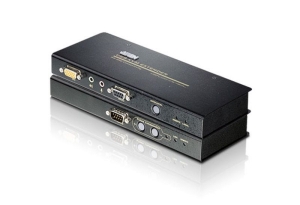

The CE750 is a USB based KVM Extender with automatic signal compensation and
RS-232 serial functionality that allows access to a computer system from a
remote USB console (USB keyboard, monitor, and USB mouse).
Because it allows access to a computer system from a remote console, the
CE750 is perfect for use in any type of installation where you need to place the
console where it is conveniently accessible, but you want the system equipment
to reside in a safe location ?away from the dust and dirt of the factory floor,
or the harsh environmental influence of a construction site, for example.
The CE750 improves on previous designs by the addition of an RS-232 port, on
both the Local and Remote Units, that allows you to connect to a serial terminal
for configuration (Local Unit), or serial devices such as touchscreens and
barcode scanners (Remote Unit).
Features
| Local and
Remote Units connect at distances up to 200 m using Cat 5e cable |
| Dual
console operation - control your system from both the local and remote USB
keyboard, monitor, and mouse consoles |
| Built-in
ASIC for greater reliability and compatibility |
| USB
Keyboard and USB Mouse Ports |
| RS-232
serial ports - allows you to connect to a serial terminal for configuration
(Local Unit), or serial devices such as touchscreens and barcode scanners
(Remote Unit) |
| Supports
stereo speakers and stereo microphone |
| USB
overcurrent detection and prevention |
| Pushbutton
operating mode selection (Local Unit only) -select between Local and Auto
operating modes. |
| Built-in
8KV/15KV ESD protection (Contact voltage 8KV; Air voltage 15KV) and 2KV surge
protection |
| Adjustable
gain control - automatically and manually adjusts signal strength to
compensate for distance |
| High
resolution video - up to 1920 x 1200 @ 60 Hz (30m),1600 x 1200 @ 60 Hz
(150m),1280 x 1024 @ 60 Hz (200m) |
| Supports
Wide Screen formats * |
| Supports
VGA, SVGA, SXGA (1280 x 1024) and UXGA (1600 x 1200) and multisync monitors;
local monitor supports DDC; DDC2; DDC2B |
| Hot
pluggable |
| Rack
mountable |
| Easy to
install - no software required - connecting cables to the devices is all it
takes |
| Multiplatform support - Windows, Linux, FreeBSD |
* The EDID data for a widescreen is sent from the local video output port.
For widescreen modes and displays connect the monitor to the local video output
port or use an ATEN EDID emulator.

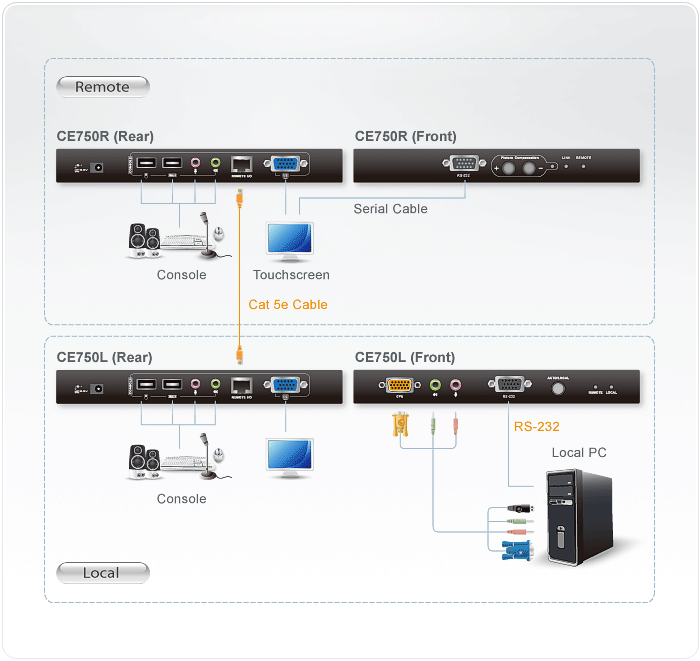

Diagram
Specifications
|
Function |
CE750L |
CE750R |
|
|
|
|
Connectors |
|
Console
Ports |
2 x USB Type A Female
(White) |
2 x USB Type A Female
(White) |
|
1 x HDB-15 Female
(Blue) |
1 x HDB-15 Female
(Blue) |
|
1 x Mini Stereo Jack
Female (Green) |
1 x Mini Stereo Jack
Female (Green) |
|
1 x Mini Stereo Jack
Female (Pink) |
1 x Mini Stereo Jack
Female (Pink) |
|
1 x DB-9 Female
(Black) |
1 x DB-9 Male
(Black) |
|
1 x RJ-45
Female |
1 x RJ-45
Female |
|
1 x DC
Jack |
1 x DC
Jack |
|
KVM
Ports |
1 x SPHD-15 Female
(Yellow) |
N/A |
|
1 x Mini Stereo Jack
Female (Green) |
|
1 x Mini Stereo Jack
Female (Pink) |
|
|
|
|
LEDs |
|
Local |
1
(Green) |
N/A |
|
Remote |
1
(Green) |
1
(Green) |
|
Link |
N/A |
1
(Green) |
|
Compensation |
N/A |
1
(Orange) |
|
|
|
|
Pushbuttons |
|
Operating Mode
Selection |
1 x
Pushbutton |
N/A |
|
Compensation |
N/A |
2 x
Pushbuttons |
|
|
|
|
Emulation |
|
Keyboard /
Mouse |
USB |
USB |
|
|
|
|
|
|
|
|
|
|
Video |
1920x1200@60Hz at
30m; |
1920x1200@60Hz at
30m; |
|
1600x1200@60Hz at
150m; |
1600x1200@60Hz at
150m; |
|
1280x1024@60Hz at
200m |
1280x1024@60Hz at
200m |
|
|
|
|
Power
Consumption |
DC5.3V/3.0W |
DC5.3V/4.2W |
|
|
|
|
Environmental |
|
Operating
Temperature |
0-50C |
0-50C |
|
Storage
Temperature |
-20-60C |
-20-60C |
|
Humidity |
0-80% RH,
Non-condensing |
0-80% RH,
Non-condensing |
|
|
|
|
Physical
Properties |
|
Housing |
Metal |
Metal |
|
Weight |
0.50 kg ( 1.1 lb
) |
0.50 kg ( 1.1 lb
) |
|
Dimensions (L x W x
H) |
20.20 x 8.63 x 2.63
cm |
20.20 x 8.63 x 2.63
cm |
|
(7.95 x 3.4 x 1.04
in.) |
(7.95 x 3.4 x 1.04
in.) |
