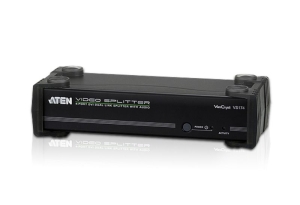

The VS174 4-Port DVI Dual Link Splitter with Audio combines DVI quality video
and audio, taking signals from an audio/ video source and replicating them to
four audio/video outputs. This video splitter uses dual link technology, which
offers high bandwidth capacity for added transmission power and faster refresh
rates, thereby providing better video quality of viewing resolutions up to 2560
x 1600.
The built-in bi-directional RS-232 port on the rear panel allows the splitter
to be controlled through a Control Unit, PC, and/or home automation/home theater
software package for complete system integration.
The VS174 is easy to operate and can be cascaded to three levels, handling up
to 64 monitors, which makes them the ideal solution for situations such as:
a)Broadcasting video information to the public (news headlines,stock prices,
airline and train schedules, etc.)
b)Company
training facilities
c)Classroom
instruction
Features
| Displays
DVI audio/video to multiple DVI-compatible monitors or projectors |
| Superior
video quality - up to 2560 x 1600 @ 60 Hz including 2K-resolution (2048 x 2048
@ 60 Hz) |
| Cascadable
to 3 levels provides up to 64 video signals |
| Audio
enabled |
| Features
RS-232 serial port for command controls |
| RS-232
Chain Control use RS-232 commands to control cascaded devices via a DVI
Cable |
| EDID Expert
selects the optimum EDID settings via RS-232 |
Note:
* The VS174 AP and GUI operation instructions can be downloaded from the ATEN
website (www.aten.com)
** HDCP is not supported

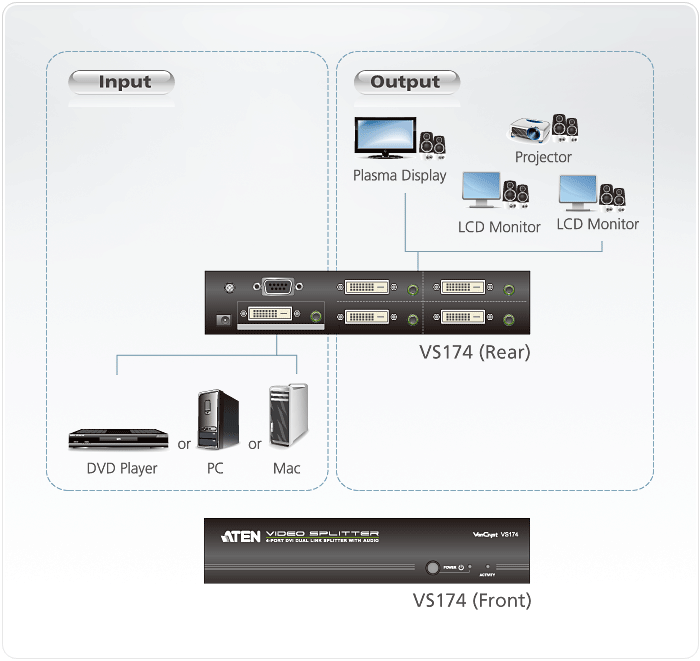

Diagram
Specifications
|
Video
Input |
|
Interfaces |
1
x DVI-D Female (White) |
|
Impedance |
100
|
|
Max.
Distance |
1.8
m |
|
|
|
Video
Output |
|
Interfaces |
4
x DVI-D Female (White) |
|
Impedance |
100
|
|
|
|
Video |
|
Max.
Data Rate |
13.5
Gbps (2.25 Gbps Per Lane) |
|
Max.
Pixel Clock |
225
MHz |
|
Max.
Resolution |
Up
to 2560 x 1600 |
|
Max.
Distance |
Up
to 5 m |
|
|
|
Audio |
|
Input |
1
x Mini Stereo Jack Female (Green) |
|
Output |
4
x Mini Stereo Jack Female (Green) |
|
|
|
Control |
|
RS-232 |
Connector:
1 x DB-9 Female (Black) |
|
Baud
rate and protocol: |
|
Baud
Rate: 19200, Data Bits: 8, Stop Bits:1, Parity: No, Flow Control:
No |
|
|
|
EDID
Settings |
EDID
Mode: Default / Port 1 / Auto |
|
|
|
Power |
|
Connectors |
1
x DC Jack |
|
Consumption |
5.3
VDC, 5.6W |
|
|
|
Environmental |
|
Operating
Temperature |
0-50C |
|
Storage
Temperature |
-20
- 60C |
|
Humidity |
0
- 80% RH, Non-Condensing |
|
|
|
Physical
Properties |
|
Housing |
Metal |
|
Weight |
0.73
kg ( 1.61 lb ) |
|
Dimensions
(L x W x H) |
21.00
x 8.80 x 5.55 cm |
|
(8.27
x 3.46 x 2.19 in.) |
|
|
|
Carton
Lot |
5
pcs |
