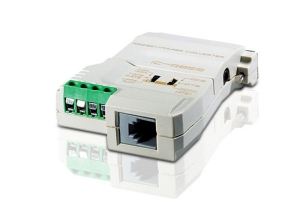

ATEN IC485S RS-232/RS-485 Interface Converter
  • 1x DB-25 Female (RS-232), RS-485 / RS-422 Four Terminal Block, 1x RJ-11 Female, 1200m (4000 ft` Max) Signal Range

IMG 1 of 1
No Longer Available
Part Number:
412703
(?) Brand:
ATEN
Manuf No:
IC485S
Shipping Weight:
0.5 KG (Includes product packaging)
Estimate Shipping
Details Files Images & Video
All stock codes associated to this product
IC485S, IDAIC485S, IDA-IC-485S, 4710423772120

Overview



IC485S is a 2-way converter for converting RS-232 signals to and from RS-422/RS-485 signals in long-distance application up to 1200m (4000 ft.). It supports the connection of up to 32 hubs.

ROHS Weee

Features

  • Data transmission controlled by the RTS signal.
  • DCE/DTE selectable.
  • Point to point, multidrop, and simplex/duplex link selection.
  • Four wire full duplex; two wire half duplex.
  • Compact size.
  • Cable distance of up to 1200m (4000 ft.).
  • Monitor configuration support.
  • Supports baud rates up to 115.2kbps.
  • OS Support: Windows 2000, Windows XP

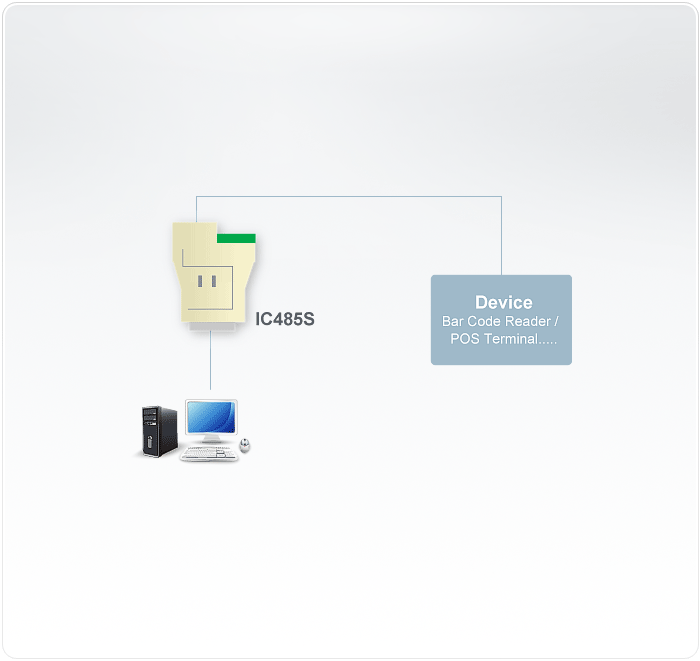

Diagram

Specifications

Connectors

1 DB-25 Female (RS-232)

RS-485 / RS-422 Four Terminal Block

1x RJ-11 Female

Switches

DCE, DTE, Monitor

TxON, RxON

TxRTS, RxRTS

TxRTS, RxON

Power Consumption

DC9V, 1.35W (Max)

Signal Range

1200 m [4000'] (Max)

Data Rate

Up to 100 Kbps under 1200 m [4000']

Environmental

Operating Temperature

0 ~50C

Storage Temperature

-20 ~ 60C

Humidity

0~80% RH, Non-condensing

Physical Properties

Housing

Plastic

Weight

0.05 kg ( 0.11 lb )

Dimensions (L x W x H)

7.90 x 5.45 x 2.10 cm

(3.11 x 2.15 x 0.83 in.)

 Package Contents

  • 1x Bi-directional Converter
  • 1x Power Adapter
  • 1x User Instructions
