ADM2SF8643
Overview
This M2 SFF-8643 converter turns the connector for a M2 PCIe SSD into a
36-pin SFF-8643 connector. This allows connecting the high performance 2.5" NVMe
U.2 (SFF-8639) SSD to system via a SFF-8643 cable. It is a simple and economical
solution for system that already has the M2 PCIe SSD sockets on board or on one
of Addonics M2 PCIe SSD adapter.

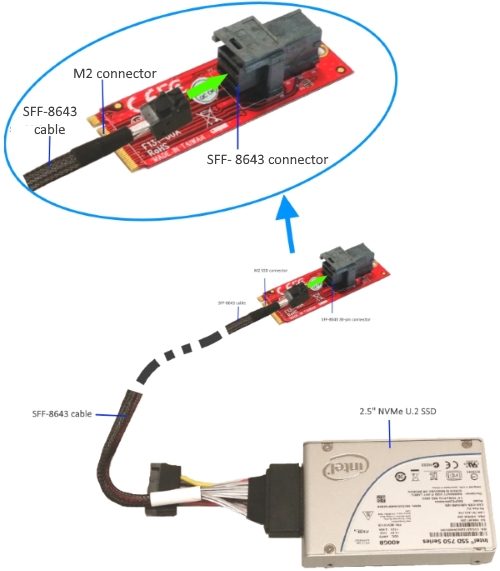

Illustration of connecting a 2.5" NVMe U.2 SSD to this adapter via a SFF-8643
cable.
Note: The 2.5" NVMe U.2 SSD and the SFF-8643 cable shown above are for
illustration purpose and are not part of this converter.

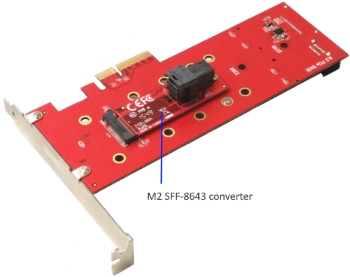

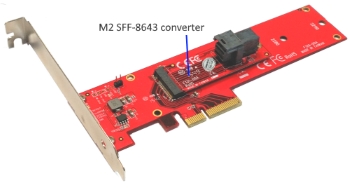

Following diagrams illustrate the installation of the M2 SFF-8643
converter onto various Addonics M2 PCIe SSD addatpers
Features
- Convert M2 PCIe SSD
connection* to SFF-8643 connection
- Connect 2.5" NVMe U.2
(SFF-8639) SSD to M2 connector via SFF-8643 cable
- No drivers required for
this converter
- OS requirement for NVMe
SSD:Windows 10, Windows 7 and Windows server 2008 R2
- Windows 10 - no driver
required
- Windows 7 and Windows
Server 2008 R2 require following update from Microsoftâ„¢
(https://support.microsoft.com/en-us/kb/2990941)
- All other OS, please see
more information at the following web page
https://en.wikipedia.org/wiki/NVM_Express
M2 PCIe SSD and M2 SATA SSD
use the same type of connectors. The adapter is designed to work on only on M2
connectors that are designed for M2 PCIe SSD
Note:
NVMe SSD
installation:
- BIOS in some older
system may not support NVMe Express. System with UEFI BIOS may be required.
Please verify with your system manufacturer to confirm the support of NVMe
Express in the PCIe slot.
- Software driver is
required for installing 2.5" NVMe U.2 SSD. You may contact the SSD
manufacturer web site to download the necessary driver for your
OS
Specifications
- Connectors on board
- M2 SSD connector
- SFF-8643 connector
- Dimension (L x W x H): ~ 63 x 22 x 16 mm. (2.48 x 0.87 x 0.63 in.)
- Weight: ~ 8 gm (0.28 oz.)
- Operating temperature / relative humidity: - 40 °C - 80 °C / 5 - 95% RH
(non-condensing)
- Storage temperature / Relative humidity: - 40 °C - 85 °C / 0 - 90% RH
(non-condensing)
- RoHS compliant
Contents
Adapter for converting the M2 PCIe SSD connector to SFF-8643 connector
