Overview

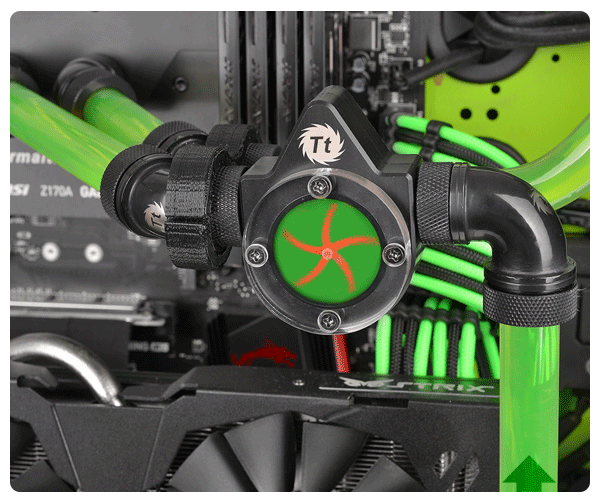

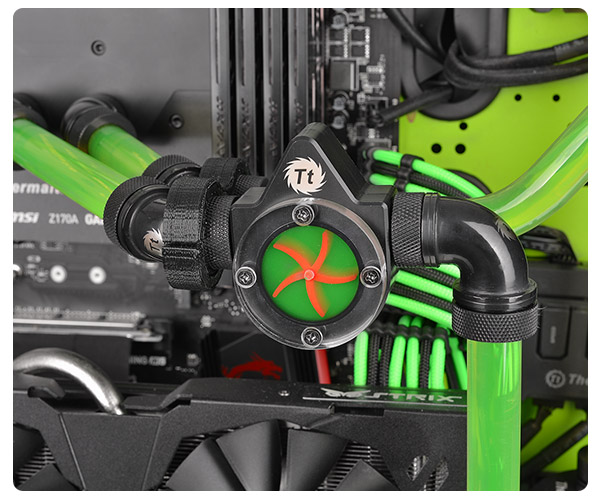

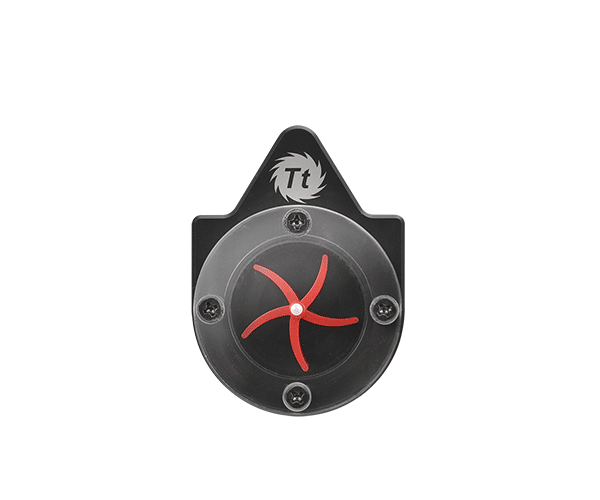

Pacific Flow Indicator One
By installing a safety valve into the cooling loop, the new Pacific Flow
Indicator One with five fan blades design provides a great way to check the flow
of the system. Featuring exceptional performance and unrivalled reliability, the
Pacific Flow Indicator One is compatible with any standard G1/4 fitting on each
end and is manufactured from high quality POM and PMMA material to provide a
crystal clear, high performance, and durable liquid cooling solution.
Tt LCS Certified is a Thermaltake exclusive certification applied only to
products that pass the design and hardcore enthusiasts standards that a true LCS
chassis should hold to. The Tt LCS certification was created so that we at
Thermaltake can indicate to all power users which chassis have been tested to be
best compatible with extreme liquid cooling configurations, ensuring you get the
best performance from the best features and fitment.
True High-Flow Design
Made in Taiwan, both ends of the Pacific Flow Indicator One are G1/4 thread
with five fan blades design; users can use any standard fitting on each end. The
high quality PMMA cover allows users to directly see through the flow
indicator.
Changeable Flow Direction
Users can freely change the flow direction of the Pacific Flow Indicator One
either clockwise or counterclockwise. Plug and play design no additional tools
needed and ready to work in seconds.
Easy & Flexible Application
Pacific Flow Indicator One allows enthusiasts to build a superior water
cooling system from an aesthetic standpoint and incorporate externally-modular
upgrades into their chassis.:
- It is strongly recommended to use market proven pre-mix coolant, such as
Thermaltake Coolant 1000. It offers great performance while preventing the
entire cooling system copper, brass, nickel, aluminum, and steel from
corrosion.
- Fill the reservoir with coolant and cycle the power on and off several
times while the pump pushing the coolant into the loop.
- DO NOT let the pump run dry, when there is no liquid entering the pump
turn off your power immediately
- Fill the reservoir to the top as it will prevent air from going into the
pump
- If necessary tilt the system slightly from side to side to bleed the air
out of the loop.
- Place some paper towels under fittings and joining points to test for
leaks.
- Run the loop with the fill port open for about 24 hours to completely
bleed the air out of the loop
- Before starting, flush out your system correctly to prevent any coolant or
unwanted particles sticking to your tubes, radiators and other cooling
components.
- Coolant might fade over time.
Specifications
|
P/N |
CL-W106-PL00BL-A |
|
Dimension |
63.3 H x 46.5 W x 28
L |
|
Weight |
64
g |
|
Material |
POM +
PMMA |
|
Screw
Thread |
G
1/4 |
