All stock codes associated to this product
CLF070PL20SWA, CL-F070-PL20SW-A

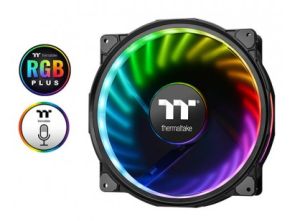

Thermaltake 200mm Riing Plus 20 LED RGB Case Fan - Single Fan Pack -
TT Premium Edition
Specially made for those seeking a 200mm PWM fan with superior airflow,
silent operation and customizable RGB lighting, Thermaltake Riing Plus 20 RGB
features compression blades, hydraulic bearing, and a patented 16.8 million
colors LED ring with 12 addressable LEDs sets (24 addressable LEDs). Supporting
Thermaltake’s patented TT RGB PLUS Software and AI interactive voice control,
the Riing Plus 20 RGB lights up your system without sacrificing performance!
*Riing Plus digital controller is not included.
*Only compatible with Riing Plus digital lighting controller.
TT RGB PLUS
TT RGB PLUS Ecosystem is the intelligent lighting system for PCs that
combines the most advanced addressable LED lighting with Thermaltake’s patented
TT RGB PLUS Software. TT RGB PLUS ecosystem provides nearly unlimited
possibilities for playing with colors, synchronizing lights to games, music, CPU
temperatures or other TT RGB PLUS products, including case fans, CPU/VGA
waterblocks, AIO CPU coolers, PSUs, LED strips and peripherals. The patented
software allows users to change the light modes, colors, speeds, brightness, fan
speeds, and even supports AI voice control in iOS and Android devices.
Patented TT RGB PLUS Software & App
Monitor the fan performance, adjust the fan speeds, and customize the
lighting effects for Thermaltake RGB PLUS series products with the patented TT
RGB PLUS Software and an exclusively designed mobile app. Choose a function from
below and scroll down to read the details.
SyncALL, Say “Hello TT”
Thermaltake AI Voice Control
Talking to TT RGB PLUS App is an easier, faster way to set lights for your
systems. You can ask it to turn the lights on or off, switch lights modes, dim
the lights, change light colors, or adjust lights speeds or fan speeds. Choose a
video from below to see how it works.
Choose a function from below and scroll down to read the details.
Fan Speeds
Simply drag the slider bar to adjust your fan speed RPM on a dedicated
control panel. The software is also included a number of preset fan modes that
allow you to set the fans to ‘Silent Mode’ where the RPM performs between a 500
– 640 RPM range, or ‘Performance Mode’ which operates and dynamically adjusts
all the way up to 1000 RPM. Besides running at the optimal RPM range, you can
customize the speed by disabling PWM.
Fan Alert
The software offers real-time fan warning alerts when performance operating
issues have emerged. The control panel of the failed fan will be grey out, so
you can quickly identify which fan is causing issues.
Color Palette
Immediately personalize your lighting with the recommended color palette. You
can change colors and brigthness for the LED ring which featrues 16.8 million
colors, or 12 single LEDs where the lights can be adjusted individually. You
also can let each LED display a specific color. Press”Color”, enter the decimal
color coded, and then save it.
Sync with Razer Chroma Lighting
All Thermaltake TT RGB PLUS products are able to connect into the Razer
Chroma ecosystem. Users who have installed both the TT RGB PLUS Software and
Razer Synapse 3 can experience synchronized gaming and RGB lighting effects on
their TT RGB PLUS liquid cooling system and gaming gear! From cooldown timers,
health bars, and flashy ultimate indicators, to subtle ambient lighting that
sets the perfect mood for each game, Razer Chroma provides an experience that
transcends the screen and into your full setup, for a truly immersive
experience.
Works with Amazon Alexa
All Thermaltake TT RGB PLUS products support Amazon Alexa Voice Service,
allowing you to control the lights or fan speeds by talking to the Alexa-enabled
device. With the support of Amazon Alexa, TT RGB PLUS products also offer an
additional visual cue for checking current weather condition in your locaiton or
anywhere in the world. All you have to do is simply starting the sentence with
“Alexa, tell Thermaltake”, then the lighting color will correspond to the
weather condition in the location.
Patented LED Design
Featuring 12 addressable LEDs sets (2 single LEDs per set), great light
coverage, and uniform color and brightness, the built-in LED ring can paint your
build with 16.8 million colors.
11 Fan Blade Design
200mm fan with unique 11 blades design is engineered to generate higher
airflow without compromising on ultra-silent operation.
Hydraulic Bearing with Low-Noise Design
1000 RPM
Noise Level (standard)
29.2 dBA
Fan Speed(w/ Low Noise Mode)
500 RPM
Noise Level(w/ Low Noise Mode)
19 dBA
The hydraulic bearing self-lubricates with a high-quality, friction-reducing
substance, which lowers operation noise while improving thermal efficiency. The
seal cap prevents lubricant leakage and extends the lifespan of the unit.
Anti-Vibration Mounting System
In-mold injection anti-vibration rubber pads provide a hassle-free usage with
80% protection coverage for all corners.
Specifications
P/N |
CL-F070-PL20SW-A (Fan x1) |
Fan Dimension |
200 x 200 x 30 mm |
Interface |
USB 2.0 connectors (9 Pin) |
System compatibility |
Windows 7 / 8 / 8.1 / 10 |
Fan Started Voltage |
9.0 V |
Fan Rated Voltage |
12 V & 5V |
Rated Current |
Fan 0.28 A (one fan) |
Power Input |
12V – 3.36 W . 5V – 4.25 W (Fan*1) |
Fan Speed |
500 ~ 1000 R.P.M |
Max. Air Pressure |
1.68 mm-H2O |
Max. Air Flow |
117.96 CFM |
Noise |
29.2 dB-A |
Bearing Type |
Hydraulic Bearing |
Life Expectation |
40,000 hrs,25℃ |
Weight |
343 g |
