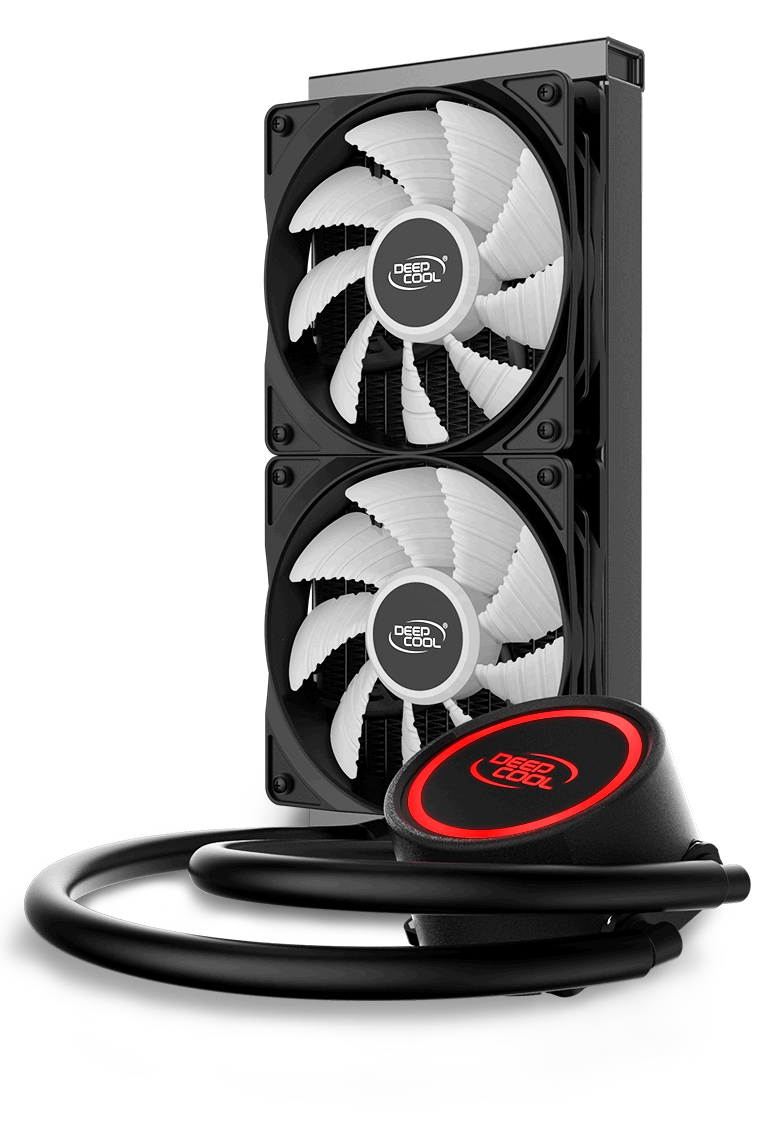

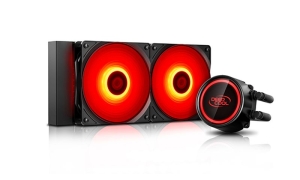

DeepCool GAMMAXX L240T RED CPU Liquid Cooler
Design
GAMMAXX L series AIO coolers are know for their powerful performance, neat
appearance, and tempting cost efficiency. The GAMMAXX L240T RED upgraded the its
reliability with Anti-leak Tech Inside system, so users can enjoy extreme
processor performance without any leakage concerns.
About Anti-leak Tech Inside
After 3 years of R&D, DEEPCOOL launched the new standard of liquid
cooling system - The Anti-leak Tech. The technology helps the system achieve an
automated pressure balance, which will significantly improve operation safety of
AIO liquid cooling systems. With this technology, Deepcool is setting a new
standard for liquid cooling systems.
Optimized Micro Water-channel
E-shaped micro water-channel design can effectively enhance the heat
circulation efficiency and enlarge the thermal contact area.
Blue LED Lighting
The brand new water block and fans are illuminated by static blue LEDs that
powered by a 4pin PWM header.
Support Mainstream Intel & AMD Socket
Ready for easy mounting and unrestricted direction installation on mainstream
sockets of Intel/AMD.

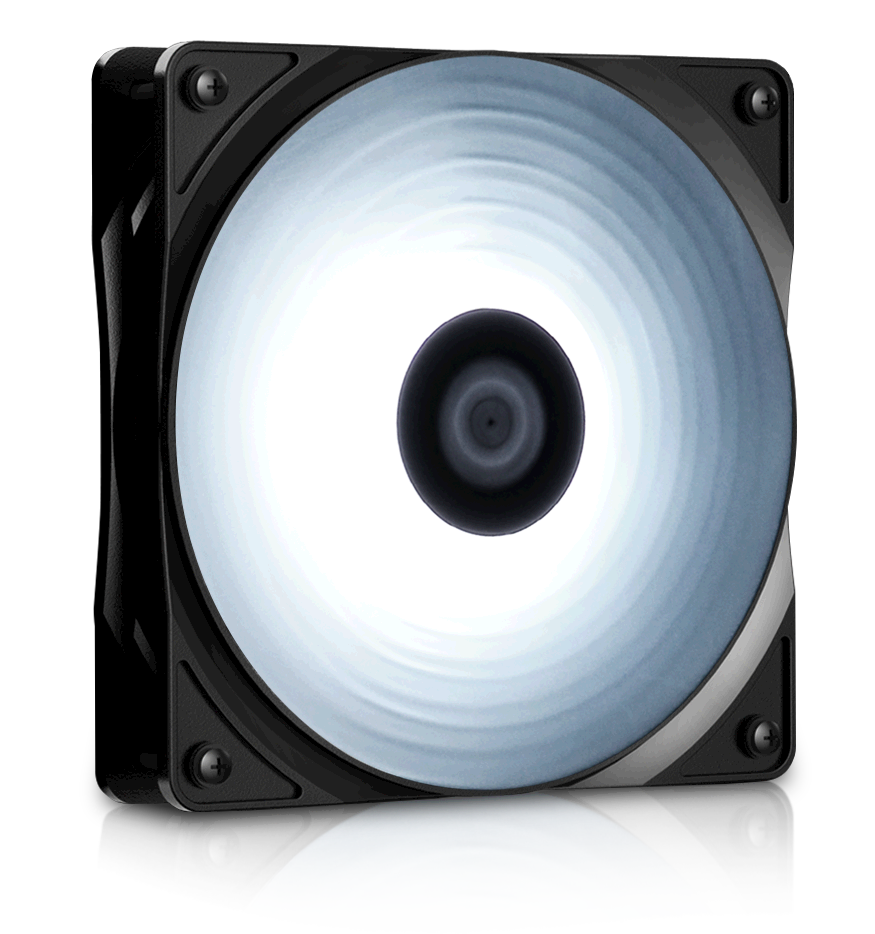

Two 120mm PWM fans with powerful performance and low noise level are
included.
Features
- Anti-leak Tech Inside system equipped.
- E-shaped micro water-channel design can effectively enhance the heat
circulation efficiency and enlarge the thermal contact area.
- The brand new water block and 120mm PWM fans are illuminated by static
blue LEDs and powered by 4pin PWM headers.
- Ultra-large, pure copper CPU block provides effective coverage and heat
dissipation for CPUs of any size.
- The ceramic axle bearings and axle cores guarantee an ultra-long service
life.
- Support Mainstream Intel & AMD Socket.
Specifications
Application For:
- LGA20XX/LGA1366/LGA115X
- AM4/AM3+/AM3/AM2+/AM2/FM2+/FM2/FM1
|
Net
Weight |
1238
g |
|

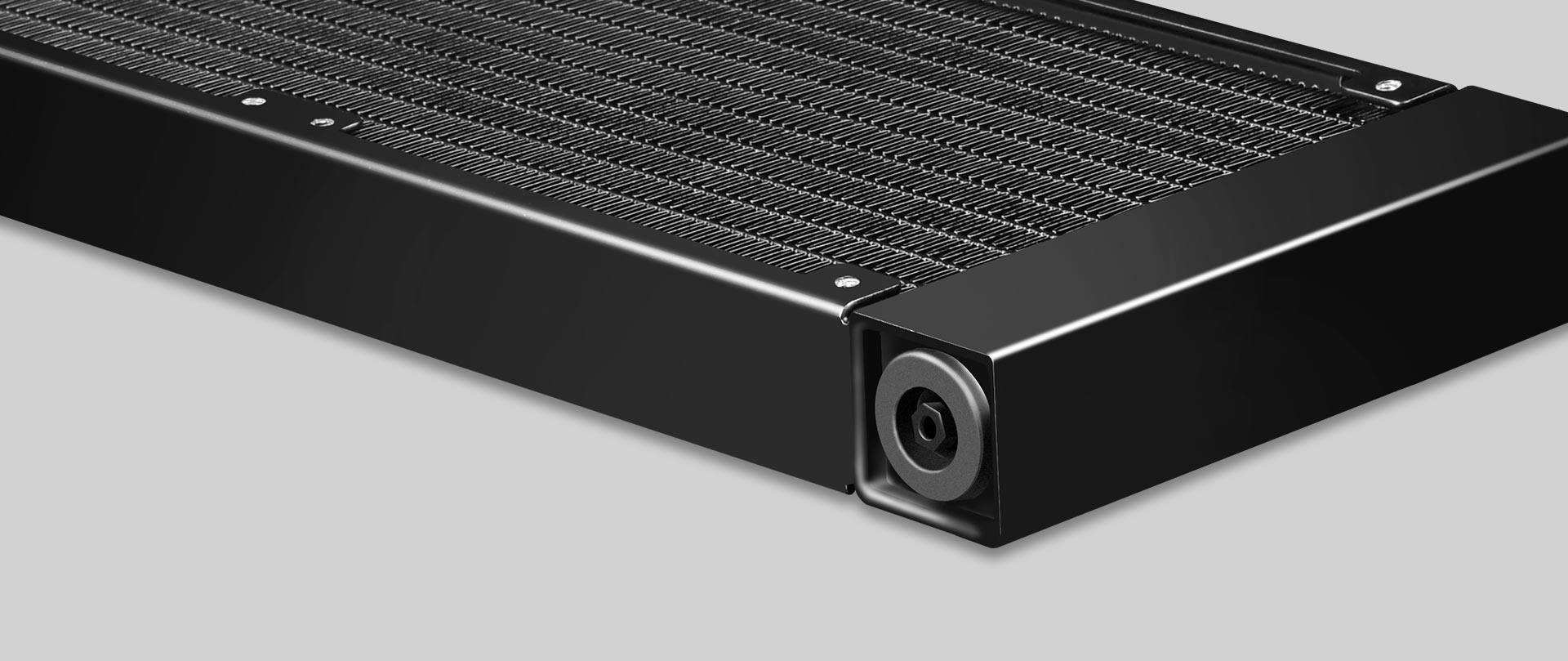

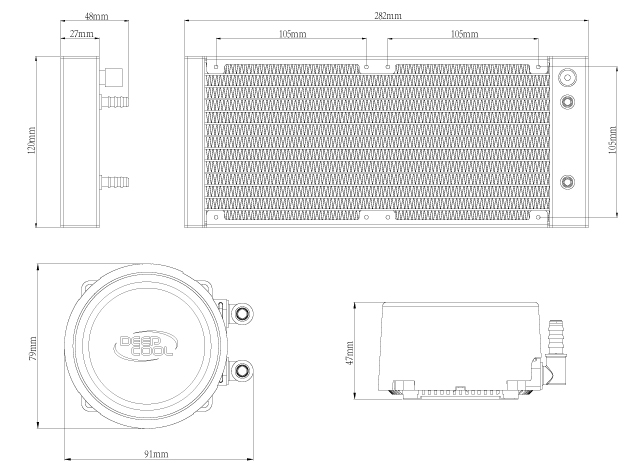

Radiator
Dimensions |
28212027
mm |
|
Radiator
Material |
Aluminum |
|
Tube
Length |
315
mm |
|
Pump
Dimensions |
917947
mm |
|
Pump
Speed |
2400
RPM10% |
|
Pump
Noise |
17.8
dB(A) |
|
Pump
Connector |
3-pin |
|
Pump Rated
Voltage |
12
VDC |
|
Pump Rated
Current |
0.21
A10% |
|
Pump Power
Consumption |
2.52
W |
|
Fan
Dimension |
12012025
mm |
|
Fan
Speed |
500-1800
RPM10% |
|
Fan
Airflow |
69.34
CFM |
|
Fan Air
Pressure |
2.42
mmAq |
|
Fan
Noise |
30
dB(A) |
|
Fan
Connector |
4-pin |
|
Bearing
Type |
Hydro
Bearing |
|
Fan Rated
Voltage |
12
VDC |
|
Fan Rated
Current |
0.22
A10% |
|
Fan Power
Consumption |
2.64
W |
|
LED
Type |
RED
LED |
|
EAN |
6933412726739 |
|
P/N |
DP-H12RF-GL240TR |
