All stock codes associated to this product
CASTLE240RGBV2, CASTLE 240RGB V2, CFDCASTLE240RGBV2, CFD-CASTLE240-RGBV2, 6933412726609

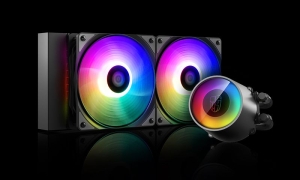

Deepcool Castle 240RGB V2 CPU Liquid Cooler
Overview
About Anti-leak Tech Inside
After 3 years of R&D, DEEPCOOL launched the new standard of liquid
cooling system - The Anti-leak Tech.
The technology helps the system achieve an automated pressure balance, which
will significantly improve operation safety of AIO liquid cooling systems. With
this technology, Deepcool is setting a new standard for liquid cooling
systems.
Fabulous Aesthetics Inherited
From its original version, CASTLE 240RGB V2 inherited the mirror finish and
immersive ambient lighting on the pump, thereby pushing your rigs aesthetics to
next level.
The 16.7M true color flowing RGB system can be easily synchronized and
controlled by the included wired controller.
The lighting system has 5 in-built effects (dynamic, static, breathing,
comet, and fashion collision) and 36 interchangeable lighting modes. It also
supports SYNC control by motherboards.
- Dynamic
- Static
- Breathing
- Comet
- Fashion Collision
Support Motherboard 3 Pin Addressable RGB Software
Control
1. Motor:High efficient induction motors deliver stronger liquid flow and
pressure.
2. Impeller:Closed impellers are designed to enhance liquid
pressure.
3. Axle:The ceramic axle bearings and axle cores guarantee an ultra-long
service life.
4. Copper Base:An ultra-large, pure copper CPU block provides effective
coverage and heat dissipation for CPUs of any size.
- It seamlessly supports the TR4/AM4 and mainstream Intel & AMD socket
types.The optimized E-shaped micro water channel design effectively enhances
heat circulation efficiency and enlarges heat contact areas.
- The 2 included CF 120 fans are 120mm ADD-RGB fans with flowing lighting
effects.
- The exhaustive damping technologies on the fans can vastly lower noise
while maximizing airflow.
Features
- Anti-leak Tech Inside liquid cooling system equipped.
- Double window panes and immersive ambient lighting ready to provide a
perfect display of aesthetic illumination.
- 16.7 M true color RGB flowing light system with 5 in-built effects and 36
interchangeable lighting modes.
- Motherboard and controller Addressable RGB SYNC control
supported*
- Ultra-large, pure copper CPU block provides effective coverage and heat
dissipation for CPUs of any size.
- An optimized E-shaped micro water channel is designed to effectively
enhance heat circulation efficiency and to enlarge heat contact
areas.
- The ceramic axle bearings and axle cores guarantee an ultra-long service
life.
- Supports mainstream INTEL and AMD socket mounting, including
TR4/AM4.
*WS2812B ADD-RGB LED is applied and the below 3pin ADD-RGB Headers are
compatible for the device: 5V/D/G and 5V/D/NC/G, which is used for the
mainstream M/B brands like ASUS, MSI, Gigabyte.
Specifications
Application For
Intel
- LGA2066/2011-v3/2011/1151/1150/1155/1366
AMD
- TR4/AM4/AM3+/AM3/AM2+/AM2/FM2+/FM2/FM1
|
Pump
Dimensions |
91x79x71
mm |
|
Radiator
Dimensions |
282x120x27
mm |
|
Radiator
Material |
Aluminum |
|
Net
Weight |
1426
g |
|
Tube
length |
380
mm |
|
Pump
Speed |
2550
RPM10% |
|
Pump
Noise |
17.8
dB(A) |
|
Pump
Connector |
3-pin |
|
Pump Rated
Voltage |
12
VDC |
|
Pump Rated
Current |
0.21
A |
|
Pump Power
Consumption |
2.52
W |
|
Fan
Dimensions |
120x120x25
mm |
|
Fan
Speed |
500~1800
RPM10% |
|
Fan
Airflow |
69.34
CFM |
|
Fan Air
Pressure |
2.42
mmAq |
|
Fan
Noise |
30
dB(A) |
|
Fan
Connector |
4-pin
PWM |
|
Bearing
Type |
Hydro
Bearing |
|
Fan Rated
Voltage |
12
VDC |
|
Fan Power
Consumption |
2.04
W |
|
LED
Type |
Addressable RGB
LED |
|
LED Connector |
3-pin(+5V-D-G) |
|
LED Rated
Voltage |
5
VDC |
|
LED Power
Consumption |
2.25 W (PUMP) / 4.8 W
(FANx2) |
|
EAN |
6933412726609 |
|
P/N |
DP-GS-H12AR-CSL240V2 |

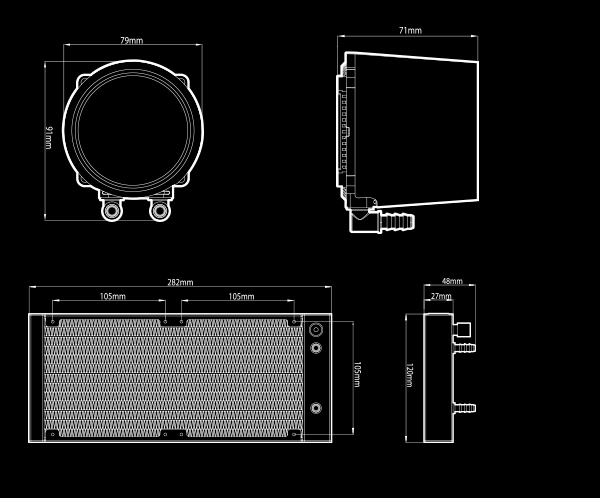

Product Dimension
