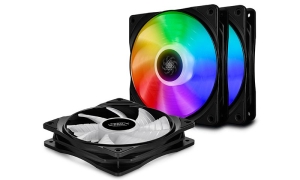

Deepcool CF120 - 3 in 1 MB Controlled 120mm A-RGB LED Case
Fan
Design
Customizable Addressable RGB LED Lighting
Utilize 12pcs of independently programmable RGB LED lights, CF120 provides
full lighting for your build, achieving magical lighting effects with MB
controls include 3 dynamic modes(waves, cycles and breathing) and 3 monochrome
modes (constant light, breathing and meteor), up to 8 different colors to choose
from
Synchronized Control via 5V A-RGB Header on
MB
Can be easily controlled by MB through 5V A-RGB Header, no additional
controller needed, and can synchronize with other A-RGB devices
Control by Using the Included A-RGB
Controller
Use the included A-RGB Controller to control multiple Deepcool RGB devices,
up to 6pcs
Better Balance on Performance & Low Noise
Better balance on air volume & air pressure, low noise, can be used as a
case fan or CPU cooling fan
PWM Intelligent Control
Fan speed can be intelligently controlled by MB in accordance with
temperature
Features
Utilize 12pcs of independently programmable RGB LEDs for amazing display
effects
*Can be easily controlled by MB through 5V A-RGB Header, no additional
controller needed, and can synchronize with other A-RGB devices
Use the included A-RGB Controller to control multiple devices
Fan speed can be intelligently controlled by MB in accordance with
temperature
Better balance on air volume & air pressure, low noise, can be used as a
case fan or CPU cooling fan
*WS2812B ADD-RGB LED is applied and the below 3pin ADD-RGB Headers are
compatible for the device: 5V/D/G and 5V/D/NC/G, which is used for the
mainstream M/B brands like ASUS, Gigabyte
Specifications
Fan
Dimension |
120x120x25mm |
Net
Weight |
510g |
FAN
Speed |
500_200~1500_10%RPM |
Fan
Air Flow |
56.5CFM |
Fan
Air Pressure |
1.63mmH2O |
Fan
Noise Level |
17.8~27dB(A) |
Fan
Connector |
4Pin |
FAN
Rated Voltage |
12VDC |
FAN
Operating Voltage |
10.8~13.2VDC |
FAN
Starting Voltage |
7VDC |
FAN
Rated Current |
0.11A |
FAN
Power Input |
1.32W |
Bearing
Type |
Hydro
Bearing |
LED
Type |
Addressable
RGB LED |
LED
Rated Voltage |
5VDC |
LED
Rated Current |
0.48A |
LED
Rated Power |
2.4W |
LED
Connector |
3pin
(+5V-D-G) |
LED
Control |
M/B
with 5V ADD-RGB Header |
EAN |
6933412710332 |
P/N |
DP-FA-RGB-CF120-3 |
