All stock codes associated to this product
CLF109PL12BUA, CL-F109-PL12BU-A, II347503

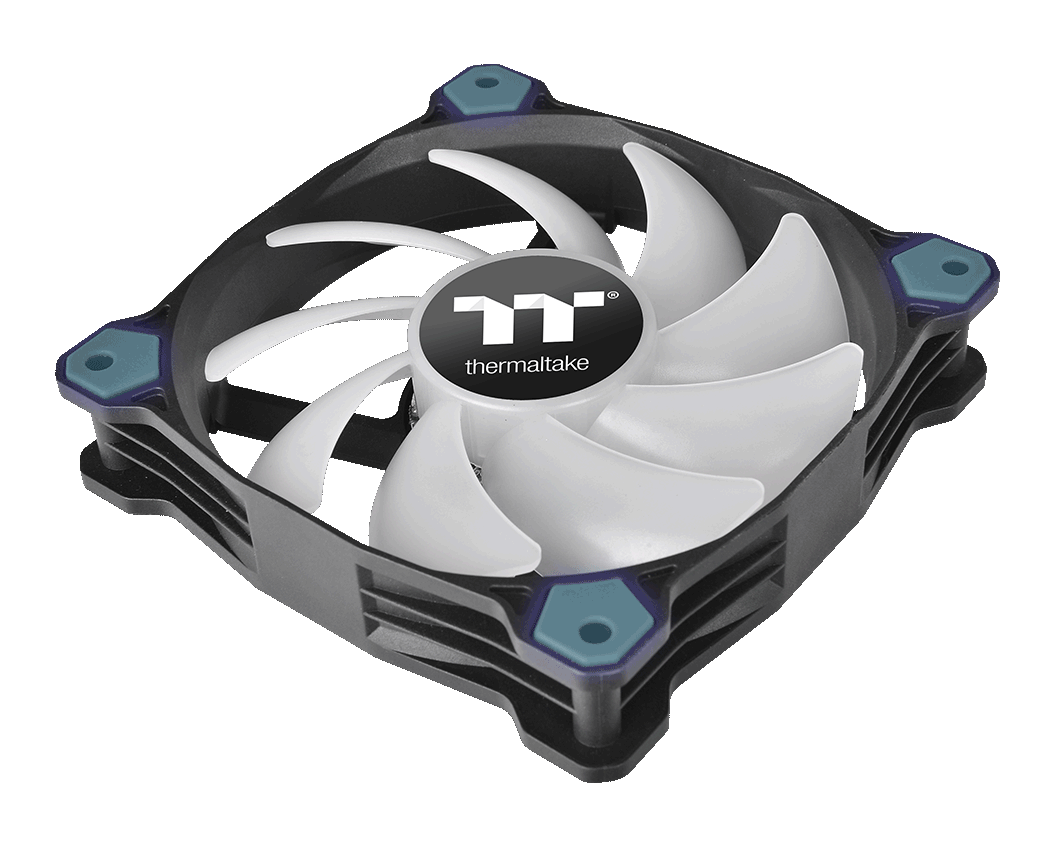

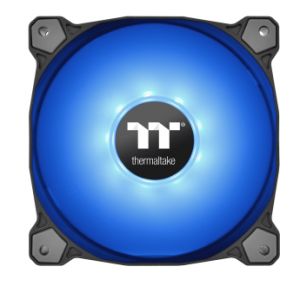

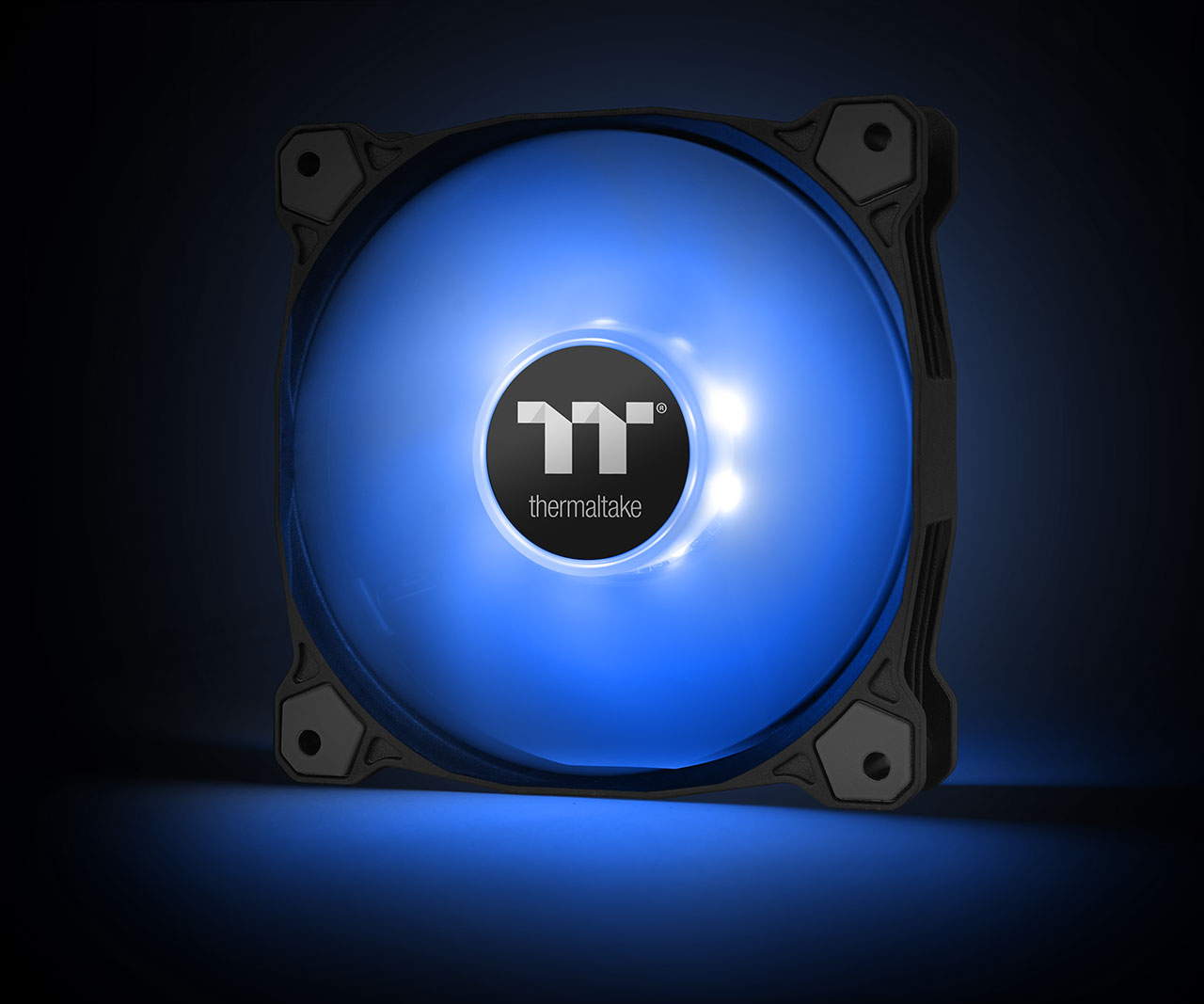

Thermaltake Pure A12 Radiator Fan (Single Fan Pack) -
Blue
Overview
Pure A12 PWM controlled fans come with 4 color options including red, blue,
green and white. Designed for radiator cooling, the Pure A12 LED fans
incorporate 9 LEDs, long life hydraulic bearings for silent operation and
anti-vibration dampening foam which minimizes vibration and sound.
Pure A12 radiator fans are designed with 9 LEDs, which come with 4 individual
colors: red, blue, green and white, delivering uniform brightness and high color
saturation allowing you to create your very own themes.
Hydraulic Bearing with Low-Noise Design
The hydraulic bearing self-lubricates with a high-quality, friction-reducing
substance, which lowers operation noise while improving thermal efficiency. The
seal cap prevents lubricant leakage and extends the lifespan of the unit.
Anti-Vibration Mounting System
The In-mold injection anti-vibration rubber pads dampen the vibration of the
fan allowing the fan to spin at higher levels without compromising noise levels.
The fan is designed with 80% coverage for all corners, maintaining low noise
levels when in operation.
4 - Color Selections
Pure A12 fan not only creates an aesthetically pleasing liquid cooled system
but also delivers extraordinary performance during operation. The fans are
available in four colors to match with any build you desire.
Specifications
|
P/N |
CL-F109-PL12BU-A |
|
FAN
DIMENSION |
120
x 120 x 25 mm |
|
INTERFACE |
4
PIN PWM |
|
SYSTEM
COMPATIBILITY |
Windows
7 / 8 / 8.1 / 10 |
|
FAN
STARTED VOLTAGE |
9.0
V |
|
FAN
RATED VOLTAGE |
12
V |
|
RATED
CURRENT |
0.15
A (one fan) |
|
POWER
INPUT |
1.8
W (one fan) |
|
FAN
SPEED |
PWM
500~1500 R.P.M |
|
MAX.
AIR PRESSURE |
1.59
mm-H2O |
|
MAX
AIR FLOW |
56.45
CFM |
|
NOISE
LEVEL |
25.8
dB-A |
|
BEARING
TYPE |
Hydraulic
Bearing |
|
LIFE
EXPECTATION |
40,000
hrs,25 |
|
WEIGHT |
156
g |
