All stock codes associated to this product
NX800WH, NX800-WH, CAANX800WH, CAA-NX800-WH, 761345810821

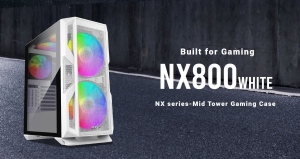

Antec NX800 NX Series Mid Tower Gaming Case - White
Overview
Creation of Value & Function
The NX800 mid-tower gaming case effortlessly combines a bevy of in-demand
features: USB 3.0 connectivity, ample storage drive bays, room for expansion,
and includes 2 x 200mm ARGB fans in front & 1x 140mm ARGB fan in rear. With
support for up to a 360 mm liquid cooling radiator in front & 280 radiator
on top, NX800 is easy to build with, and easy to cool.
Color Your System
I/O PORTS
7 + 3 PCI-E Slots
3 x vertical expansion slots for you to install GPU card vertically.
Supports up to 6 fans
A. Motherboard support: Up to E-ATX
B. 2.5" SSD: 4
C. 3.5" HDD/2.5" SSD(convertible): 3/1
D. Graphics Card Support: Up to 350 mm
E. CPU Cooler Support: Up to 180 mm
F. PSU Support: Up to 200 mm
Specifications
|
Case
Specification |
|
Dimensions |
470
x 230 x 500 mm (DWH) |
|
|
Form
Factor |
Mid
Tower |
|
|
Materials |
SPCC
+ Plastic |
|
|
Mainboard
Support |
E-ATX,
ATX, Micro-ATX, ITX |
|
|
Front
Access & Controls |
Power,
Reset, LED Control Button, MIC/Audio, USB2.0 x 2, USB3.0 x
1 |
|
|
Side
Panel |
Tempered
Glass |
|
|
Expansion
& Drive Bays |
|
Expansion
Slots |
7 |
|
|
5.25" |
0 |
|
|
3.5"/2.5"
(convertible) |
3/1 |
|
|
2.5" |
4 |
|
|
Fan
Support |
|
Front |
3
x 120mm / 3 x 140mm |
|
|
Top |
2
x 120mm / 2 x 140mm |
|
|
Rear |
1
x 120mm / 1 x 140mm |
|
|
Included
Fan(s) |
2
x 200mm ARGB fans in front & 1x 140mm ARGB fan in
rear |
|
|
Radiator
Support |
|
Front |
360mm |
|
|
Top |
280mm |
|
|
Rear |
140mm |
|
|
Clearance |
|
Max
GPU Length |
350mm |
|
|
Max
CPU Height |
180mm |
|
|
PSU
Support |
200mm |
|
|
Miscellaneous |
|
Dust
Filter |
Front
/ Top / Bottom |
|
|
UPC# |
0-761345-81080-7 |
|
|
Net
Weight |
7.87
Kgs |
|
|
Gross
Weight |
9.11
Kgs |
|
|
Warranty |
1
year |
|
|
In
built ARGB board |
6
pin |
|
