All stock codes associated to this product
AORUSLIQUIDCOOLER280, AORUS-LIQUID-COOLER-280

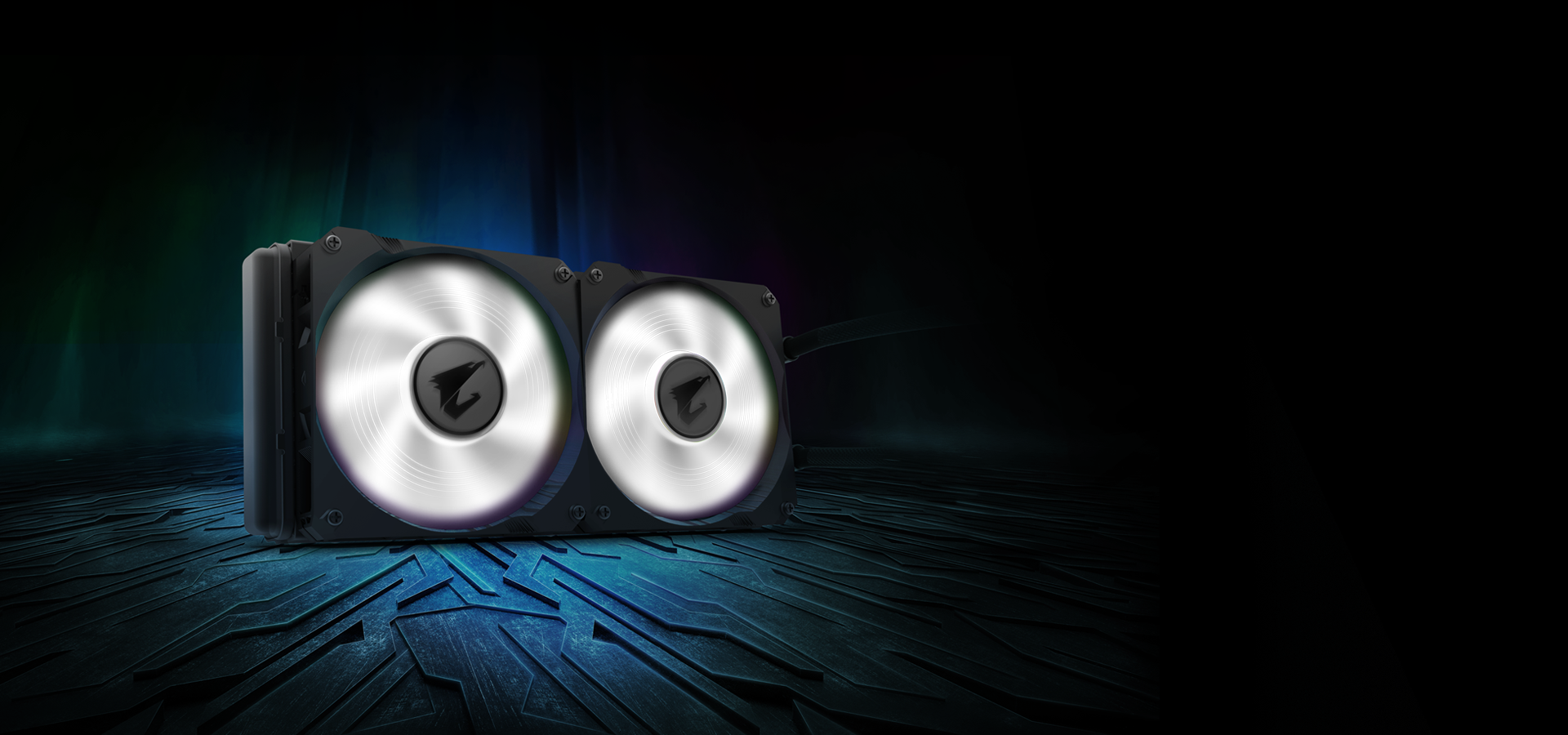

Gigabyte Aorus AIO Liquid Cooler 280
Key Features
AORUS LIQUID COOLER 280, All-in-one Liquid Cooler with Circular LCD Display,
RGB Fusion 2.0, Dual 140mm ARGB Fans
- New high performance pump efficiently dissipates heat from high end
CPUs.
- Unique 60*60mm circular full color LCD with dynamic AORUS logo display
designs and custom a picture and text available.
- High performance, low-noise level, dual ball bearing ARGB fans.
- Supports RGB FUSION 2.0 synchronization with other AORUS
devices.
- Universal design for fan & pump RPM control, supports all MB
brands

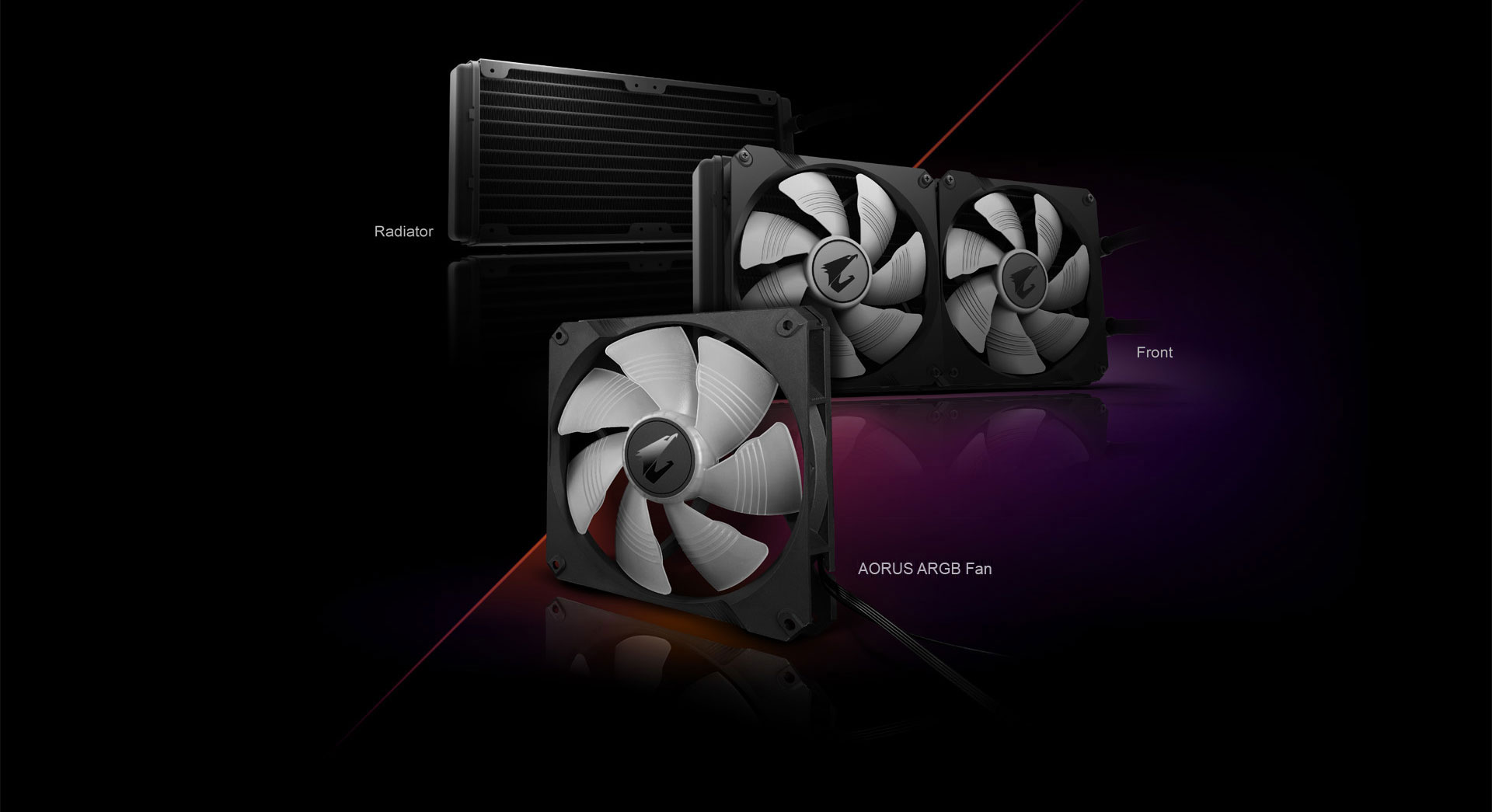

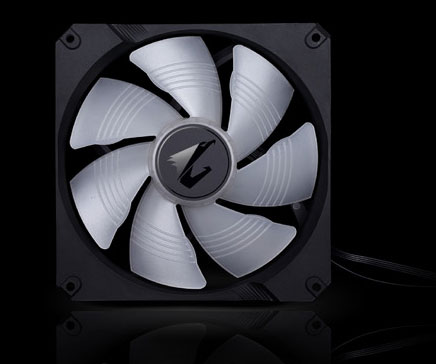

280 LIQUID COOLER FANS

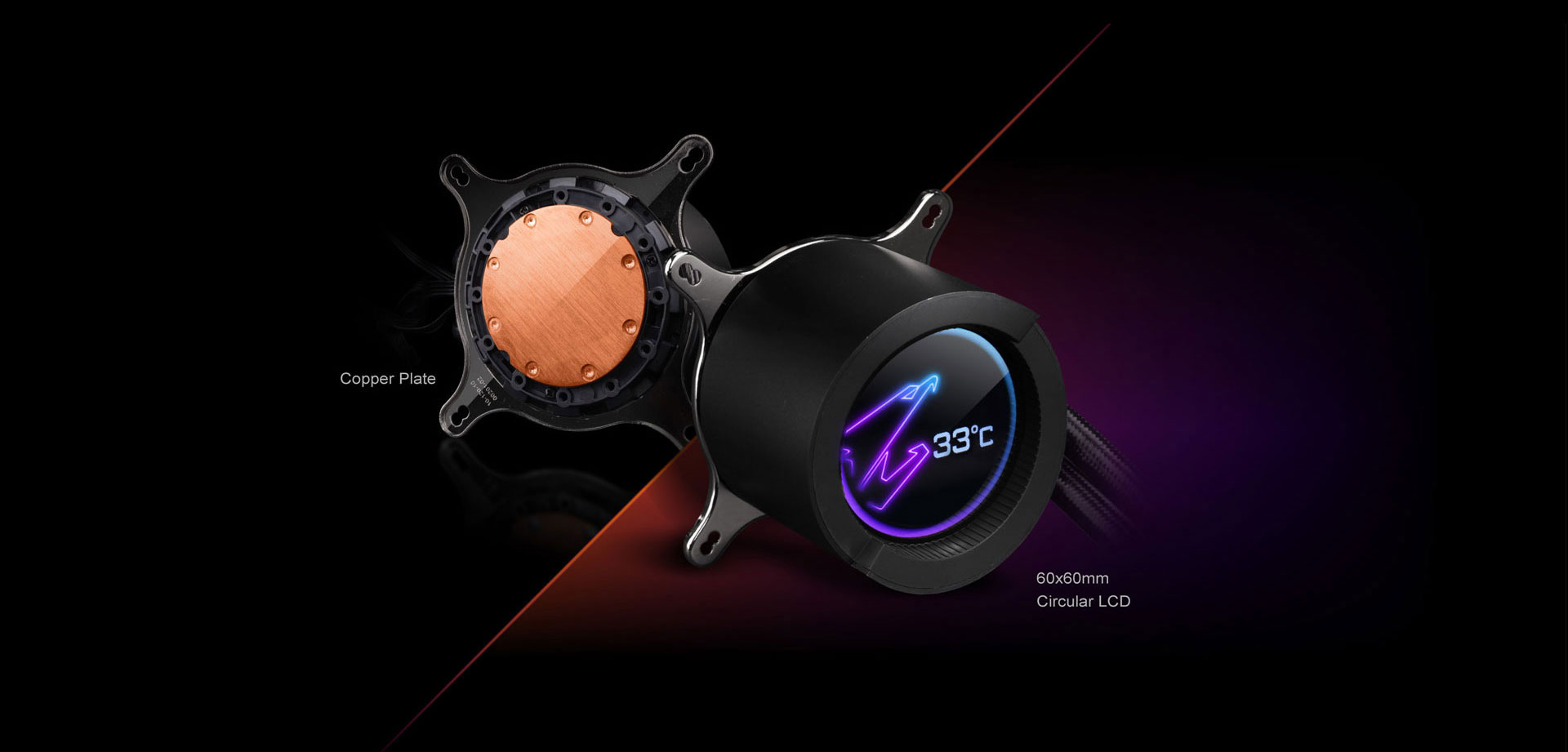

280 LIQUID COOLER WATERBLOCK
EXCELLENT COOLING PERFORMANCE & HEAT DISSIPATION
TESTED
- AMD OFFICIALLY CERTIFIED COOLER for Ryzen Threadripper processor with up
to 280W TDP require EXCELLENT HEAT DISSIPATION.
- Excellent performance tested with Intel Core i9-10900K at 10 Cores
5.2GHz.
Exclusive Circular LCD Display Modes

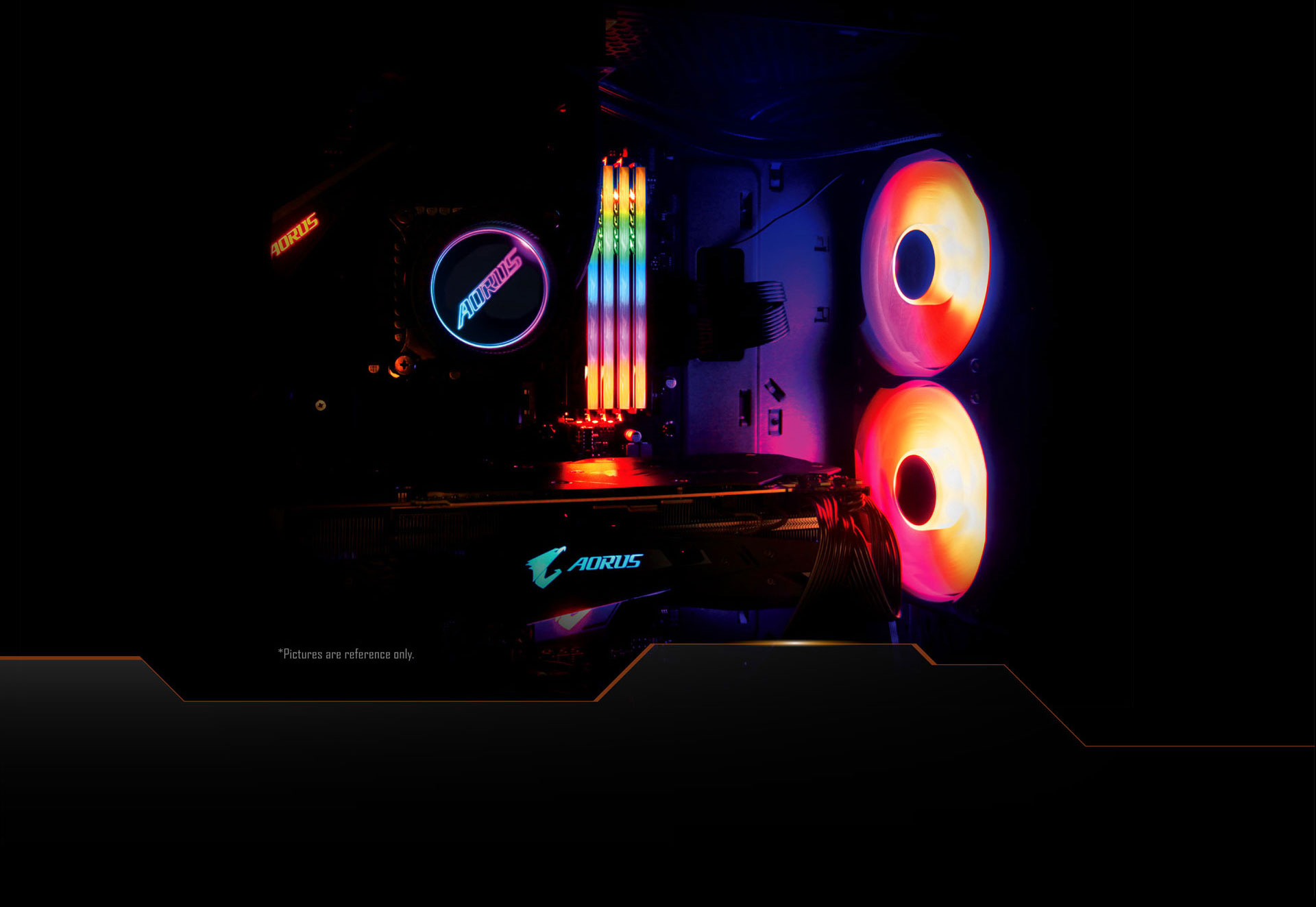

All-new RGB LED Design. RGB Fusion 2.0 Software allows users to control the
lighting patterns on the AORUS Falcon logo and fan blades and enables lighting
synchronization with peripherals so that users can showcase their own
style.
SIMPLE CUSTOMIZATION WITH AORUS ENGINE & RGB FUSION
2.0

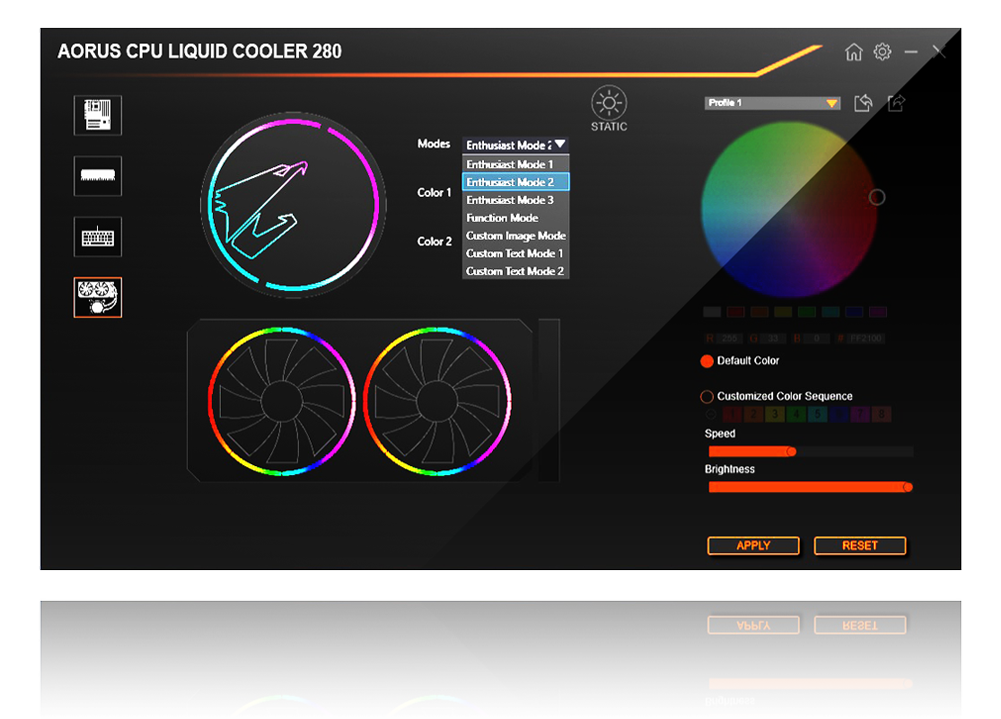

LCD PATTERN SWITCH
Through RGB FUSION 2.0 switch up to 7 LCD pattern models including the AORUS
Enthusiast mode, function mode, custom image mode, and custom text mode.

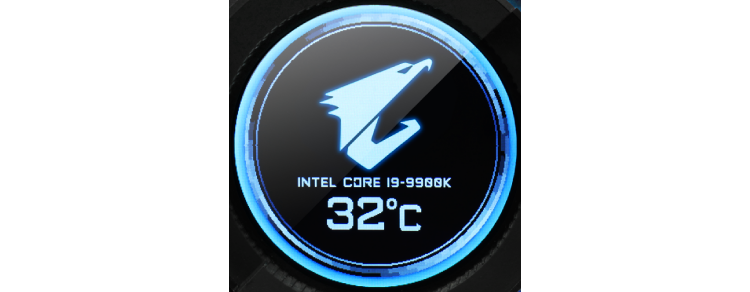

Information Display and Heat Dissipation Features

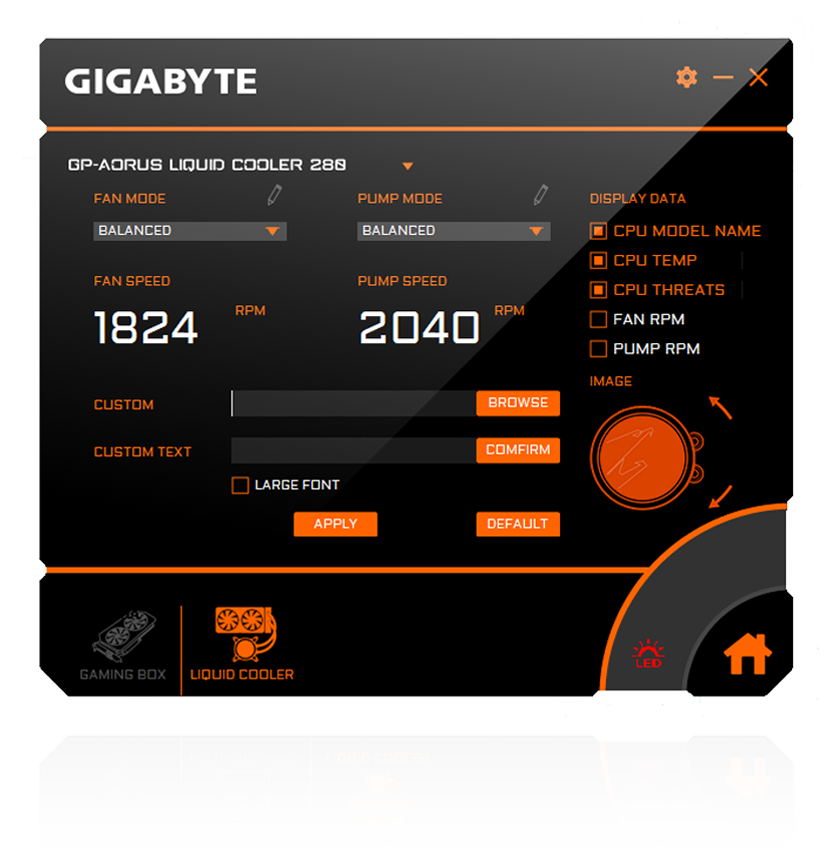

Through the AORUS Engine,users can select CPU model name/clock
rates/temps/fan RPM/pump RPM to display on their LCD, giving them full control
over the status of each metric. Text and image files can be displayed on the
LCD. Fans and pump RPM come with the silent fan function.
UNIQUE FAN DESIGN
Efficient Heat-Dissipating, Silent AORUS Fans
After extensive testing, AORUS has paired the 140mm fan blade with the 280mm
radiator for the best synergy in delivering the most efficient heat dissipation
with minimal noise. The fan keeps the noise at a minimum even when running at
the highest speed. ARGB Fan type adds the AORUS style to your system by
supporting RGB Fusion 2.0 for the coolest looking setups.
DUAL BALL BEARING STRUCTURE
RGB Fusion 2.0
All-new RGB LED Design. RGB Fusion 2.0 Software allows users to control the
lighting patterns on the AORUS Falcon logo and fan blades and enables lighting
synchronization with peripherals so that users can showcase their own style.
Specifications
|
Radiator
& Block |
Dimensions
: 315 x 143 x 30mm |
|
Pump
Dimension : 80 x 80 x 60mm |
|
Radiator
Material : Aluminum |
|
Block
Material : Copper |
|
Tube
Length : 380mm |
|
CPU
Socket |
Intel
2066, 2011-3, 1366, 115x, 1200 |
|
AMD
sTRX4, TR4, AM4 |
|
LCD
Display |
60
x 60mm Full Color LCD |
|
Fan |
Spec
: 140 x 25mm ARGB Fan x 2 |
|
Speed
: 2300 RPM +/-10% |
|
Bearing
Type : 2 Ball Bearing |
|
Air
Flow : 100.16 CFM |
|
Air
Pressure : 5.16 mmH2O |
|
Life
Expectancy : 70,000 Hours |
|
Noise
Level : 22.3~44.5 dBA |
|
Software |
RGB
FUSION 2.0 Support |
|
AORUS
ENGINE Support |
|
*
For the product to fully function, user must install and run both the
AORUS ENGINE version 1.82 and RGB FUSION 2.0 version B20.0122.1
software. |
|
Warranty |
3
Years |
|
Note |
1.
The TR4 mounting bracket is bundled with TR4 CPU Package, not in the AORUS
package. |
|
2.
PSU must use a 5pin SATA power cable with 3.3V output to support LCD image
display. |
|
3.
Custom image: Support BMP only, image width under 820 pixels. AORUS ENGINE
will crop a 320x320 pixel image from the full
image. |
|
4.
Custom text: Support English letters and numbers input
only. |
|
5.
OS Windows 10 recommended. |
|
6.
AORUS LIQUID COOLER 280 compatible with all MB
brands. |
