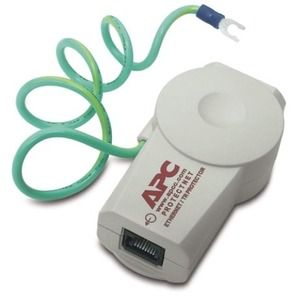

APC PNET1GB ProtectNet Standalone Surge Protector - For 10/100/1000 Base-T Ethernet Lines

IMG 1 of 2
No Longer Available
Part Number:
497883
(?) Brand:
APC Web Site
Manuf No:
PNET1GB
Shipping Weight:
0.12 KG (Includes product packaging)
Estimate Shipping
Details Files Images & Video
All stock codes associated to this product
PNET1GB, UPAPCPNET1GB, 1000347, 731304226734

APC ProtectNet standalone surge protector for 10/100/1000 Base-T Ethernet lines



Features

  • APC ProtectNet standalone surge protector for 10/100/1000 Base-T Ethernet lines
  • Protects an Ethernet data port from damaging surges. Compatible with Power over Ethernet (PoE) and 10/100/1000 Base-T networks.
  • Includes: 15 cm network patch cable, User manual

Specifications

Surge Protection and Filtering

Data Line Protection

RJ45 10/100/1000 Base-T Ethernet protection

Data Lines Protected (multi-line only)

1-8

ts_nm_surge_response

1ns

Peak Current Common Mode

0.3kAmps

Peak Current Normal Mode

6.5kAmps

Physical

Maximum Height

104MM, 10.4CM

Maximum Width

47MM, 4.7CM

Maximum Depth

28MM, 2.8CM

Net Weight

0.05KG

Shipping weight

0.11KG

Shipping Height

104MM, 10.4CM

Shipping Width

90MM, 9.0CM

Shipping Depth

29MM, 2.9CM

Color

Beige

Master Carton Dimensions (Length x Width x Height)

533 x 584 x 432MM

Master Carton Units

144

Master Carton Weight

20.96

Units per Pallet

1152

SCC Codes

1.07313E+13

Environmental

Operating Temperature

-15 - 65 C

Operating Relative Humidity

0 - 95 %

Storage Temperature

-15 - 65 C

Storage Relative Humidity

0 - 95 %

Conformance

Approvals

UL 497B

Standard warranty

10 years repair or replace

Sustainable Offer Status

RoHS

Compliant

No additional files, specification sheets, guides or documentation found for product.

Warranty: 24 months*

Full manufacturers warranty details are available at the manufacturers (APC) web site.

Unless otherwise specified Techbuy is normally your first point of contact for warranty related returns, further information regarding our warranty policies and consumer guarantees is available on our policies and service & support pages.

To apply for return of a product just go to our returns page.

These terms are in addition to and do not affect any terms, conditions, guarantees and warranties implied by law.
