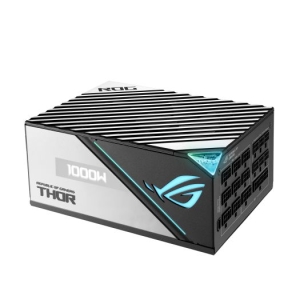

Asus ROG-THOR-1000P2-GAMING Power Supply
Overview
ROG Thor 1000W Platinum II is the quietest PSU in its class.
- Lambda A++ Certification confirms the latest Thor wields menacing power in
absolute stealth.
- ROG heatsinks cover critical components, delivering lower temperatures and
reduced noise.
- A 135mm Axial-tech fan with PWM control delivers lower noise and keeps
thermals in check.
- Built with 100% Japanese capacitors and other premium components to
achieve 80 Plus Platinum Certification.
- OLED display monitors power draw in real time.
- Aura Sync compatibility lets you customize and sync lighting effects with
other compatible hardware.
Specifications
|
Intel
Specification |
ATX12V |
|
Dimensions |
190
x 150 x 86 mm |
|
Efficiency |
80Plus
Platinum |
|
Protection
Features |
OPP/OVP/UVP/SCP/OCP/OTP |
|
Hazardous
Materials |
ROHS |
|
AC
Input Range |
100-240Vac |
|
Thermal
Features |
ROG
Thermal Solution |
|
DC
Output Voltage |
+3.3V
+5V +12V -12V +5Vsb |
|
Maximum
Load |
25A
25A 83A 0.3A 3A |
|
Combined
Load |
125W
125W 996W 3.6W 15W |
|
Total
Output |
1000W |
|
Connectors |
MB
24/20-pin x 1 |
|
CPU
4+4-pin x 2 |
|
PCI-E
12-pin x 1 |
|
PCI-E
6+2-pin x 8 |
|
SATA
x 12 |
|
PERIPHERAL
x 6 |
|
Package
Contents |
Power
Cord x 1 |
|
Motherboard
Power Cable x 1 |
|
CPU
Cable x 2 |
|
12-pin
PCI-E Cable x 1 |
|
PCI-E
Cable 1-to-1 x 4 |
|
PCI-E
Cable 1-to-2 x 2 |
|
SATA
Cable 1-to-4 x 3 |
|
Peripheral
1-to-3 x 2 |
|
Addressable
RGB cable x1 |
|
ROG
sticker x 1 |
|
ROG
cable tie x 6 |
|
Sleeved
Cable Combs (6-pin) x 4 |
|
Sleeved
Cable Combs (8-pin) x 10 |
|
Sleeved
Cable Combs (24-pin) x 2 |
|
Chassis
Screws Package x 1 |
|
Cable
Tie x 12 |
|
User
Manual x 1 |
|
Weight |
2.37
KG |
