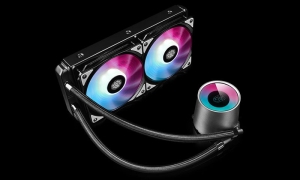

Deepcool Castle 240RGB CPU Liquid Cooler



Features

  • Double window panes and immersive ambient lighting are designed to provide a perfect display of aesthetic illumination.
  • The 16.7 M true color RGB flowing light system with 5 in-built effects (dynamic, static, breathing, comet, and fashion collision) has 36 interchangeable lighting modes.
  • Motherboards are supported with synchronized lighting control via addressable RGB function*
  • Ultra-large, pure copper CPU block provides effective coverage and heat dissipation for CPUs of any size.
  • An optimized E-shaped micro water channel is designed to effectively enhance heat circulation efficiency and to enlarge heat contact areas.
  • The ceramic axle bearings and axle cores guarantee an ultra-long service life.
  • It supports mainstream INTEL and AMD socket mounting, including TR4/AM4.

*WS2812B ADD-RGB LED is applied and the below 3pin ADD-RGB Headers are compatible for the device: 5V/D/G and 5V/D/NC/G, which is used for the mainstream M/B brands like ASUS, MSI, Gigabyte.

Application For

Intel 165W

  • LGA20XX/LGA1366/LGA1200/1151/1150/1155
  • High End Desktop i9/i7
  • Core i7/i5/i3
  • Pentium G
  • Celeron GAMD 250W

AMD 250W

  • TR4/AM4/AM3+/AM3/AM2+/AM2/FM2+/FM2/FM1
  • Ryzen
  • APU A12/A10/A8/A6/A4
  • FX 8/6/4-Core
  • Phenom II X6/X4/X3/X2
  • Athlon II X4/X3/X2
  • Athlon X4

Specifications

Pump Dimensions

91x79x71mm(LxWxH)

Radiator Dimensions

274x120x27mm(LxWxH)

Radiator Material

Aluminum

Fan Dimensions

120x120x25mm(2pcs)

Fan Speed

500200180010%RPM

Fan Air Flow

69.34CFM

Fan Air Pressure

2.42mmH2O

Fan Life Expectancy

40000 hours

Fan Noise Level

17.8~30dB(A)

Fan Bearing Type

Hydro Bearing

Fan Connector

4Pin

Fan Rated Voltage

12VDC

Fan Rated Current

0.17A10%A

Fan Power Consumption

2.04W

Pump Life Expectancy

120000 hours

Pump Connector

3Pin

Pump Operating Voltage

10.813.2VDC

Pump Rated Voltage

12VDC

Pump Speed

255010%RPM

Pump Load Current

0.2110%A

Pump Power Consumption

2.52W

Net Weight

131810g

LED Type

Addressable RGB LED

LED Rated Voltage

5VDC

LED Rated Current

0.4810%A

LED Rated Power

2.4W

LED Connector

3pin(+5V-D-G)

LED Control

M/B with 5V ADD-RGB Header

EAN

6933412726487

P/N

DP-GS-H12L-CSL240RGB
