All stock codes associated to this product
VL-DPHDV-4K, VLDPHDV4K, II33377

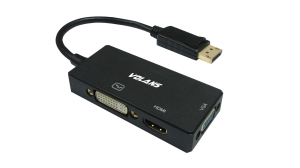

VOLANS VL-DPHDV-4K DisplayPort to HDMI (4K) / DVI / VGA
Converter
Overview
This 3-in-1 travel adapter offers a portablesolution for connecting your
DisplayPort computer to a VGA, DVI or HDMI display. The adapter is VESA
certified, to ensure compatibility with your DP computer.
All-in-one video connectivity, with travel in mind
Instead of filling your laptop bag with different converters for different
displays, this 3-in-1 adapter gives you all the video outputs youll need. With
VGA, DVI and HDMI outputs, this adapter lets you connect from your laptops
DisplayPort port to any boardroom or classroom display, without the
inconvenience of carrying a separate adapter for each display type. With support
for multiple video outputs and a lightweight, small-footprint design, this
adapter is the ideal plug-and-play solution for travel or BYOD (Bring Your Own
Device) applications around the office.
Astonishing picture quality with support for Ultra HD
4K
The HDMI output on this adapter supports Ultra HD 4K resolutions, providing
four times the picture quality of high-definition 1080p. The HDMI output is also
backward compatible with lower resolutions, such as 1080p and 720p, so the
adapter is also perfect for your legacy video equipment. The VGA and DVI outputs
also support a high-definition maximum resolution up to 1920 x 1200, so you can
still enjoy excellent video quality.
Specifications
|
WARRANTY
INFORMATION |
|
Warranty |
1
Year |
|
HARDWARE |
|
Adapter
Style |
Adapters |
|
Audio |
Yes |
|
Converter
Type |
Travel
A/V Adapters |
|
Output
Signal |
HDMI |
|
|
DVI-D
(DVI Digital) |
|
|
VGA |
|
PERFORMANCE |
|
Audio
Specifications |
HDMI
output 7.1 surround sound |
|
General
Specifications |
Only
one video output is supported on the video adapter at a time. If multiple
connections are made, only one of the outputs will
function. |
|
Maximum
Analog Resolutions |
1920
x 1200 |
|
Maximum
Digital Resolutions |
3840
x 2160 |
|
Supported
Resolutions |
HDMI
output: 3840 x 2160, 2560 x 1600, 1920 x 1200, 1920 x 1080, 1280
x 720 |
|
|
DVI
and VGA output: 1920
x 1200, 1920 x 1080, 1280 x 720 |
|
Video
Revision |
DisplayPort
1.2 |
|
Wide
Screen Supported |
Yes |
|
CONNECTOR(S) |
|
Connector
A |
1
DisplayPort Male Input |
|
Connector
B |
1
HDMI (19 pin) Female Output |
|
|
1
VGA (15 pin, High Density D-Sub) Female Output |
|
|
1
DVI-D (25 pin) Female Output |
|
SPECIAL
NOTES / REQUIREMENTS |
|
Note |
The
HDMI port is a passive port. |
|
The
DVI-D is a passive port. |
|
The
VGA port is an active port. |
|
ENVIRONMENTAL |
|
Humidity |
40%-50%RH |
|
Operating
Temperature |
0C
to 70C (32F to 158F) |
|
Storage
Temperature |
-10C
to 80C (14F to 176F) |
|
WHATS
IN THE BOX |
|
Included
in Package |
1
VL-DPHDV-4K |
|
2
User Manuel |
