All stock codes associated to this product
NH-L9I-17XX-CH-BK, NHL9I17XXCHBK
Noctua NH-L9i-17xx chromax.black Low Profile CPU Cooler
Overview
The NH-L9i-17xxchromax.black is an all-black version
of Noctuas award-winningNH-L9i-17xxlow-profile
quiet CPU cooler for Intel LGA1700 (LGA17xx family) based HTPCs and Small Form
Factor (SFF) builds. Thanks to the same proven heatsink design and NF-A9x14 PWM
fan, it stays true to the NH-L9i-17xxs successful formula of fusing a height of
only 37mm with strong performance and excellent quietness of operation, as well
as 100% RAM and PCIe compatibility. At the same time, the chromax.black version
with its black fan and black coated heatsink combines these assets with a sleek
stealth look. Topped off with the renowned SecuFirm2 low-profile mounting system
for Intel LGA1700 (LGA17xx family), Noctuas
enthusiast-gradeNT-H1thermal compound and a full
6-year manufacturers warranty, the NH-L9i-17xx chromax.black is a premium choice
for customers who seek an ultra-compact heatsink that looks just as great as it
cools.

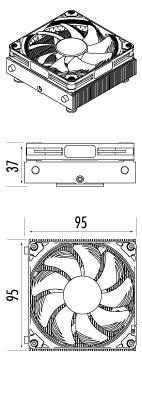

Specifications
Cooler
Specification |
|
Socket
compatibility |
Intel
LGA1700 |
Height
(without fan) |
23
mm |
Width
(without fan) |
95
mm |
Depth
(without fan) |
95
mm |
Weight
(without fan) |
355
g |
Height
(with fan) |
37
mm |
Width
(with fan) |
95
mm |
Depth
(with fan) |
95
mm |
Weight
(with fan) |
430
g |
Material |
Copper
(base and heat-pipes), aluminium (cooling fins), soldered joints &
nickel plating |
NSPR |
59 |
Fan
compatibility |
92x92x14mm,
92x92x25mm |
Scope
of delivery |
Black
NH-L9i heatsink |
|
NF-A9x14
HS-PWM chromax.black premium fan |
|
NA-RC7
Low-Noise Adaptor (L.N.A) |
|
NT-H1
high-grade thermal compound |
|
Black
SecuFirm2 mounting kit |
|
Black
screws for 92x92x25mm fans |
|
Noctua
Metal Case-Badge |
Warranty |
6
Years |
FAN
Specification |
|
Model |
NF-A9x14
HS-PWM chromax.black |
Bearing |
SSO2 |
Max.
rotational speed (+/- 10%) |
2500
RPM |
Max.
rotational speed with L.N.A. (+/- 10%) |
1800
RPM |
Min.
rotational speed @ 20% PWM (+/-20%) |
600
RPM |
Max.
airflow |
57,5 m/h |
Max.
airflow with L.N.A. |
40,8 m/h |
Max.
acoustical noise |
23,6
dB(A) |
Max.
acoustical noise with L.N.A. |
14,8
dB(A) |
Input
power |
2,52
W |
Voltage
range |
12
V |
MTTF |
>
150.000 h |
