Noctua NF-B9-1600 - 92x92x25mm Fan, 1600rpm, 64.3m3/hour, 17.6dBA

IMG 1 of 1
No Longer Available
Part Number:
80411
(?) Brand:
Noctua Web Site
Manuf No:
NF-B9-1600
NFB91600
Shipping Weight:
0.25 KG (Includes product packaging)
Estimate Shipping
Details Files Images & Video
All stock codes associated to this product
, NFB91600, NF-B9-1600
NF-B9

The NF-B9's highly-optimised blade design achieves an exceptional level of airflow and static pressure that most other fans can only reach at much higher speeds. Bevelled blade tips, Vortex-Control Notches as well as Noctua's SC drive system and premium-grade SSO-Bearing ensure outstanding quietness and long-term stability.

BBT Bevelled Blade Tips
Due to advanced design measures like the bevelled blade tips, the NF-B9 is surprisingly quiet despite its outstanding airflow and pressure performance.

VCN Vortex-Control Notches
Psychoacoustic optimizations like the Vortex-Control Notches make the NF-B9's noise pattern more pleasant to the human ear.

SCD Smooth Commutation Drive
The new SC drive system reduces torque variations and thereby ensures improved running smoothness, particularly at lower speeds.

SSO Self-stabilizing oil-pressure bearing
Noctua's well proven SSO-Bearing technology guarantees supremely quiet operation and exceptional long-term stability.


Size   92x92x25 mm



Bearing   SSO-Bearing



Blade Geometry   NF-B9 Blade Design



Rotational Speed (+/- 10%)   1600 RPM



Rotational Speed with L.N.A. (+/- 10%)   1300 RPM



Rotational Speed with U.L.N.A. (+/- 10%)   1000 RPM



Airflow   64,3 m/h



Airflow with L.N.A.   52,6 m/h



Airflow with U.L.N.A.   41,1 m/h



Acoustical Noise   17,6 dB(A)



Acoustical Noise with L.N.A.   13,1 dB(A)



Acoustical Noise with U.L.N.A.   7,9* dB(A)



Static Pressure   1,61 mm H2O



Static Pressure with L.N.A.   1,09 mm H2O



Static Pressure with U.L.N.A.   0,64 mm H2O



Input Power   1,32 W



Input Current   0,11 A



Voltage Range   12 V



MTBF   > 150.000 h

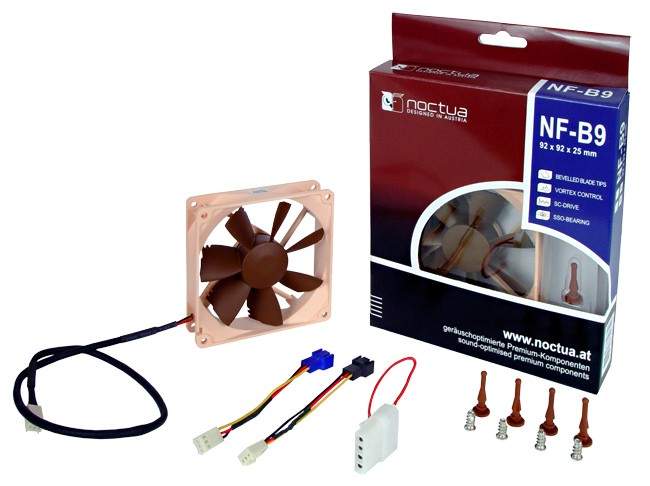

Scope of Delivery
  • Ultra-Low-Noise Adaptor (U.L.N.A.)
  • Low-Noise Adaptor (L.N.A.)
  • 4 Vibration Compensators
  • 3:4-Pin Adaptor
  • 4 Fan Screws

*extrapolated values
