Gigabyte GA-P55M-UD4 Motherboard
  • LGA1156, P55, 4xDDR3-2200, 2xPCI-Ex16 v2.0, 7xSATA-II, 1xeSATA, 1xATA-133, RAID, 1xGigLAN, 8Chl-HD, Firewire, mATX

IMG 1 of 2
No Longer Available
Part Number:
123245
(?) Brand:
Gigabyte Web Site
Manuf No:
GA-P55M-UD4
GAP55MUD4
Shipping Weight:
2 KG (Includes product packaging)
Estimate Shipping
Details Files Images & Video
All stock codes associated to this product
GAP55MUD4, GA-P55M-UD4
GA-P55M-UD4 (rev. 1.0)
Intel  P55 Chipset
  1. Industry leading 12 phase power VRM design for optimum power efficiency and thermal solution
  2. Leading quality standard of Ultra Durable 3 technology with 2oz copper PCB design
  3. Innovative Smart 6 technology for Smarter PC management
  4. Support Intel  Core i7/ Core i5 processors with LGA 1156 socket
  5. New Dynamic Energy Saver 2 technology enables best energy efficiency
  6. Support both ATI CrossFireX and NVIDIA SLI for ultimate graphics performance
  7. XHD technology accelerating hard drive performance with ease
  8. AutoGreen technology Greening your PC via Bluetooth cellphone
  9. Integrated eSATA/USB combo connectors for enhanced storage flexibility
  10. Patented GIGABYTE DualBIOS technology delivering highest level failure protection
  11. Supports Dolby Home Theater audio to create a stunning surround sound listening experience
  12. The Precision OV provides more precision voltage control for system
  13. Compatible with Windows 7 to deliver the best operation experience
  14. Small size for LAN party use and space saving purpose
  Overview

    Ultra Durable 3

Ultra Durable 3
GIGABYTE Ultra Durable 3 design, featuring 2 ounces of copper for both the Power and Ground layers which dramatically lowers system temperature by delivering a more efficient spreading of heat from critical areas of the motherboard such as the CPU power zone throughout the entire PCB. GIGABYTE's Ultra Durable 3 also lowers the PCB impedance by 50%, which helps to reduce electrical waste and further lowers component temperatures. A 2oz Copper layer design also provides improved signal quality and lower EMI (Electromagnetic Interference), providing better system stability and allowing for greater margins for overclocking...more
    Benefits of 2 oz Copper PCB



Cooler than traditional motherboards
Enhanced durability
Improved energy efficiency
Greater margins for overclocking... more

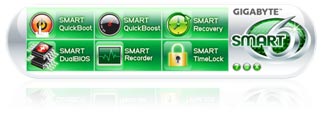

    Smart 6- A Smarter way for PC system Management
GIGABYTE Smart 6 is designed with user-friendliness in mind, and offers a combination of 6 innovative software utilities that provide easier and smarter PC system management. Smart 6 allows you to speed up system performance, reduce boot-up time, manage a secure platform and recover previous system settings easily with a click of the mouse button.


Smart QuickBoot
No more waiting for PC Boot up
 Smart DualBIOS
Smart personal reminder
Smart QuickBoost
One-click Overclocking		 Smart Recorder
Your PC's Watch Dog
Smart Recovery
Reverse time for you		 Smart TimeLock
Time Controller for PC
    Windows  7 WHQL Certified
The motherboard has obtained WHQL (Windows Hardware Quality Labs) certification for Windows 7 from Microsoft  for an Intel-based motherboard, setting the standard for future Windows 7 certified motherboards...more
  Dynamic Energy Saver 2
GIGABYTE Dynamic Energy Saver 2 incorporates a host of intelligent features that use a proprietary hardware and software design to considerably enhance PC system energy efficiency, Reduce power consumption and deliver optimized auto-phase-switching for the CPU, Memory, Chipset, VGA, HDD, and fans with a simple click of button.
    Intel  Core i7/ Core i5 LGA 1156 Processors



The Intel brand new computing architecture based on the innovation of micro-architecture transforms 3-chip solutions to a 2-chip platform. The next generation Intel  Core i7/ Core i5 processors with LGA1156 package integrate graphics and memory controller to support dual channel DDR3 memory. Supporting Intel Turbo Boost technology and Hyper-Threading Technology, Intel  Core i7/ Core i5 processors provide the overwhelming performance with optimized power efficiency.
  DDR3 2200+ Support
P55M-UD4 support Intel Core i7/ Core i5 processors delivering native support for DDR3 memory up to 2200+MHz by the enhanced design of GIGABYTE, Intel Core i7/ Core i5 processors feature the memory controller integrated directly into the processor die, rather than as part of the Northbridge as in previous generations, allowing for faster memory performance.
* Please refer "Memory Support List" for memory support information
  eSATA/USB combo
eSATA\USB combo ports provides significant convenience by supporting eSATA and USB devices in one port, and requires no additional power source when connecting eSATA devices through the applicable cable.
  XHD (eXtreme HardDrive)-Accelerating hard drive performance with ease
Accelerating system performance is made easy with the user friendly GIGABYTE eXtreme Hard Drive (X.H.D). GIGABYTE eXtreme Hard Drive (X.H.D) provides a quick and easy way to boost your hard drive performance simply by adding another hard drive.
  AutoGreen- Greening your PC via Bluetooth cellphone
AutoGreen technology can automatically save power for you simply by your bluetooth cell phone when you are away from your computer

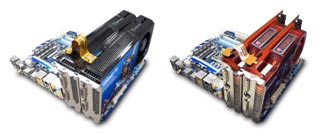

    Multi-display support with ATI CrossFireX and NVIDIA SLI
P55-UD5 supporting both ATI CrossFireX and NVIDIA SLI delivers the ultimate in graphics performance for gaming enthusiasts who demand the highest frame rates without compromising on resolution.
  Thermal Design
Inspired by the performance and sleek lines of today's modern racing vehicles, GIGABYTE's stylish thermal solution is designed for extreme performance and ultra coolness
  Dolby Home Theater Support
Delivers vivid surround sound for music, movies, and games, using two to eight speakers or any set of headphones
  Norton Internet Security
Fast, comprehensive, and up-to-the-minute protection against online threats. It safeguards your computer, identity, and home network without slowing you down. It sets a new standard for speed and makes online shopping, banking, and browsing safer and more convenient than ever.

  Specifications
CPU
  1. Support for an Intel  Core i7 series processor/Intel  Core i5 series processor in the LGA1156 package
    (Go to GIGABYTE's website for the latest CPU support list.)
  2. L3 cache varies with CPU
Chipset
  1. Intel  P55 Express Chipset
Memory
  1. 4 x 1.5V DDR3 DIMM sockets supporting up to 16 GB of system memory
  2. Dual channel memory architecture
  3. Support for DDR3 2200/1333/1066/800 MHz memory modules
  4. Support for non-ECC memory modules
  5. Support for Extreme Memory Profile (XMP) memory modules
(Go to GIGABYTE's website for the latest memory support list.)
Audio
  1. Realtek ALC889A codec
  2. High Definition Audio
  3. 2/4/5.1/7.1-channel
  4. Support for Dolby  Home Theater
  5. Support for S/PDIF In/Out
  6. Support for CD In
LAN
  1. 1 x RTL8111D chip (10/100/1000 Mbit)
Expansion Slots
  1. 1 x PCI Express x16 slot, running at x16 (PCIEX16)
  2. 1 x PCI Express x16 slot, running at x8 (PCIEX8) (The PCIEX16 and PCIEX8 slots conform to PCI Express 2.0 standard.)
  3. 1 x PCI Express x4 slot
  4. 1 x PCI slot
Multi-Graphics Technology
  1. Support for ATI CrossFireX/NVIDIA SLI technology (The PCIEX16 and PCIEX8 slots only.)
Storage Interface Intel  P55 Express Chipset:
  1. 5 x SATA 3Gb/s connectors (SATA2_0, SATA2_1, SATA2_2, SATA2_3, SATA2_4) supporting up to 5 SATA 3Gb/s devices
  2. 1 x eSATA 3Gb/s connector (eSATA/USB Combo) on the back panel supporting up to 1 SATA 3Gb/s device
  3. Support for SATA RAID 0, RAID 1, RAID 5, and RAID 10
GIGABYTE SATA2 chip:
  1. 1 x IDE connector supporting ATA-133/100/66/33 and up to 2 IDE devices
  2. 2 x SATA 3Gb/s connectors (GSATA2_0, GSATA2_1) supporting up to 2 SATA 3Gb/s devices
  3. Support for SATA RAID 0, RAID 1, and JBOD
iTE IT8720 chip:
  1. 1 x floppy disk drive connector supporting up to 1 floppy disk drive
USB
  1. Integrated in the Chipset
  2. Up to 14 USB 2.0/1.1 ports (10 on the back panel, including 1 eSATA/USB Combo, 4 via the USB brackets connected to the internal USB headers)
IEEE 1394
  1. T.I. TSB43AB23 chip
  2. Up to 2 IEEE 1394a ports (1 on the back panel, 1 via the IEEE 1394a bracket connected to the internal IEEE 1394a header)
Internal I/O Connectors
  1. 1 x 24-pin ATX main power connector
  2. 1 x 8-pin ATX 12V power connector
  3. 1 x floppy disk drive connector
  4. 1 x IDE connector
  5. 7 x SATA 3Gb/s connectors
  6. 1 x CPU fan header
  7. 2 x system fan headers
  8. 1 x power fan header
  9. 1 x front panel header
  10. 1 x front panel audio header
  11. 1 x CD In connector
  12. 1 x S/PDIF In header
  13. 1 x S/PDIF Out header
  14. 2 x USB 2.0/1.1 headers
  15. 1 x IEEE 1394a header
  16. 1 x power button
  17. 1 x clearing CMOS button
  18. 1 x reset button
Back Panel Connectors
  1. 1 x PS/2 keyboard or PS/2 mouse port
  2. 1 x coaxial S/PDIF Out connector
  3. 1 x optical S/PDIF Out connector
  4. 9 x USB 2.0/1.1 ports
  5. 1 x eSATA/USB Combo connector
  6. 1 x IEEE 1394a port
  7. 1 x RJ-45 port
  8. 6 x audio jacks (Center/Subwoofer Speaker Out/Rear Speaker Out/ Side Speaker Out/Line In/Line Out/Microphone)
I/O Controller
  1. iTE IT8720 chip
H/W Monitoring
  1. System voltage detection
  2. CPU/System temperature detection
  3. CPU/System/Power fan speed detection
  4. CPU overheating warning
  5. CPU/System/Power fan fail warning
  6. CPU/System fan speed control
BIOS
  1. 2 x 16 Mbit flash
  2. Use of licensed AWARD BIOS
  3. Support for DualBIOS
  4. PnP 1.0a, DMI 2.0, SM BIOS 2.4, ACPI 1.0b
Unique Features
  1. Support for @BIOS
  2. Support for Q-Flash
  3. Support for Xpress BIOS Rescue
  4. Support for Download Center
  5. Support for Xpress Install
  6. Support for Xpress Recovery2
  7. Support for EasyTune
  8. Support for Dynamic Energy Saver 2
  9. Support for Smart 6
  10. Support for Q-Share
Bundle Software
  1. Norton Internet Security (OEM version)
Operating System
  1. Support for Microsoft  Windows 7/Vista/XP
Form Factor
  1. Micro ATX Form Factor; 24.4cm x 24.4cm
Remark
  1. Due to different Linux support condition provided by chipset vendors, please download Linux driver from chipset vendors' website or 3rd party website.
  2. Due to most hardware/software vendors no longer offer support for Win9X/ME. If some vendors still has Win9X/ME drivers available, we will publish on website.
