All stock codes associated to this product
ADESPCFT

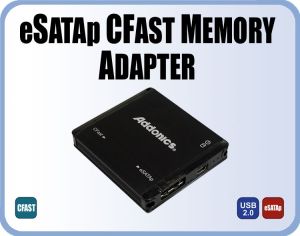

eSATAp CFast Memory Adapter
Package content: eSATAp CFast Memory Adapter, 1 foot eSATAp cable, 3 foot USB-A to mini USB power cable
This new eSATAp CFast Memory Adapter is the ideal solution for connecting any CFast media to eSATA or the new eSATA USB Hybrid Port. By using the optional Addonics eSATA - USB adapter, the CFast media can also be accessed via the ubiquitous USB port found on many systems.
CFast is the latest Compact Flash media standard with native SATA interface to achieve much higher data throughput than current CF standard. The current generation of CFast media that we have tested show a data throughput of around 100 MB/sec. To learn more about the CFast standard, please review the following web page https://www.hsc-us.com/pdf/Evolution_of_cf_whitepaper.pdf
The eSATA USB Hybrid port (EUHP) is a new port commonly found on new generations of Notebook computers. This new port works with both standard eSATA and Hybrid eSATA power cable (eSATAp). When connecting this CFast adapter to EUHP with an eSATAp cable, the CFast adapter can get power and data connections at the same time via a single cable.
Product Features

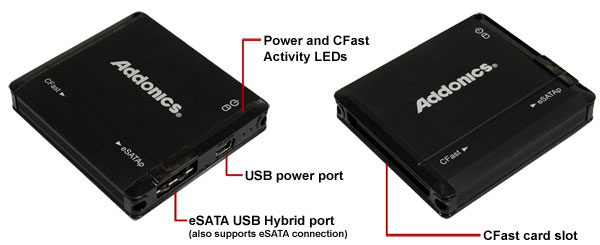

- Reads and writes to any CFast card through eSATA port or the new eSATA USB 2.0 Hybrid port (EUHP).
- Includes eSATAp cable to power card reader directly from EUHP.
- Mini USB port for USB power input when connecting to regular eSATA port
- Maximum throughput of 600 MB/sec (SATA III standard)
- Hot swap support when attached to eSATA port that supports this feature
- Power and drive activity LED
- Power via USB or EUHP
- OS Independent, no software driver to install
- Connect to USB port with the optional Addonics eSATA - USB adapter
Specifications
- eSATA USB Hybrid port
- SATA I, II, III compliant
- Dimensions: 65mm(W) x 60mm(D) x 10mm(H)
- Weight: 44g
- OS Independent, no software driver required
- Operating temperature range: 0 C to +70 C
- Operating humidity range: 5% to 90%
- Storage temperature range: -40 C to +85 C
- Storage humidity range: 5% - 95% (non condensing)
- 1 year warranty
