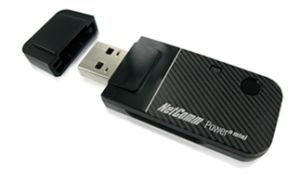

The NetComm NP900n is a world class Wireless N USB Adapter. Powered with advanced Wireless N technology, this USB Adapter can provide wireless speeds of up to 150Mbps1 . This Next Generation Wireless standard utilises advanced MIMO (Multi-In, Multi-Out) technology, which allows you to enjoy network applications with significantly improved reliability.
1 Maximum wireless signal rate and coverage values are derived from IEEE Standard 802.11g and 802.11n draft 2.0 specifications. Actual wireless speed and coverage are dependent on network and environmental conditions included but not limited to volume of network traffic, building materials and construction/layout
TECHNICAL SPECIFICATIONS
PRODUCT DESCRIPTION
The NP910n acts as a high performance 11b/g/n USB adapter. It supports 1T1R MIMO architecture.
PACKAGE CONTENT
• 1x 802.11n USB adapter (NP910n)
• 1x CD (User’s Manual)
• 1x QSG
Technical Specifications
Hardware Specifications
• Standard IEEE802.3, IEEE802.3u, IEEE802.11b, IEEE802.11g,
• 802.11n (2.0)
Physical Interface
• USB 2.0
Operating Voltage
• 3.3V
LED Status
• Link Activity
Antenna
• Internal Antenna
RF SPECIFICATION
Frequency Band
• 2.400-2.484 GHz
Modulation Technology
• OFDM: BPSK, QPSK, 16-QAM, 64-QAM
• DBPSK, DQPSK, CCK
Operating Channels
• 13 for Australia
Wireless Setting
• Operation Mode – Client mode
• Wireless Mode – 11b/ 11g /11n
• Channel Selection (Setting varies by Country)
• Channel Bandwidth (Auto, 20Mhz, 40Mhz)
• Transmission Rate
-11g: Best. 54, 48, 36, 24, 18, 12, 11, 9, 6, 5.5, 2, 1 in Mbps
• Guard Interval 800ns Guard Interval 400ns
Receive Sensitivity (Typical)
• 2.412~2.472G(IEEE802.11b) (1Rx)
<= -86 dBm
• 2.412~2.472G(IEEE802.11g) (1Rx)
<= -88 dBm
• 2.412~2.472G(IEEE802.11n) (1Rx)
<= -86 dBm
Available transmit power
• 2.412~2.472G(IEEE802.11b)
>= 16dBm @1~11Mbps
• 2.412~2.472G(IEEE802.11g)
>= 16 dBm @6Mbps
>= 12 dBm @54Mbps
• 2.412~2.472G(IEEE802.11n)
>= 16dBm
Wireless
• WPA/WPA2 (AES, 64,128-WEP with shared-key authentication)
• WPS PIN, PBC (WiFi Protected Setup)
• QoS-WMM
Drivers
Windows XP 32/64, 2000, Vista32/64, Mac OS X support
ENVIRONMENT & PHYSICAL
Temperature Range
• 0 to 45° C - Operating,
• -10 to 70 ° C - Storage
Humidity (non-condensing)
• 15%-95% typical
