All stock codes associated to this product
TTTR800PCAU, TT-TR-800PCAU
TR-800P
- ATX 12V V2.3 enables most reliable and robust power delivery.
- Stable 800W continuous output (peak power 960W) @ 40 operating environment.
- Robust and dedicated single +12V output provides superior performance under all types of system loading.

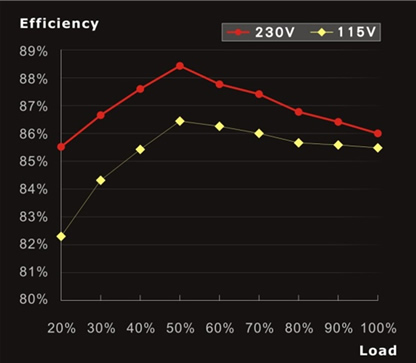

- 80 PLUS Bronze Certified: with 82-88% efficiency @ 20-100% load under real world load conditions.
- Double-forward switching circuitry offers low power loss and high reliability.
- Universal AC input 100V~240V automatically scans and detects the correct voltage.
- High quality 105 Japanese main capacitor provide uncompromised performance and reliability.
- 99% Active Power Factor Correction provides clean and reliable power to your system.

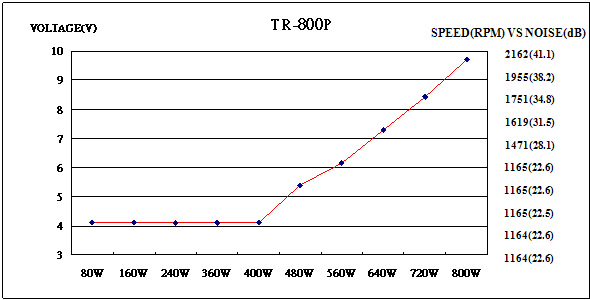

- Ultra-silent operation with intelligent 12cm cooling fan speed control.
- Intel & AMD CPU compliant.
- Nvidia & ATI/AMD graphic card compatible.
- Dimension: 150mm(W)x86mm(H)x140mm(L).
- High reliability: MTBF>100,000 hours.
- Built in industrial-grade protections: Over Current, Over Voltage, Over Power, Under Voltage and Short-Circuit protections.
- Safety / EMI : UL/ CUL, VDE, CE, FCC, CB, GOST and BSMI certified.
Latest ATX 12V V2.3 & EPS 12V 2.91 design enables robust and reliable power delivery.
120 mm Fan High thermal
Performance.
Next generation graphic cards with 6+2P(8P) PCI Express connector.
8-Pin EPS connector enables support for latest Intel and AMD processors today.
High Quality 105°C Japanese Electrolytic Capacitor
105°C Japanese main capacitor provides
uncompromised performance and reliability.
Industrial Grade Protection
Built in industrial-grade protections: Over Current, Over Voltage,
Under Voltage, Over Power and Short-Circuit protections

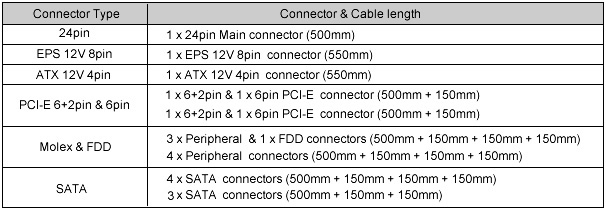

Main Power
Connector x 1
EPS 12V (8Pin) x 1
PCI-E 6Pin x 2
PCI-E 8Pin (6+2pin)
x 2
ATX 12V (4Pin) x 1
SATA (5 Pin) x 7
Peripheral (4 Pin) x 7
FDD (4 Pin) x 1
80 Plus Bronze Certified
New TR2 Series saves energy through its high energy efficiency of up to 88% and is 80 PLUS Bronze certified
ErP Ready
New TR2 Series fulfils the EU guideline for ErP (Energy-related Products) that are scheduled to apply starting in 2010.
Supports Energy Star 5.0* energy standard:
New TR2 Series is suitable for use in Energy Star-compatible computers.
Supports Intel Deep Power Down C6 Status:
New TR2 Series helps your PC system operate more power efficiently.
Corresponds to the EU directives on WEEE and RoHS:
Thermaltake considers its full impact on the environment during manufacturing and maintains green facilities to ensure Toughpower Grand meets WEEE & RoHS requirements.
Specifications
|
GENERAL:
|
|
| - Wattage |
800Watts |
| - Fan |
120 mm
2700 RPM 10% |
| - Efficiency |
86% + |
| - PFC |
Active PFC |
| - Hold-Up Time |
25ms |
| - Switches |
ATX Logic on-off additional power rocker switch |
| - Motherboard Connectors |
24-pin Main Connector
8-pin Power Connector
4-pin Power Connector |
| - Power Good Signal |
100-500 ms |
| - Form Factor |
ATX 12V 2.3 & EPS 12V 2.91 |
| - Dimension |
5.5 x 5.9 x 3.3 inch (L)x(W)x(H)
140 x 150 x 86 mm (L)x(W)x(H) |
| - Warranty |
5 Years |
|
- Certifications
|
UL/ CUL, VDE, CE, FCC, CB, GOST and BSMI certified |
|
AC INPUT:
|
|
| - Input Voltage |
100VAC~240 VAC |
| - Input Current |
100VAC / 12.5A max, 240 VAC / 6A max
|
| - Input Frequency Range |
50 ~ 60 Hz |
| - Inrush Current |
|
| - Operating Range |
|
| - MTBF |
>100,000 hours |
|
- RFI / EMI
|
UL/ CUL, VDE, CE, FCC, CB, GOST and BSMI certified |
|
DC OUTPUT:
|
|
|

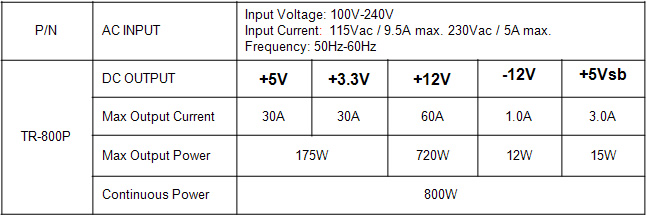

- Output Table
|
|
|
ENVIRONMENT:
|
|
| - Operating Temperature |
10 to 40 |
| - Storage Temperature |
-20 to 80 |
| - Operating Humidity |
5% to 95%, non-condensing |
|
- Storage Humidity
|
5% to 95%, non-condensing |
|
PROTECTION:
|
|
| - Over Voltage Protection |
Yes |
| - Over Current Protection |
Yes |
| - Over Load Protection |
Yes |
| - Over Termperature Protection |
Yes |
| - Under Voltage Protection |
Yes |
| - Short Circuit Protection |
Yes |
|
