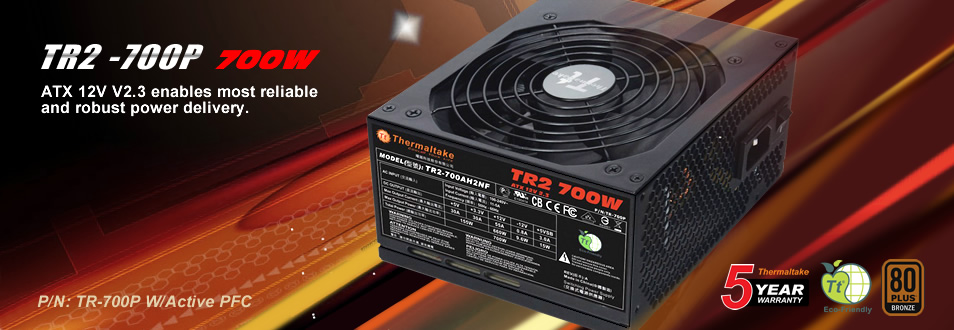

TR-700PCAU
- ATX 12V V2.3 enables most reliable and robust power delivery.
- Stable700W continuous output (peak power 800W) @ 40 ?operating environment.
- Robust and dedicated single +12V output provides superior performance under all types of system loading.
- 80 PLUS® Bronze Certified: with 82-88% efficiency @ 20-100% load under real world load conditions.
- Double-forward switching circuitry offers low power loss and high reliability.
- Universal AC input 100V~240V automatically scans and detects the correct voltage.
- High quality 105 ? Japanese main capacitor provide uncompromised performance and reliability.
- 99% Active Power Factor Correction provides clean and reliable power to your system.

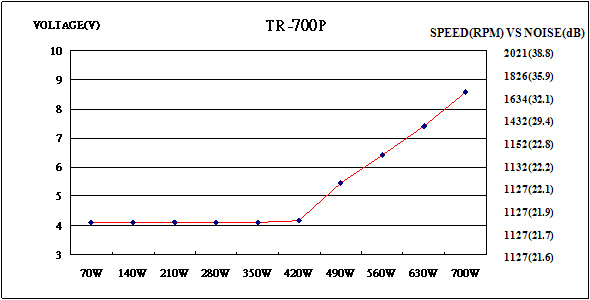

- Ultra-silent operation with intelligent 12cm cooling fan speed control.
- Intel® & AMD CPU compliant.
- Nvidia® & ATI/AMD graphic card compatible.
- Dimension: 150mm(W)x86mm(H)x140mm(L).
- High reliability: MTBF>100,000 hours.
- Built in industrial-grade protections: Over Current, Over Voltage, Over Power, Under Voltage and Short-Circuit protections.
- Safety / EMI : UL/ CUL, VDE, CE, FCC, CB, GOST and BSMI certified.
Latest ATX 12V V2.3 & EPS 12V 2.91 design enables robust and reliable power delivery.
120 mm Fan –High thermal Performance.
Next generation graphic cards with 6+2P(8P) PCI Express connector.
8-Pin EPS connector enables support for latest Intel and AMD processors today.
High Quality 105C Japanese Electrolytic Capacitor 105C
Japanese main capacitor provides uncompromised performance and reliability.
Industrial Grade Protection
Built in industrial-grade protections: Over Current, Over Voltage, Under Voltage, Over Power and Short-Circuit protections

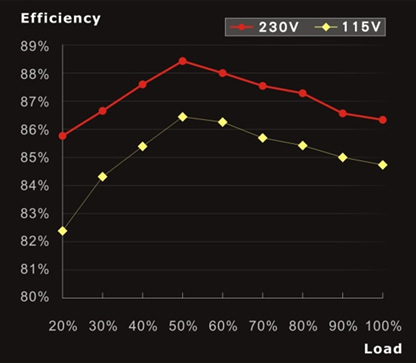

80 Plus Bronze Certified
New TR2 Series saves energy through its high energy efficiency of up to 88% and is 80 PLUS Bronze certified
ErP Ready
New TR2 Series fulfils the EU guideline for ErP (Energy-related Products) that are scheduled to apply starting in 2010.
Supports Energy Star 5.0* energy standard:
New TR2 Series is suitable for use in Energy Star-compatible computers.
Supports Intel Deep Power Down C6 Status:
New TR2 Series helps your PC system operate more power efficiently.
Corresponds to the EU directives on WEEE and RoHS:
Thermaltake considers its full impact on the environment during manufacturing and maintains green facilities to ensure Toughpower Grand meets WEEE & RoHS requirements.

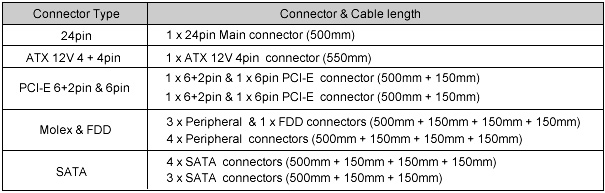

Main Power
Connector x 1
ATX 12V (4x4pin) x 1
PCI-E 6Pin x 2
PCI-E 8Pin (6+2pin)
x 2
SATA (5 Pin) x 7
Peripheral (4 Pin) x 7
FDD (4 Pin) x 1
Specifications
|
GENERAL:
|
|
| - Wattage |
700 Watts |
| - Fan |
120 mm
2700 RPM 10% |
| - Efficiency |
86% + |
| - PFC |
Active PFC |
| - Hold-Up Time |
30ms |
| - Switches |
ATX Logic on-off additional power rocker switch |
| - Motherboard Connectors |
24-pin Main Connector
8-pin Power Connector
4-pin Power Connector |
| - Power Good Signal |
100-500 ms |
| - Form Factor |
ATX 12V 2.3 & EPS 12V 2.91 |
| - Dimension |
5.5 x 5.9 x 3.3 inch (L)x(W)x(H)
140 x 150 x 86 mm (L)x(W)x(H) |
| - Warranty |
5 Years |
|
- Certifications
|
|
|
AC INPUT:
|
|
| - Input Voltage |
100VAC~240 VAC |
| - Input Current |
100VAC / 11A max
240 VAC / 5A max |
| - Input Frequency Range |
50 ~ 60 Hz |
| - Inrush Current |
|
| - Operating Range |
|
| - MTBF |
>100,000 hour |
|
- RFI / EMI
|
UL/ CUL, VDE, CE, FCC, CB, GOST and BSMI certified |
|

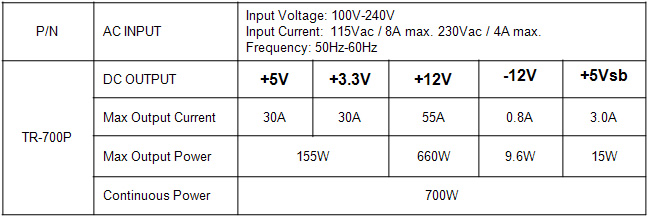

DC OUTPUT:
|
|
|
ENVIRONMENT:
|
|
| - Operating Temperature |
10 to 40 |
| - Storage Temperature |
-40 to 80 |
| - Operating Humidity |
5% to 95%, non-condensing |
|
- Storage Humidity
|
5% to 95%, non-condensing |
|
PROTECTION:
|
|
| - Over Voltage Protection |
Yes |
| - Over Current Protection |
Yes |
| - Over Load Protection |
Yes |
| - Over Termperature Protection |
Yes |
| - Under Voltage Protection |
Yes |
| - Short Circuit Protection |
Yes |
|
