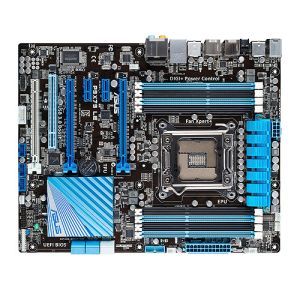

ASUS P9X79 LE Motherboard
LGA2011, X79, 8xDDR3-1333, 2xPCI-Ex16 v3.0/2.0, 2xSATA-III, 4xSATA-II, 2xeSATA-III, RAID, 1xGigLAN, 8Chl-HD, USB3.0, ATX

No Longer Available

Part Number:

206172

(?) Brand:

ASUS Web Site

Manuf No:

P9X79-LE
P9X79LE

Shipping Weight:

2.5 KG (Includes product packaging)
Estimate Shipping

Add to wishlist

Write a Review

Details Files Images & Video

All stock codes associated to this product

P9X79LE, P9X79-LE

P9X79 LE

Absolute Performance with Digital Power Control for CPU and DRAM on the Intel X79 platform

Dual Intelligent Processors 3 with New DIGI+ Power Control
Support for up to 64GB of system memory with an 8-DIMM design
Remote GO! - One-stop PC Remote Control and Home Entertainment
USB 3.0 Boost - Faster USB 3.0 Transmission with UASP
Direct Key - A Dedicated Button to Access the BIOS Directly
UEFI BIOS - Full-scale performance tuning with easy BIOS Interface
USB BIOS Flashback - Easy, worry-free USB BIOS Flashback with Hardware-based Design
Windows 8 Ready Assured Compatibility

Overview

Dual Intelligent Processors 3 with New DIGI+ Power Control

The worlds first Dual Intelligent Processors from ASUS pioneered twin onboard chips - TPU (TurboV Processing Unit) and EPU (Energy Processing Unit). Third generation Dual Intelligent Processors with New DIGI+ Power Control include three digital voltage controllers, allowing ultra-precise DRAM tuning in addition to ultra-precise CPU voltage control. This evolution of innovative and industry-leading ASUS technology provides super-accurate voltage tuning for better efficiency, stability and performance.

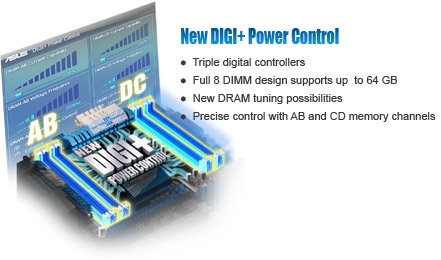

New DIGI+ Power Control

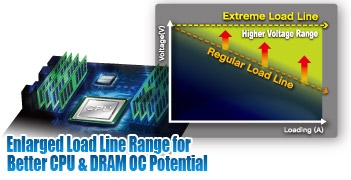

Enlarged Load Line Range for Better CPU & DRAM OC Potential

All-New Digital Power Control for both CPU and DRAM

ASUS X79 motherboards include New DIGI+ Power Control with three digital voltage controllers, including all-new DRAM controllers that offers ultra-precise memory tuning in addition to ultra-precise CPU voltage control. This evolution of innovative, industry-leading ASUS technology provides the best in class control for better efficiency, stability and performance.

Best in class power efficiency and stability

Two critical components work perfectly together to match digital power signal (SVID) requests from the CPU, with ultra-fast sensing and response to efficiently deliver the right level of power on demand. Accurate power reduces wasteful voltage imprecision, and provides more a stable CPU and memory setup.

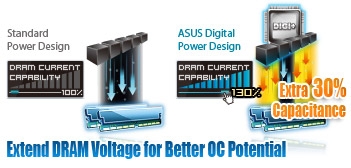

Extend DRAM Voltage for Better OC Potential

Increased CPU and DRAM overclocking range

With programmable digital controllers onboard, users can adjust CPU and DRAM voltage and VRM switching frequencies for various overclocking scenarios. New DRAM tuning possibilities make the most of DDR3 memory for better performance with VCCSA load line calibration and 30% more DRAM current capacity. Dual digital voltage controllers provide two separate outputs for AB and CD memory channels respectively. Thanks to a slew of power options teamed with an extensive and intuitive UEFI BIOS, overclocking very large memory setups is no more difficult than mainstream motherboards.

VCCSA (system agent voltage) relates to the CPU DRAM controller. ASUS power control now provides more VCCSA options to facilitate extreme DRAM overclocking.

8 DIMM Design - X79 Done Right

Support for up to 64GB of system memory with an 8-DIMM design on ASUS X79 motherboards provides the capacity for users to make full use of modern 64-bit software, ideal for rendering detailed images or manipulating large files without the bottlenecks of conventional storage. It also allows users to set up big RAM disks and speed up frequently accessed programs, minimizing the impact of storage transfer delays while maximizing user benefit.

ASUS Exclusive Features

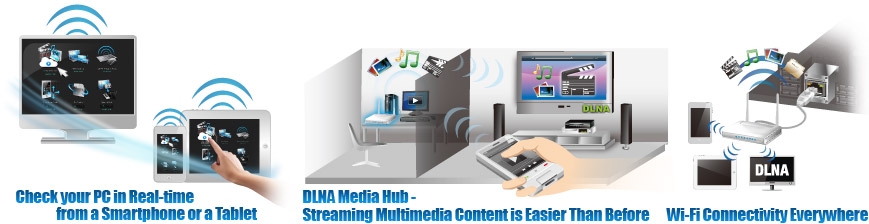

Remote GO!

One-stop PC Remote Control and Home Entertainment

Remote GO! links PCs, tablets, smartphones and TVs wirelessly together through an existing LAN cable and router setup. It allows users to stream multimedia content from PC to DLNA devices, access their computer anywhere using their mobile device at home, while also allowing easy file transfers between your computer and mobile device. It provides seamless environment for a futuristic connected lifestyle with three useful functions: DLNA Media Hub, Remote Desktop and File Transfer.

File Transfer:

Send and share files between your PC and smart devices* with only a right click on the mouse.

iPad/iPhone can send, but not receive files from the PC

Set up Your Home PC with Remote GO!

1.Wi-Fi environment setup: use an existing LAN cable and router setup to connect PC and smart devices on the same home network
2.Install Remote GO! software on your PC
3.Download Wi-Fi GO! Remote to your smart devices (Supported Systems: iOS 4.0 or later & Android 2.3 or later)
4.Setup complete - get three useful free apps with ASUS Remote GO!

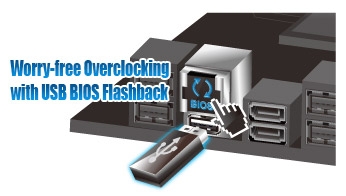

USB BIOS Flashback

Simple Plug & Press - Hardware-based BIOS Flashback

A truly revolutionary hardware-based update solution. USB BIOS Flashback offers the most convenient way ever to update the BIOS! It allows users to update new UEFI BIOS versions even without hardware such as a CPU or DRAM installed into the motherboard. Just plug in a USB flash drive containing the BIOS file, and press the BIOS Flashback button for 3 seconds with the power supply connected. The UEFI BIOS will then automatically update without requiring further interaction. With its new, complementary Windows application, users can regularly check for UEFI BIOS updates and download the latest BIOS automatically. Hassle-free updating for the ultimate convenience!

The image beside is for reference. Please see the BIOS Flashback button on the motherboard for actual appearance.

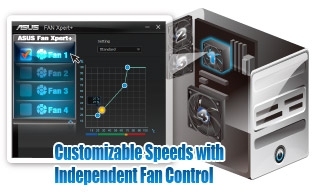

Fan Xpert+

Customizable speeds with independent fan control

Hardware-level ASUS Fan Xpert+ allows users to independently adjust both CPU and case fan speeds with multiple dedicated controllers based on different ambient temperatures, climate conditions and system loads. Built-in profiles offer flexible automatic and manual fan speed controls to achieve a quiet and cool computing environment.

USB 3.0 Boost

Faster USB 3.0 Transmission with UASP

New ASUS USB 3.0 Boost technology supports UASP (USB Attached SCSI Protocol), the latest USB 3.0 standard. With USB 3.0 Boost technology, a USB device's transmission speed is significantly increased up to 170%, adding to an already impressive fast USB 3.0 transfer speed. ASUS software automatically accelerates data speeds for compatible USB 3.0 peripherals without the need for any user interaction.

World’s 1st USB 3.0 UASP Support – 170% faster instantly
Complete USB 3.0 Solution – Performance boost for most USB devices

Simple Plug & Boost – Auto detection design ensures best performance always

AI Suite II

One-stop Access to Innovative ASUS Features

With its user-friendly interface, ASUS AI Suite II consolidates all exclusive ASUS features into one simple-to-use package with an elegant design theme. It allows users to supervise overclocking, energy management, fan speeds, voltage, and sensor readings. This all-in-one software offers diverse and easy to use functions, with no need to switch back and forth between different utilities.

DirectKey

A Dedicated Button to Access the BIOS Directly

Designed for users requiring frequent BIOS access, you can easily enter the BIOS automatically when the PC is on standby power with a press of a button. It saves you time during boot-up from having to repeatedly press the DEL key. Convenience and ease at its best!

Latest Transfer Technology

PCIe 3.0 Ready

The latest PCI Express bus standard delivers improved encoding for twice the performance of current PCIe 2.0. Total bandwidth for a x16 link reaches a maximum of 32GB/s, double the 16GB/s of PCIe 2.0 (in x16 mode). PCIe 3.0 provides users unprecedented data speeds, combined with the convenience and seamless transition offered by complete backward compatibility with PCIe 1.0 and PCIe 2.0 devices. Its a must-have feature for PC users aiming to improve and optimize graphics performance, as well as have the latest, most future-proof technology.

Complete USB 3.0 Integration

Double USB Access, Double Convenience ASUS facilitates strategic USB 3.0

accessibility for both the front and rear panel - 4 USB 3.0 ports in total. Experience the latest plug & play connectivity at speeds up to 10 times faster than USB 2.0. The P9X79 LE affords greater convenience to high speed connectivity.

CPU, Chipset and Graphics features

2nd Generation Intel Core i7 Processor family for the LGA 2011 Socket

This motherboard supports the latest 2nd Generation Intel Core i7 Processor family for the LGA 2011 Socket, with memory and PCI Express controllers integrated to quad-channel (8 DIMMs) DDR3 memory and 40 PCI Express 3.0 lanes. This provides great graphics performance. 2nd Generation Intel Core i7 Processor family for the LGA 2011 Socket is one of the most powerful and energy efficient CPU in the world.

Intel X79 Express Chipset

The Intel X79 Express

Chipset is the latest single-chipset design that supports the 2nd Generation Intel Core i7 Processor family for the LGA 2011 Socket. It improves performance by utilizing serial point-to-point links, allowing for increased bandwidth and stability. Additionally, the X79 comes with 2 SATA 6Gb/s and 4 SATA 3Gb/s ports for faster data retrieval, doubling the bandwidth of current bus systems

3-WAY SLI and Quad-GPU CrossFireX Support

Both SLI and CrossfireX architectures work flawlessly on new ASUS X79 boards, with PCI Express slots designed to accommodate the power of up to three current graphics cards. Whether for professional graphics work, heavy duty multimedia or dedicated gaming, more than ample graphics power can be applied whenever needed.

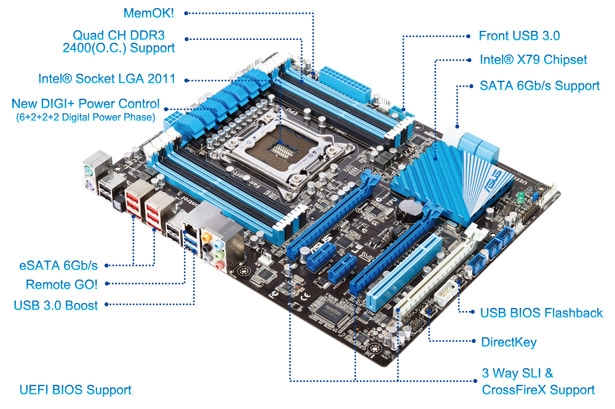

P9X79 LE Product Overview

Other ASUS Features

Socket 2011

Intel Socket 2011

TPU

The Ultimate Turbo Processor

EPU

Energy Efficiency All Around

Auto Tuning

Achieve extreme yet stable overclocking results automatically

100% Japan-made Solid Capacitor

Uses 100% Japan-made Solid Capacitor.

MemOK!

Quickly ensures memory boot compatibility.

Specifications

CPU	Intel Socket 2011 for 2^nd Generation Core i7 Processors Supports Intel Turbo Boost Technology 2.0 * Refer to www.asus.com for CPU support list
Chipset	Intel X79
Memory	8 x DIMM, Max. 64GB, DDR3 2400(O.C.)/2133(O.C.)/1866/1600/1333/1066 MHz Non-ECC, Un-buffered Memory Quad Channel Memory Architecture Supports Intel Extreme Memory Profile (XMP) * Hyper DIMM support is subject to the physical characteristics of individual CPUs. * Refer to www.asus.com or user manual for the Memory QVL (Qualified Vendors Lists).
Multi-GPU Support	Supports NVIDIA 3-Way SLI Technology Supports AMD Quad-GPU CrossFireX Technology
Expansion Slots	2 x PCIe 3.0/2.0 x16 (dual x16) ¹ 1 x PCIe 3.0/2.0 x16 (x8 mode) ¹ 2 x PCIe 2.0 x1 1 x PCI
Storage	Intel X79 chipset : 2 x SATA 6Gb/s port(s), gray 4 x SATA 3Gb/s port(s), blue Support Raid 0, 1, 5, 10 ASMedia ASM1061 controller : 2 x eSATA 6Gb/s port(s), red
LAN	Realtek 8111F, 1 x Gigabit LAN Controller(s)
Audio	Realtek ALC892 8-Channel High Definition Audio CODEC - Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking Audio Feature : - Absolute Pitch 192kHz/ 24-bit True BD Lossless Sound - Blu-ray audio layer Content Protection - Optical S/PDIF out port(s) at back panel
USB Ports	ASMedia USB 3.0 controller : 4 x USB 3.0 port(s) (2 at back panel, blue, 2 at mid-board) Intel X79 chipset : 14 x USB 2.0 port(s) (8 at back panel, black, 6 at mid-board)
Overclocking Features	Overclocking Protection : - ASUS C.P.R.(CPU Parameter Recall)
Special Features	ASUS Dual Intelligent Processors 3 with New DIGI+ Power Control : ASUS TPU : - Auto Tuning - TurboV ASUS EPU : - EPU ASUS Digital Power Design : - Industry leading Digital 6 + 2 Phase CPU Power Design - Industry leading Digital 2 + 2 Phase DRAM Power Design - CPU Power Utility - DRAM Power Utility ASUS Exclusive Features : - Remote GO! - USB BIOS Flashback - MemOK! - AI Suite II - Ai Charger - ASUS UEFI BIOS EZ Mode featuring friendly graphics user interface - USB 3.0 Boost ASUS Quiet Thermal Solution : - Stylish Fanless Design Heat-sink solution - ASUS Fan Xpert+ ASUS EZ DIY : - DirectKey - ASUS O.C. Profile - ASUS CrashFree BIOS 3 - ASUS EZ Flash 2 - ASUS MyLogo 2 - Multi-language BIOS ASUS Q-Design : - ASUS Q-Shield - ASUS Q-LED (CPU, DRAM, VGA, Boot Device LED) - ASUS Q-Slot - ASUS Q-DIMM - ASUS Q-Connector
Back I/O Ports	1 x PS/2 keyboard (purple) 1 x PS/2 mouse (green) 2 x eSATA 6Gb/s 1 x LAN (RJ45) port(s) 2 x USB 3.0 8 x USB 2.0 1 x Optical S/PDIF out 6 x Audio jack(s)
Internal I/O Ports	1 x USB 3.0 connector(s) support(s) additional 2 USB 3.0 port(s) (19-pin) 3 x USB 2.0 connector(s) support(s) additional 6 USB 2.0 port(s) 1 x TPM connector(s) 1 x COM port(s) connector(s) 2 x SATA 6Gb/s connector(s) 4 x SATA 3Gb/s connector(s) 1 x CPU Fan connector(s) (4 -pin) 1 x CPU OPT Fan connector(s) (4 -pin) 4 x Chassis Fan connector(s) (4 -pin) 1 x S/PDIF out header(s) 1 x 24-pin EATX Power connector(s) 1 x 8-pin ATX 12V Power connector(s) 1 x Front panel audio connector(s) (AAFP) 1 x System panel(s) (Q-Connector) 1 x DirectKey Button(s) 1 x DRCT header(s) 1 x MemOK! button(s) 1 x Clear CMOS jumper(s) 1 x USB BIOS Flashback button(s)
Accessories	User's manual I/O Shield 2 x SATA 3Gb/s cable(s) 2 x SATA 6Gb/s cable(s) 1 x SLI bridge(s) 1 x Q-connector(s) (2 in 1)
BIOS	64 Mb Flash ROM, UEFI BIOS, PnP, DMI2.0, WfM2.0, SM BIOS 2.6, ACPI 2.0a, Multi-language BIOS, ASUS EZ Flash 2, ASUS CrashFree BIOS 3
Manageability	WfM 2.0, DMI 2.0, WOL by PME, WOR by PME, PXE
Support Disc	Drivers ASUS Utilities ASUS Update Anti-virus software (OEM version)
Form Factor	ATX Form Factor 12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )
Note	*1: This motherboard is ready to support PCIe 3.0 SPEC. Functions will be available when using PCIe 3.0-compliant devices. Please refer to www.asus.com for updated details.
