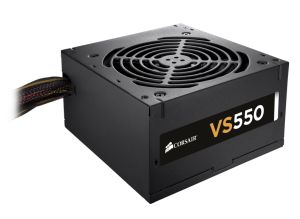

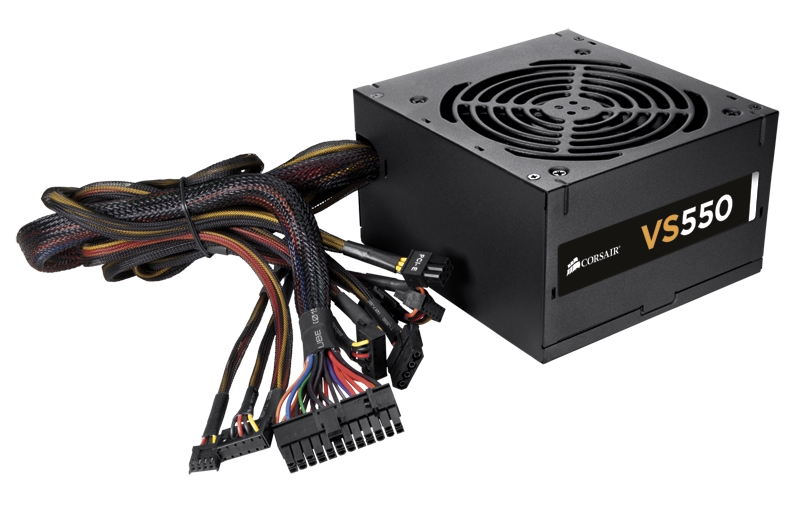

VS Series VS550 550 Watt 80 PLUS Certified Power Supply


VS550: the entry-level 240V power supply with high-end features.

The Corsair VS550 is a great choice if youre building a home or office system with lower power demands, but you still demand the compatibility and reliability that Corsair is known for.

SKU# CP-9020050-WW

Overview

VS550: the entry-level 240V power supply with high-end features.

The Corsair VS550 is a great choice if youre building a home or office system with lower power demands, but you still demand the compatibility and reliability that Corsair is known for.

Real power.

The VS550 delivers a guaranteed 550 Watts of continuous power. With 0.99 Active Power Factor Correction, you get the peace of mind from knowing that your components are protected from uneven power delivery. And, a dedicated single +12V rail saves you from the hassle of balancing your components across multiple power cables.


The powder-coated case and black-sleeved cables make average PCs look a little less average.

Package contents
  • VS Series power supply
  • AC power cord
  • Cable ties
  • Mounting screws

Compatibility

  • Conforms to ATX12V v2.31 standard, and is backward compatible with the ATX12V 2.2 and ATX12V 2.01 standards

Technical Specifications

  • A dedicated single +12V rail offers maximum compatibility with the latest components
  • 80 PLUS certified, delivering up to 85% energy efficiency under real-world load conditions
  • Active Power Factor Correction (PFC) with PF value of 0.99
  • AC input from 200~240VAC
  • Over-voltage, under-voltage, over-current, and short circuit protection provide maximum safety for your critical system components
  • High-quality capacitors provide uncompromised performance and reliability
  • A three year warranty and lifetime access to Corsair's legendary technical support and customer service
  • Safety Approvals: cTUVus, CE, CB, FCC Class B, TV, CCC, C-tick

Specifications:

  • Warranty: Three years
  • Dimension: 5.9"(W) x 3.4"(H) X 5.5"(L); 150mm(W) x 86mm(H) x 140mm(L)
  • Modular: No
  • Power: 550 Watts
  • 80 Plus: Certified
  • ATX Connector: 1
  • EPS Connector: 1
  • PCI-E Connector: 4
  • 4 Pin Peripheral Connector: 8
  • SATA Connector: 8
  • Floppy Connector: 2
  • MTBF: 100,000 hours

No additional files, specification sheets, guides or documentation found for product.

Warranty: 3-year Manufact.

Full manufacturers warranty details are available at the manufacturers (Corsair) web site.

Unless otherwise specified Techbuy is normally your first point of contact for warranty related returns, further information regarding our warranty policies and consumer guarantees is available on our policies and service & support pages.

To apply for return of a product just go to our returns page.

These terms are in addition to and do not affect any terms, conditions, guarantees and warranties implied by law.
