All stock codes associated to this product
NHU12S, NH-U12S, II17147

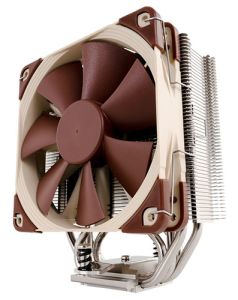

The NH-U12S is the latest 12cm model of Noctua’s classic U-series single tower CPU coolers, which have received more than 400 awards and recommendations from the international press. The S-version’s 45mm slim shape guarantees 100% compatibility with tall RAM modules and at the same time, its fine-tuned design and the class-leading NF-F12 FocusedFlow™ fan with PWM support for fully automatic speed control allow it to further improve its predecessor’s renowned quiet cooling performance. Topped off with the trusted, pro-grade SecuFirm2™ multi-socket mounting system, Noctua’s proven NT-H1 thermal compound and full 6 years manufacturer’s warranty, the NH-U12S is a complete premium quality solution that combines outstanding performance, quiet operation and excellent compatibility.
Award-winning NH-U12 series
The NH-U12S is the latest version of Noctua’s award-winning NH-U12 coolers. First introduced in 2005, the NH-U series has become a standard choice for premium quality quiet CPU coolers and won more than 400 awards and recommendations from leading international hardware websites and magazines.
100% RAM compatibility
Thanks to its slim design with only 45mm fin depth, the NH-U12S will not overhang the RAM slots even with two fans installed. This gives the user full access to the memory modules on all current CPU sockets and guarantees 100% compatibility with tall heatspreaders or optional memory fans.
Classic 120mm tower size for excellent overall compatibility
Standing 158mm tall, the NH-U12S is short enough t
o fit most modern mid- or high-end tower cases. Measuring 125mm wide (including fan and fan clips), the cooler stays clear of the top PCIe slot on standard ATX or Micro-ATX motherboards, ensuring best compatibility with SLI and CrossFire setups.
NF-F12 120mm Focused Flow™ fan
Recommended by more than 150 hardware publications and thousands of enthusiasts world-wide, the Noctua’s premium quality NF-F12 Focused Flow™ 120mm fan is renowned to combine superb static pressure, excellent heatsink performance and surprising quietness of operation.
PWM support and Low-Noise Adaptor
The NF-F12 120mm fan supplied with the NH-U12S supports PWM for convenient automatic speed control through the mainboard. In addition, the maximum fan speed can be reduced from 1500 to 1200rpm using the supplied Low-Noise Adaptor for even quieter operation.
Anti-vibration pads and fan-clips for second NF-F12 (optional)
For users who want to achieve even better performance by adding a second, optional NF-F12 fan to create a push/pull setup, the NH-U12S includes fan clips and an extra set of custom-designed anti-vibration pads that allow to off-set the rear fan by 5mm to improve acoustics in dual-fan mode.
SecuFirm2™ mounting system
Noctua’s SecuFirm2™ mounting systems have become synonymous with quality, safety and ease of use. Supporting Intel LGA115x (LGA1150, LGA1155, LGA1156), LGA2011 and AMD (AM3+, AM2+, FM1, FM2), the SecuFirm2™ mounting included with the NH-U12S guarantees perfect contact pressure and maximum convenience on all current sockets.
Compatibility with past and future sockets
Complying with the open SecuFirm standard, the NH-U12S can be made compatible with the older LGA1366 and LGA775 sockets using the optional NM-I3 mounting kit, which is provided by Noctua free of charge. If technically possible, Noctua will also provide upgrade kits for future sockets.
NT-H1 thermal compound
Having received more than 100 awards and recommendations from hardware journalists around the world, Noctua’s NT-H1 is a proven professional grade TIM solution that provides minimum thermal resistance, excellent ease of use and outstanding reliability.
6 years warranty
Noctua products are renowned for their impeccable quality and outstanding longevity. Like all Noctua fans, the supplied NF-F12 features an MTBF rating of more than 150.000 hours and the entire NH-U12S package comes with a full 6 years manufacturers warranty.
Specifications:
Socket compatibility |
|
Intel LGA2011 (Square ILM), LGA1156, LGA1155, LGA1150 & AMD AM2, AM2+, AM3, AM3+, FM1, FM2 (backplate required) |
|
|
|
Height (without fan) |
|
158 mm |
|
|
|
Width (without fan) |
|
125 mm |
|
|
|
Depth (without fan) |
|
45 mm |
|
|
|
Height (with fan) |
|
158 mm |
|
|
|
Width (with fan) |
|
125 mm |
|
|
|
Depth (with fan) |
|
71 mm |
|
|
|
Weight (without fan) |
|
580 g |
|
|
|
Weight (with fan) |
|
755 g |
|
|
|
Material |
|
Copper (base and heat-pipes), aluminium (cooling fins), soldered joints & nickel plating |
|
|
|
Fan compatibility |
|
120x120x25 |
|
|
|
Scope of Delivery |
|
NF-F12 PWM premium fan
Low-Noise Adaptor (L.N.A.)
NT-H1 high-grade thermal compound
SecuFirm2 Mounting Kit
Anti-vibration pads and fan-clips for second NF-F12
Noctua Metal Case-Badge
|
|
|
|
Warranty |
|
6 Years |
|
|
|
Fan specifications |
|
|
|
|
|
Model |
|
Noctua NF-F12 PWM |
|
|
|
Bearing |
|
SSO2 |
|
|
|
Max. Rotational Speed (+/- 10%) |
|
1500 RPM |
|
|
|
Max. Rotational Speed with L.N.A. (+/- 10%) |
|
1200 RPM |
|
|
|
Min. Rotational Speed (PWM) |
|
300 RPM |
|
|
|
Max. Airflow |
|
93,4 m/h |
|
|
|
Max. Airflow with L.N.A. |
|
74,3 m/h |
|
|
|
Max. Acoustical Noise |
|
22,4 dB(A) |
|
|
|
Max. Acoustical Noise with L.N.A. |
|
18,6 dB(A) |
|
|
|
Input Power |
|
0,6 W |
|
|
|
Voltage Range |
|
12 V |
|
|
|
MTBF |
|
> 150.000 h |
