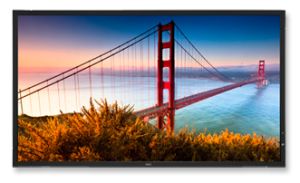

NEC X552S LED Commercial LCD Display - Black



The LED 55" NEC X552S offers customers a super-slim depth of 1.7” and a brighter screen than its predecessor. This industrial-strength, full HD LCD display delivers high-quality imagery with advanced connectivity, including DisplayPort, HDMI and an Open Pluggable Specification (OPS) slot. These digital options increase flexibility for users in a variety of digital signage applications, especially video walls where up to 100 displays can be used in a 10x10 configuration. The optional color calibration solution enables color uniformity and fidelity across individual and multiple screens, creating a perfectly matched image in tiled digital signage environments. The X552S is ideal for hospitality, retail and government applications where minimal depth is required.









Panel Technology  SPVA (P-DID)



Viewable Image Size  55"



Native Resolution  1920 x 1080



Pixel Pitch  0.63mm



Backlight Type  LED Edge-lit



Pixels Per Inch  47@ native resolution



Brightness (typical)  500cd/m2



Brightness (maximum)  700cd/m2



Contrast Ratio (typical)  3000:1



Viewing Angle  178° Vert., 178° Hor. (89U/89D/89L/89R) @ CR>10



Refresh Rate  60Hz



Aspect Ratio  16:9



Active Screen Area  47.6 x 26.8 in. / 1209.6 x 680.4mm



Orientation  Landscape/Portrait



Displayable Colors  More than 16.7 million


Synchronization Range

Horizontal (Analog/Digital)  31.5-91.1 kHz



Vertical  50-85 Hz

Input Signal

Video  Analog RGB 0.7 Vp-p/75 Ohms



Sync   Separate sync: TTL Level (Positive/Negative)
Composite sync: TTL Level (Positive/Negative)
Composite sync on green: (0.3Vp-p negative 0.7Vp-p positive)

Connectivity


PC Signal Compatibility  Yes



Macintosh Compatibility  Yes



Input Terminals
Digital  DisplayPort, HDMI, DVI-D
Analog  VGA 15-pin D-sub, BNC Composite
Audio  Audio Mini-Jack, DisplayPort Audio, HDMI Audio
External Control  RS-232C, LAN, DDC/CI


Output Terminals
Audio  Audio Mini-Jack, External Speaker Jack (2)
Digital  DVI-D
External Control  RS-232C

Power Consumption (typical)

On  160W



ECO Mode Standby  <2W


Physical Specifications


Bezel Width (Left/Right, Top/Bottom)  0.7in./0.7 in., 0.7in./0.7in. ; 18mm/18mm, 18mm /18mm



Dimensions (WxHxD)
Net (with stand)  49.2 x 28.5 x 15.7 in. / 1250.4 x 722.7 x 400mm
Net (without stand)  49.2 x 28.5 x 1.8 in. / 1250.4 x 722.7 x 46.1mm
Shipping  56.3 x 36.2 x 9.8 in. / 1430 x 920 x 250mm


Weight
Net (with stand)  57.3 lbs. / 26 kg
Net (without stand)  55.1 lbs. / 25 kg
Shipping  66.4 lbs. / 30.2 kg

VESA Hole Configuration Specifications


300 x 300mm (4-hole)


Environmental Conditions

Operating Temperature  41-104°F / 5-40°C



Operating Humidity  20-80%



Operating Altitude  9843 ft. / 3000m



Storage Temperature  -4-140°F / -20-60°C



Storage Humidity  10-90%



Storage Altitude  40,000 ft. / 12,192m

Limited Warranty (parts & labor, including backlight)

3 years

Additional Features
