Elite 130

  • Unprecedented airflow for a Mini-ITX case with front mesh panel and vents on the top and side panels
  • Dual Super Speed USB 3.0
  • Supports a 120mm radiator in the front
  • Supports standard length ATX PSU
  • Supports ultra high-end graphics card up to 343mm / 13.5 inch, such as AMD HD7990 and NVIDIA GTX690
  • Ample storage – up to 1 ODD / 3 HDDs / 5 SSDs:
  • ODD x 1 + HDD x 2 + SSD x 1
  • + HDD x 3 + SSD x 1
  • + HDD x 2 + SSD x 3
  • + HDD x 1 + SSD x 4
  • + SSD x 5

Overview

Elite 130

High-Perforamnce M-ITX Case

Compact Yet Powerful- Elite 130

The Elite 130 is an ultra compact case with support for full size high-end desktop components. Other than conventional Mini-ITX cases, the Elite 130 supports more affordable, efficient and easily available full size ATX PSU's. It can accommodate even the largest high-end VGAs, a 5.25" optical drive and up to 3 HDDs and 4 SSDs. You can even install a 120mm radiator in the front for extreme cooling. Thanks to a smart airflow system featuring 2 fans and the full mesh front panel it manages to still keep the system extremely cool.

FEATURES

  • Supports standard full sized ATX PSU, length up to 180mm / 7.1inch
  • Ample storage - up to 1 ODD,3 HDDs and 4 SSDs
  • Supports long VGAs up to 343mm / 13.5 inch (NVIDIA Titan / AMD HD7990)
  • Full mesh front panel for optimized cooling;
  • Dual SuperSpeed USB 3.0

COOLING

  • Front 120mm fan included (removable)
  • Support a 120mm radiator in front
  • Side 80mm fan included (removable)

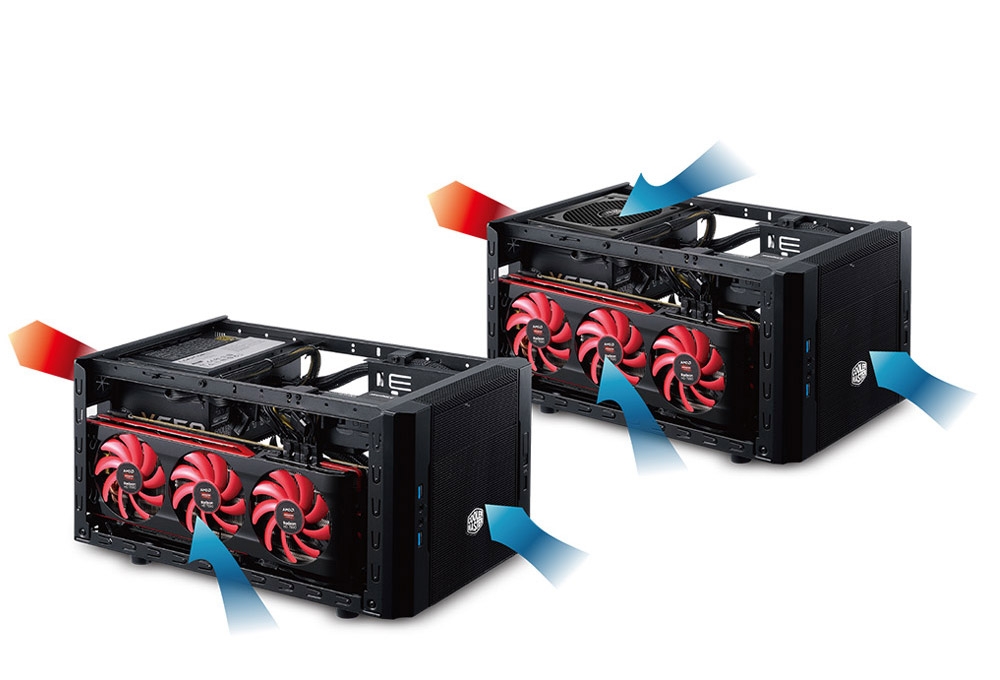

AIRFLOW


MORE INFORMATION


Specifications

Model Number RC-130-KKN1
Available Color Midnight Black
Materials Appearance: polymer front mesh panel
Case body: Steel alloy

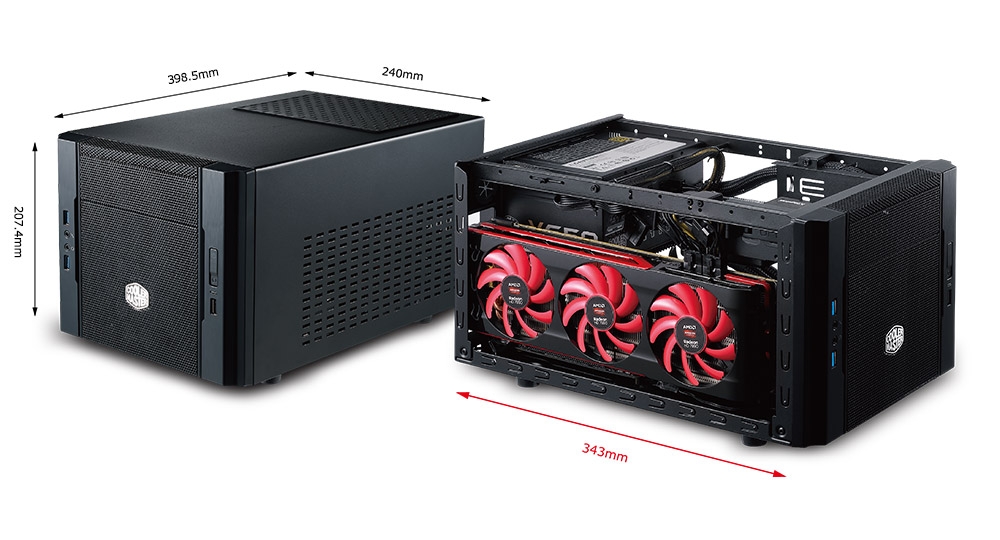

Dimensions (W x H x D) 240 x 207.4 x 398.5 mm / 9.4 x 8.2 x 15.7 inch
Net Weight 3.1 kg / 6.8 lbs
M/B Type Mini-ITX
5.25" Drive Bays 1
3.5" Drive Bays 3 (1 from 5.25 drive bay)
2.5" Drive Bays 5 (3 from 5.25" drive bays, 1 from the side bracket, 1 from the bottom)
I/O Panel USB 3.0 x 2, USB 2.0 x 1, Audio In & Out
Expansion Slots 2
Cooling System Front: 120mm fan x 1 (installed)
Side: 80x15mm fan x 1 (installed)
Power Supply Type Standard ATX PS2
Maximum Compatibility VGA card length: 343mm / 13.5 inch
CPU cooler height: 65mm / 2.5 inch
PSU length:
180mm/ 7.1 inch (w/ less cable management)
142mm / 5.6 inch (w/ full cable management)
