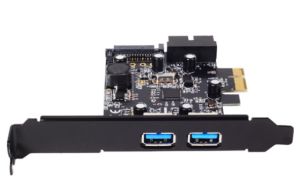

SilverStone SST-EC04E USB3.0 Expansion Card - 2xUSB3.0 - PCI-Ex1

IMG 1 of 4
No Longer Available
Part Number:
315981
(?) Brand:
SilverStone Web Site
Manuf No:
G560EC04E000020
Shipping Weight:
0.5 KG (Includes product packaging)
Estimate Shipping
Date Added:
31/3/2014
Details Files Images & Video
All stock codes associated to this product
G560EC04E000020, CASTEC04E, CAST-EC04-E, 4710007220573
EC04-E

INTRODUCTION

SilverStone created an excellent extension card product, the EC04-E, which connects to the motherboard via single lane PCI Express 2.0 to support two external and a dual port USB 3.0 connector for maximum compatibility and flexibility. This card is a great add-on for systems that require connections to multiple USB 3.0 devices such as SilverStone’s own USB 3.0 enclosures RVS02 and TS07.

SPECIAL FEATURES

  • USB 3.0 with two external standard Type-A ports and one dual port internal connector
  • PCI Express 2.0 with single lane (x1) throughput 5Gbit/s
  • Supports simultaneous operation of multiple USB 3.0/2.0/1.1 devices
  • Adds four total USB 3.0 ports to your system
  • Built-in power connector to receive extra power from system power supply

Specifications

Model No.
 SST-EC04-E
Power requirement
 5Vdc via peripheral 15pin SATA power connector
Form factor
 Low profile single lane (X1) PCI Express 2.0
USB 3.0 controller
 NEC uPD720201
USB Ports
 Two external ports and one internal dual port
USB bus power output
 5Vdc
Signal Reception Angle
 USB 3.0 (5Gbit/s), USB 2.0 (480Mbit/s), USB 1.1 (12Mbit/s)

No additional files, specification sheets, guides or documentation found for product.

Warranty: 1 Year Return to Base

Full manufacturers warranty details are available at the manufacturers (SilverStone) web site.
