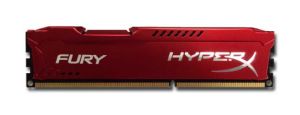

HX313C9FR/8

8GB 1G x 64-Bit DDR3-1333

CL9 240-Pin DIMM

DESCRIPTION

HyperX HX313C9FR/8 is a 1G x 64-bit (8GB) DDR3-1333 CL9 SDRAM (Synchronous DRAM) 2Rx8 memory module, based on sixteen 512M x 8-bit DDR3 FBGA components. This module has been tested to run at DDR3-1333 at latency timing 9-9-9 at 1.5V. The JEDEC standard electrical and mechanical specifica-tions are as follows:

FEATURES

  • JEDEC standard 1.5V (1.425V ~1.575V) Power Supply
  • VDDQ = 1.5V (1.425V ~ 1.575V)
  • 667MHz fCK for 1600Mb/sec/pin
  • 8 independent internal bank
  • Programmable CAS Latency: 9, 8, 7, 6
  • Programmable Additive Latency: 0, CL - 2, or CL - 1 clock
  • 8-bit pre-fetch
  • Burst Length: 8 (Interleave without any limit, sequential with starting address 000 only), 4 with tCCD = 4 which does not allow seamless read or write [either on the fly using A12 or MRS]
  • Bi-directional Differential Data Strobe
  • Internal(self) calibration : Internal self calibration through ZQ pin (RZQ : 240 ohm 1%)
  • On Die Termination using ODT pin
  • Average Refresh Period 7.8us at lower than TCASE 85C, 3.9us at 85C < TCASE < 95C
  • Asynchronous Reset
  • PCB : Height 1.180 (30.00mm), double sided component

SPECIFICATIONS

  • CL(IDD) 9 cycles
  • Row Cycle Time (tRCmin) 49.125ns (min.)
  • Refresh to Active/Refresh 260ns (min.)
  • Command Time (tRFCmin)
  • Row Active Time (tRASmin) 36ns (min.)
  • Maximum Operating Power TBD W*
  • UL Rating 94 V - 0
  • Operating Temperature 0oC to 85oC
  • Storage Temperature -55oC to +100oC

No additional files, specification sheets, guides or documentation found for product.

Warranty: 1 Year Return to Base

Full manufacturers warranty details are available at the manufacturers (Kingston) web site.

Unless otherwise specified Techbuy is normally your first point of contact for warranty related returns, further information regarding our warranty policies and consumer guarantees is available on our policies and service & support pages.

To apply for return of a product just go to our returns page.

These terms are in addition to and do not affect any terms, conditions, guarantees and warranties implied by law.
