The smoothest mouse-controlled graphical BIOS is with improvements to both EZ and Advanced Modes. It benefits both the novice builder as well as the seasoned overclocker.
EZ XMP: Improve your DRAM performance with a click!

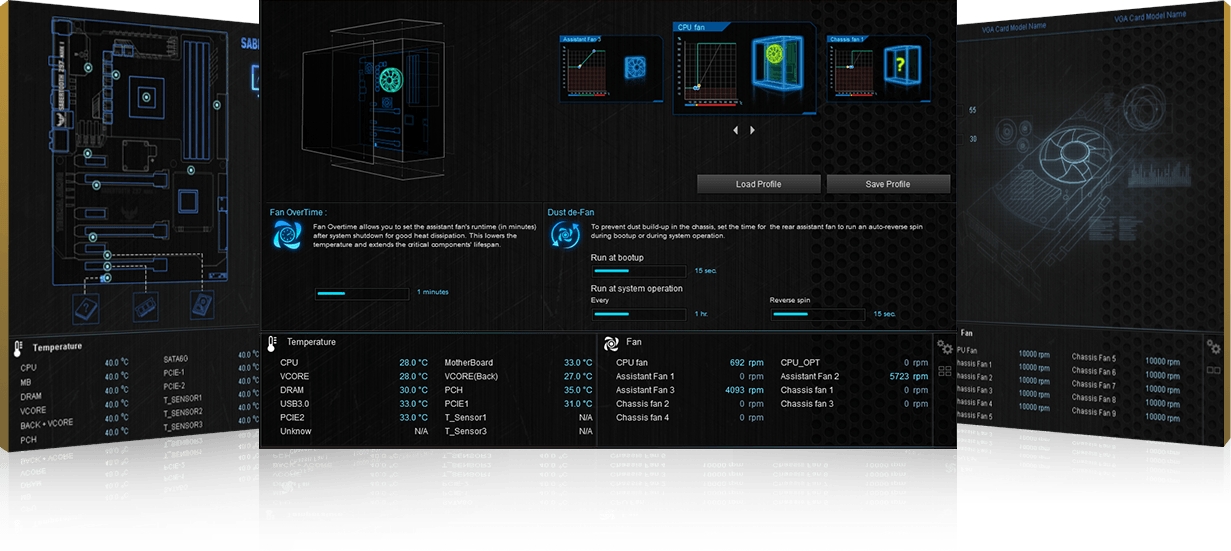

Intuitive graphical fan control: Fine-tune individual fans simply by dragging a curve with the mouse!
Real-time hardware monitor: Benefit from instant information from the critical parts of your system!

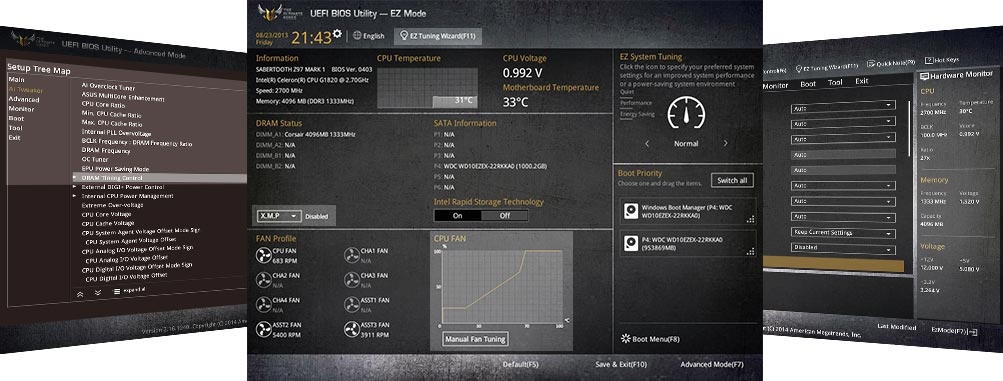

EZ Mode
Fan Profile: Detailed CPU and case fan information for instant cooling!
SATA Information: Displays SATA port details for you to easily recognize devices!
Fast Clock Adjustment: Use mouse controls to change the time and date!
EZ XMP: Improve your DRAM performance with a click!
Advanced Mode
Shortcut: Press Enter to create shortcuts to favorite settings, or select an existing shortcut and press F4 to go straight there!
Quick Notes: Make notes and capture BIOS-related ideas, quickly and conveniently!
Last Modified Log: Track last change and save preferred profiles onto a USB drive!
SATA Port Renaming: Rename SATA ports for easy identification!
Cracked-up Content Creation!

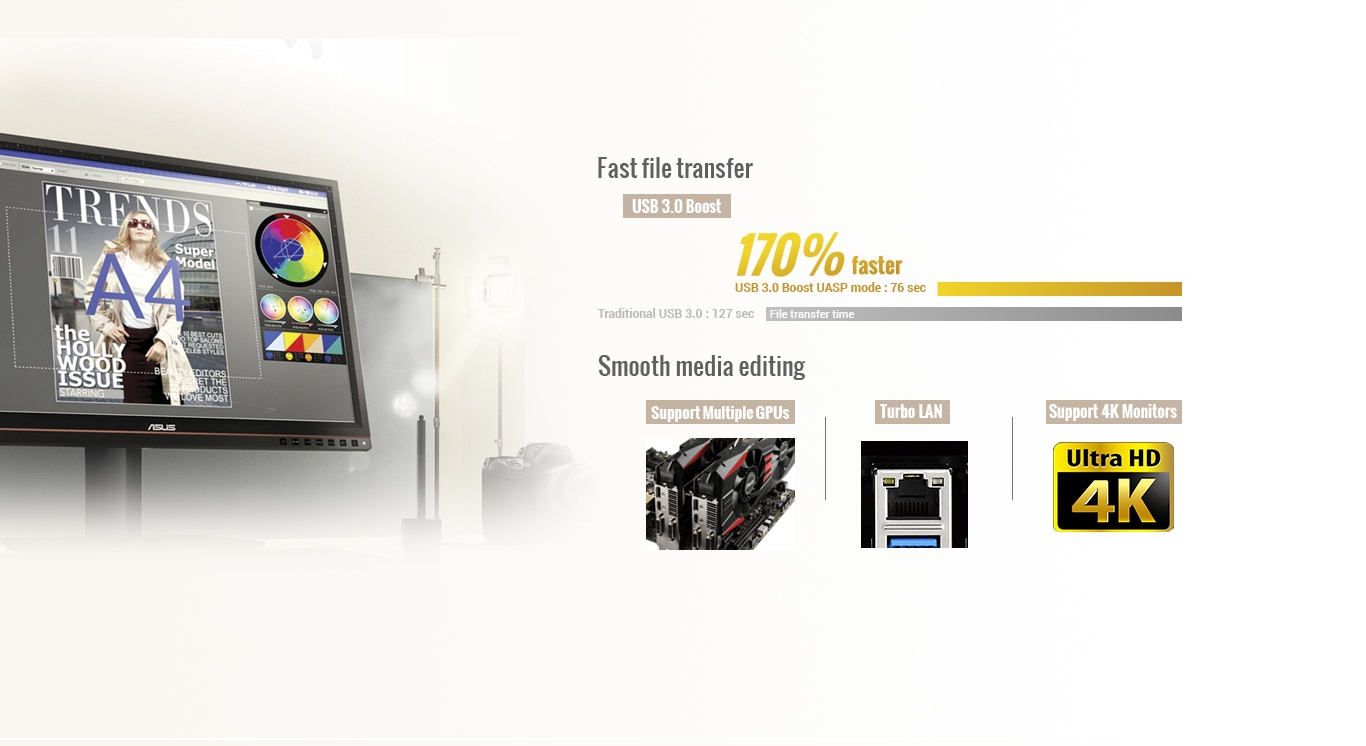

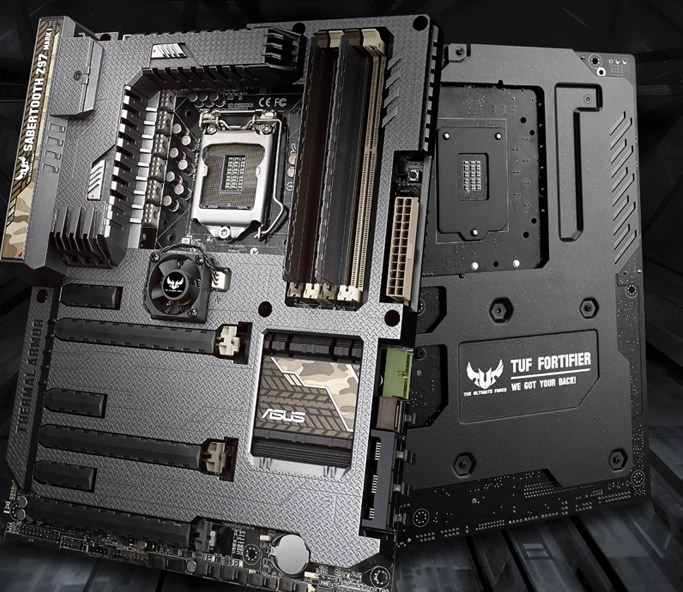

If design is in your blood, a TUF Z97 motherboard needs to be on your desktop! Exclusive USB 3.0 Boost technology drives data transfer at speeds that are up to 170% faster than standard. For you, that means slicker workflow every hour of every day – no more drumming your fingers waiting for images to transfer or files to save or load! You also get our exclusive Turbo LAN technology, which automatically optimizes your internet connection for the fastest and smoothest possible file transfers. TUF Z97 even helps with your multiple-monitor setup, ensuring total stability right up to 4K/UHD resolutions!
TUF Audio Design
TUF Audio Design makes short work of optimizing audio settings for the way you want to listen, chatting, watching movies or relaxing to your favorite music. Onboard physical shielding, professional engineered design and premium components result in sound output that has exceptional clarity and fidelity.
Audio Shielding
Ensures precision analog/digital separation and greatly reduced multi-lateral interference
Audio amplifier
Enhance the highest quality sound for headphone and speakers
Unique de-pop circuit
Reduces start-up popping noise to all audio outputs

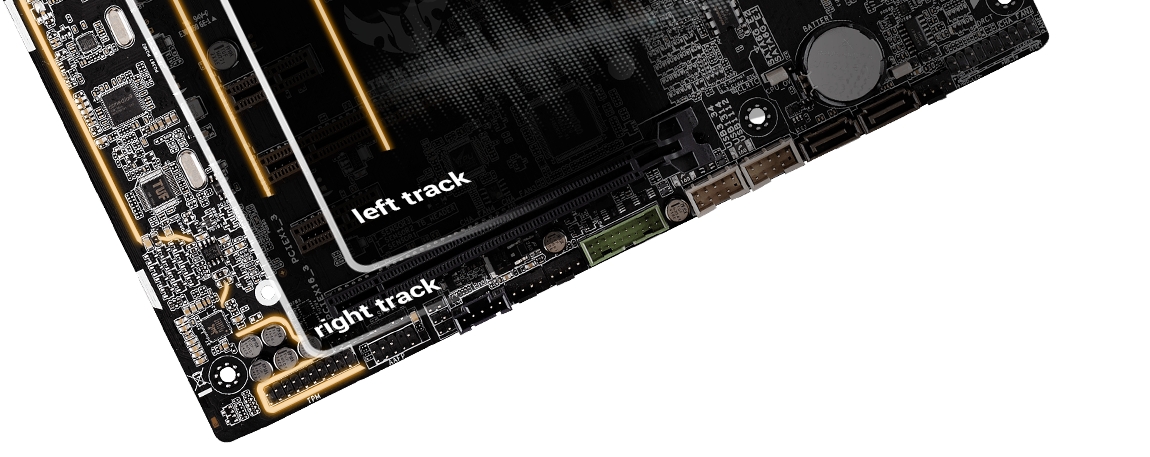

Special layout design
Separate layers for left and right channels to guard the quality of the sensitive audio signals
ASUS HomeCloud
Your PC, Your world
ASUS HomeCloud creates a world without boundaries. It lets you access your PC remotely, stream multimedia content to wherever you want, and manage all your stuff from anywhere — no matter where it's stored. Use the built-in Wake on WAN feature to remotely wake and control your PC with a single smart device, anywhere and anytime. It even turns your hard drive into private cloud storage, removing worries about storage limits. With HomeCloud, your PC becomes the gateway to your world.
PC DIY has never been easy like this
We understand how you use your PC. From assembly, system setting and monitoring, and to firmware and hardware updates — we're all about making your life easier. That's why we never stop developing new and exciting DIY opportunities to make PC DIY easy, fun and free from hassle!
1. Assembly
ASUS Q-Design makes PC building quick and easy
2. Settings

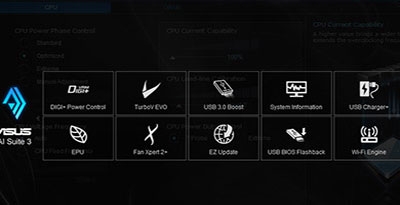

ASUS AI Suite 3 is a one-stop shop for adjusting your settings
3. Monitoring

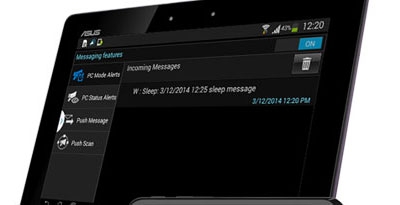

ASUS Push Notice monitors your PC status on the go
4. BIOS updates

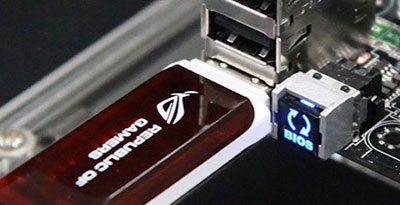

ASUS USB BIOS Flashback updates your BIOS without a CPU installed

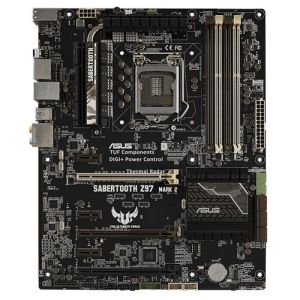

Specifications
- CPU
Intel Socket 1150 for the 5th/New 4th/4th Generation Core i7/Core i5/Core i3/Pentium/Celeron Processors
Supports Intel 22 nm CPU
Supports Intel Turbo Boost Technology 2.0
* The Intel Turbo Boost Technology 2.0 support depends on the CPU types.
* Refer to www.asus.com for CPU support list
- Chipset
Intel Z97
- Memory
4 x DIMM, Max. 32GB, DDR3 1866/1600/1333/1066 MHz Non-ECC, Un-buffered Memory *
Dual Channel Memory Architecture
Supports Intel Extreme Memory Profile (XMP)
* Hyper DIMM support is subject to the physical characteristics of individual CPUs.
* Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists).
- Graphic
Integrated Graphics Processor
Multi-VGA output support : HDMI/DisplayPort ports
- Supports HDMI with max. resolution 4096 x 2160 @ 24 Hz / 2560 x 1600 @ 60 Hz
- Supports DisplayPort with max. resolution 4096 x 2160 @ 24 Hz / 3840 x 2160 @ 60 Hz
Maximum shared memory of 512 MB
Supports Intel InTru 3D, Quick Sync Video, Clear Video HD Technology, Insider
DP 1.2 Multi-Stream Transport compliant, supports DP 1.2 monitor daisy chain up to 3 displays
- Multi-GPU Support
Supports NVIDIA Quad-GPU SLI Technology
Supports AMD Quad-GPU CrossFireX Technology
- Expansion Slots
2 x PCIe 3.0/2.0 x16 (Single at x16, dual at x8/x8)
1 x PCIe 2.0 x16 (max at x4 mode, black)
3 x PCIe x1
- Storage
Intel Z97 chipset :
6 x SATA 6Gb/s port(s), brown
Support Raid 0, 1, 5, 10
Supports Intel Smart Response Technology, Intel Rapid Start Technology, Intel Smart Connect Technology *1
- LAN
Intel I218V
- Audio
Realtek ALC1150 8-Channel High Definition Audio CODEC
- Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking
- High quality 112 dB SNR stereo playback output (Line-out at rear) and 104 dB SNR recording input (Line-in)
Audio Feature :
- Absolute Pitch 192kHz/ 24-bit True BD Lossless Sound
- Blu-ray audio layer Content Protection
- Optical S/PDIF out port(s) at back panel
- Audio Shielding: Ensures precision analog/digital separation and greatly reduced multi-lateral interference
- Dedicated audio PCB layers: Separate layers for left and right channels to guard the quality of the sensitive audio signals
- Audio amplifier: Provides the highest-quality sound for headphone and speakers
- Unique de-pop circuit: Reduces start-up popping noise to audio outputs
- USB Ports
Intel Z97 chipset :
6 x USB 3.0/2.0 port(s) (2 at back panel, blue, 4 at mid-board)
ASMedia USB 3.0 controller :
2 x USB 3.0/2.0 port(s) (2 at back panel, blue)
Intel Z97 chipset :
8 x USB 2.0/1.1 port(s) (4 at back panel, black, 4 at mid-board)
- Special Features

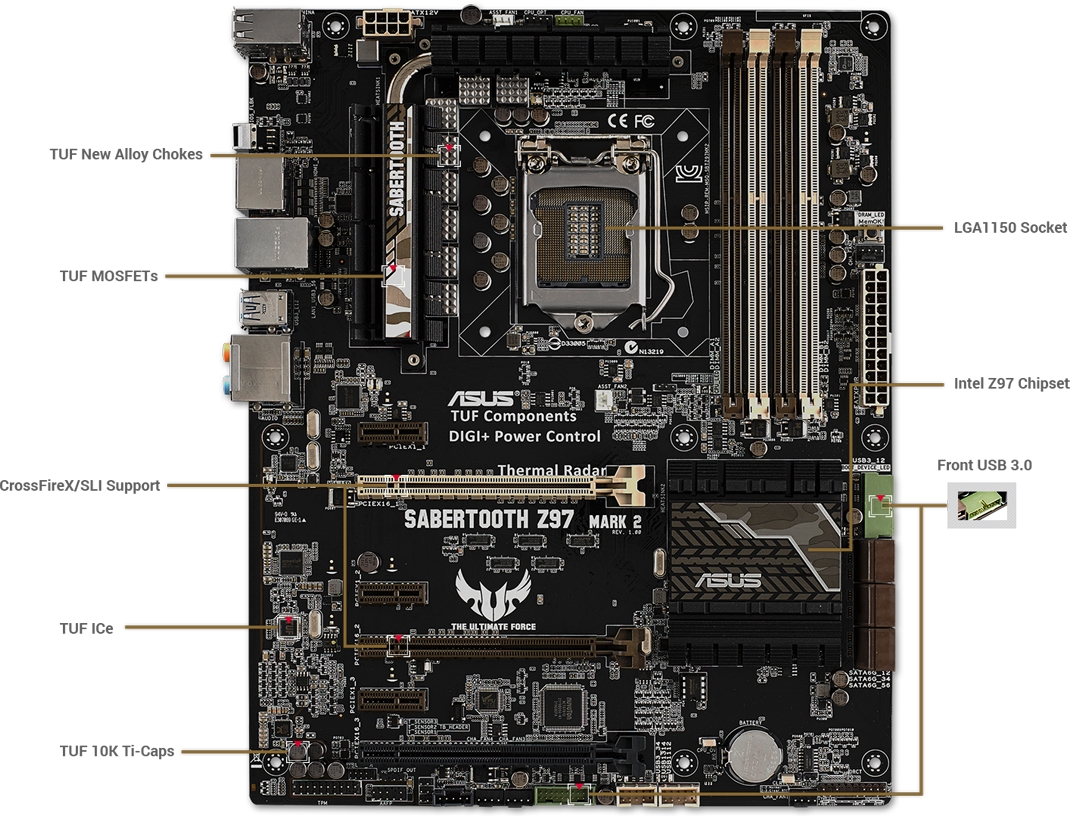

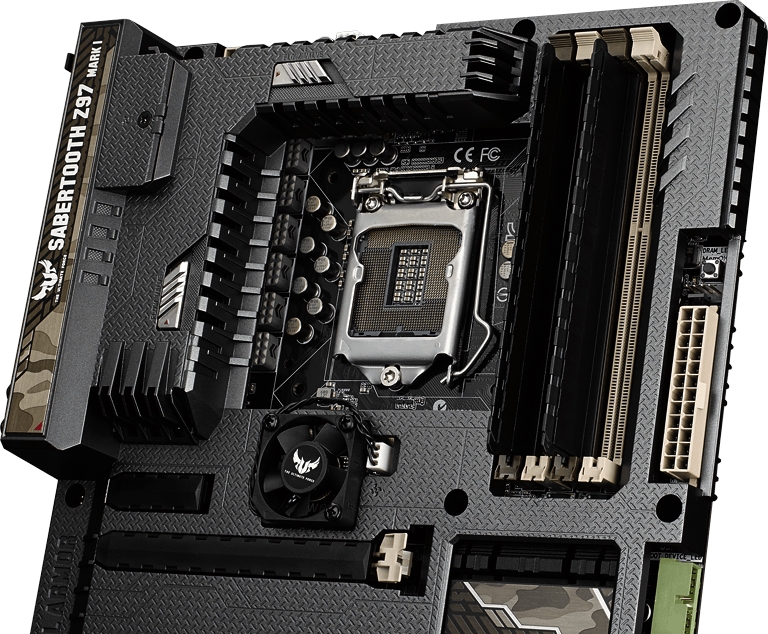

TUF Features:

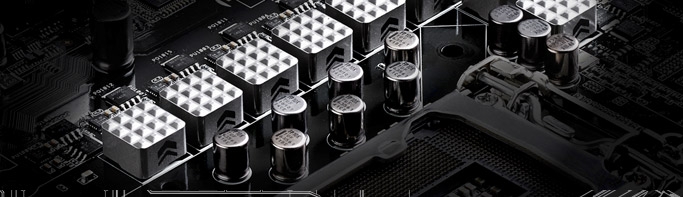

TUF ENGINE! Power Design :
- 8 +2 Digital Phase Power Design

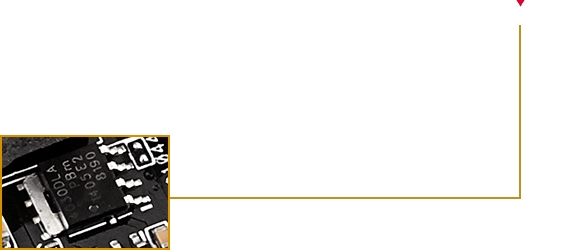

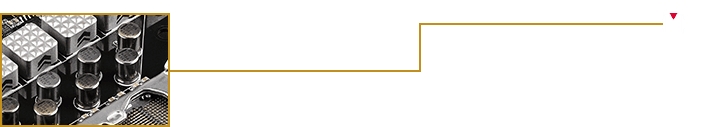

- TUF Components (New Alloy Choke, Ti-Cap. & MOSFET; certified by military-standard)
- ASUS DIGI+ Power Control Utility

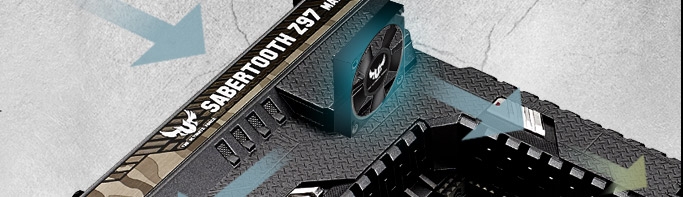

Ultimate COOL! Thermal Solution :
- TUF Thermal Radar 2
- TUF ICe
Safe & Stable! Guardian Angel :
- TUF ESD Guards
ASUS Exclusive Features :
- MemOK!
- AI Suite 3
- Ai Charger+
- Anti-Surge
- ASUS UEFI BIOS EZ Mode featuring friendly graphics user interface
- USB 3.0 Boost
- Disk Unlocker
Interactive HomeCloud
- Media Streamer
ASUS EZ DIY :
- ASUS O.C. Profile
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 2
- ASUS USB BIOS Flashback
- ASUS UEFI BIOS EZ Mode
- Multi-language BIOS
- Push Notice

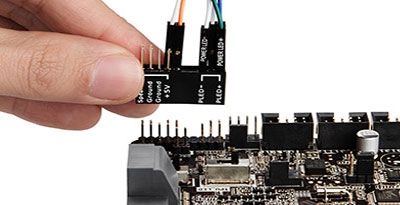

ASUS Q-Design :
- ASUS Q-Shield
- ASUS Q-LED (CPU, DRAM, VGA, Boot Device LED)
- ASUS Q-Slot
- ASUS Q-DIMM
- ASUS Q-Connector
- Operating System Support
Windows 8.1
Windows 8
Windows 7
- Back I/O Ports
1 x DisplayPort
1 x HDMI
1 x LAN (RJ45) port(s)
4 x USB 3.0 (blue)
4 x USB 2.0
1 x Optical S/PDIF out
5 x Audio jack(s)
1 x USB BIOS Flashback Button(s)
- Internal I/O Ports
2 x USB 3.0 connector(s) support(s) additional 4 USB 3.0 port(s) (19-pin)
2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)
6 x SATA 6Gb/s connector(s)
1 x CPU Fan connector(s) (1 x 4 -pin)
1 x CPU OPT Fan connector(s) (1 x 4 -pin)
4 x Chassis Fan connector(s) (4 x 4 -pin)
2 x Assistant Fan connector(s) (2 x 3 -pin)
1 x S/PDIF out header(s)
1 x Thunderbolt header(s)
1 x 24-pin EATX Power connector(s)
1 x 8-pin ATX 12V Power connector(s)
1 x Front panel audio connector(s) (AAFP)
1 x System panel(s)
1 x DRCT header(s)
1 x MemOK! button(s)
3 x Thermal sensor connector(s)
1 x Clear CMOS jumper(s)
- Accessories
User's manual
ASUS Q-Shield
4 x SATA 6Gb/s cable(s)
1 x SLI bridge(s)
1 x Q-connector(s) (2 in 1)
1 x TUF 5 Year Warranty manual(s) (by region)
1 x TUF Inside sticker(s)
- BIOS
64 Mb Flash ROM, UEFI AMI BIOS, PnP, DMI2.7, WfM2.0, SM BIOS 2.7, ACPI 5.0, Multi-language BIOS,
ASUS EZ Flash 2, ASUS CrashFree BIOS 3, My Favorites, Quick Note, Last Modified log, F12 PrintScreen, F3 Shortcut functions, and ASUS DRAM SPD (Serial Presence Detect) memory information
- Manageability
WfM 2.0, DMI 2.7, WOL by PME, PXE
- Support Disc
Drivers
Anti-virus software (OEM version)
ASUS/TUF CPU-Z
ASUS Utilities
- Form Factor
ATX Form Factor
12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )
- Note
* These functions will work depending on the CPU installed.
