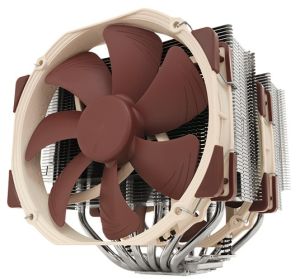

NH-D15

Built on the basis of the legendary NH-D14 and carrying on its quest for ultimate quiet cooling performance, Noctuas flagship model NH-D15 is an elite-class dual tower cooler for the highest demands. Its expanded heatpipe layout and two premium grade NF-A15 140mm fans with PWM support for automatic speed control allow it to further improve the NH-D14s award-winning efficiency. Topped off with the trusted, pro-grade SecuFirm2 multi-socket mounting system, Noctuas proven NT-H1 thermal compound and full 6 years manufacturers warranty, the NH-D15 forms a complete premium quality solution that represents a deluxe choice for overclockers and silent-enthusiasts alike.


NH-D15 Features Based on the award-winning NH-D14
Noctuas NH-D14 has received more than 350 awards and recommendations from leading international hardware websites and magazines, making it one of the most successful premium heatsinks ever built. With its expanded layout and dual NF-A15 fans, the NH-D15 further improves the D14s much acclaimed quiet cooling performance.

NH-D15 Features 6 heatpipe dual tower design
As compared to conventional single tower heatinks, the NH-D15s fine-tuned six heatpipe dual tower design provides more surface area, better heat-distribution and superior airflow efficiency in dual fan mode.

NH-D15 Features Widened fin stack and expanded heatpipe layout
Compared to the NH-D14, the NH-D15s fin-stack has been widened from 140 to 150mm and its heatpipes are now spaced further apart, which allows for a more uniform heat distribution over a larger surface area and thus contributes to the NH-D15s superior efficiency.

NH-D15 Features High RAM compatibility in single fan mode
Thanks to its recessed lower fins, the NH-D15 provides 64mm clearance for tall memory heatsinks in single fan mode, making it compatible with most high end RAM modules on the market. In dual fan mode, the NH-D15 should be used with standard height RAM (up to 32mm).*

NF-A15 Dual NF-A15 140mm fans
The NH-D15 features two of Noctuas premium class NF-A15 140mm fans. Complying with Noctuas AAO standard and featuring sophisticated aerodynamic design measures such as Flow Acceleration Channels, the NF-A15 has quickly built up a reputation as one of the best 140mm fans on the market. button

NH-D15 Features PWM support and Low-Noise Adaptor
The NF-A15 premium fans supplied with the NH-D15 support PWM for convenient automatic speed control through the mainboard. In addition, the maximum fan speed can be reduced from 1500 to 1200rpm using the supplied Low-Noise Adaptor for even quieter operation.

NH-D15 Features Excellent component cooling
Extending below the fin-stacks, the large NF-A15 fans not only contribute to the NH-D15s superb CPU cooling capabilities but also provide massive airflow over surrounding motherboard components and heatsinks, thus ensuring excellent component cooling performance.

NH-D15 Features SecuFirm2 mounting system
Noctuas SecuFirm2 mounting systems have become synonymous with quality, safety and ease of use. Supporting Intel LGA115x (LGA1150, LGA1155, LGA1156), LGA2011 and AMD (AM3(+), AM2(+), FM1, FM2(+)), the SecuFirm2 mounting included with the NH-D15 guarantees perfect contact pressure and maximum convenience on all current sockets.

NH-D15 Features Compatibility with past and future sockets
Complying with the open SecuFirm standard, the NH-D15 can be made compatible with the older LGA1366 and LGA775 sockets using the optional NM-I3 mounting kit, which is provided by Noctua free of charge. If technically possible, Noctua will also provide upgrade kits for future sockets.

NF-A15 NT-H1 thermal compound
Having received more than 100 awards and recommendations from hardware journalists around the world, Noctuas NT-H1 is a proven professional grade TIM solution that provides minimum thermal resistance, excellent ease of use and outstanding reliability. button

NH-D15 Features 6 years warranty
Noctua products are renowned for their impeccable quality and outstanding longevity. Like all Noctua fans, the supplied NF-A15s feature an MTBF rating of more than 150.000 hours and the entire NH-D15 package comes with a full 6 years manufacturers warranty.

Specifications:

Socket compatibility   Intel LGA2011 (Square ILM), LGA1156, LGA1155, LGA1150 & AMD AM2, AM2+, AM3, AM3+, FM1, FM2, FM2+ (backplate required)



Height (without fan)   165 mm



Width (without fan)   150 mm



Depth (without fan)   135 mm



Height (with fan)   165 mm



Width (with fan)   150 mm



Depth (with fan)   161 mm



Weight (without fan)   1000 g



Weight (with fan)   1320 g



Material   Copper (base and heat-pipes), aluminium (cooling fins), soldered joints & nickel plating



Fan compatibility   140x150x25 (with 120mm mounting holes), 140x140x25 (with 120mm mounting holes), 120x120x25



Scope of Delivery
  • 2x NF-A15 PWM premium fan
  • 2x Low-Noise Adaptor (L.N.A.)
  • Y-cable
  • NT-H1 high-grade thermal compound
  • SecuFirm2 Mounting Kit
  • Noctua Metal Case-Badge
  •


    Warranty   6 Years





    Fan specifications




    Model   2x Noctua NF-A15 PWM



    Bearing   SSO2



    Max. Rotational Speed (+/- 10%)   1500 RPM



    Max. Rotational Speed with L.N.A. (+/- 10%)   1200 RPM



    Min. Rotational Speed (PWM, +/-20%)   300 RPM



    Max. Airflow   140,2 m/h



    Max. Airflow with L.N.A.   115,5 m/h



    Max. Acoustical Noise   24,6 dB(A)



    Max. Acoustical Noise with L.N.A.   19,2 dB(A)



    Input Power   1,56 W



    Voltage Range   12 V



    MTBF   > 150.000 h
