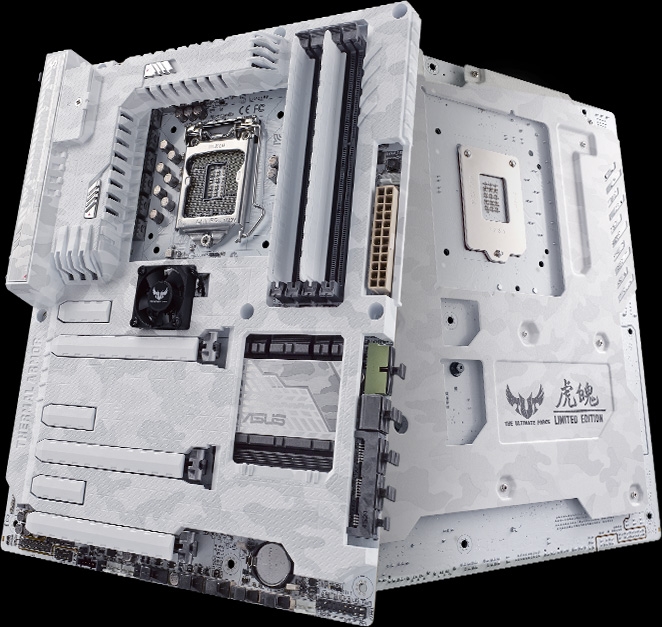

TUF ESD Guards Strong ESD protection for extended component lifespan
Electrostatic discharge (ESD) can happen suddenly, and its damaging effects are easily underestimated. TUF ESD Guards are tested to standards that are 30% higher than industry standards, ensuring electrostatic discharges are properly grounded from all onboard connectivity and that means greater component longevity.
Keyboard and mouse connectors: Additional on-circuit ESD TVS diodes.
USB 3/2.0 connectors: On-circuit transient-voltage-suppression (TVS) diodes and capacitor protection for surface-mount and dual-inline packages.
Audio connectors: Capacitor protection on both front and back audio-output circuits.

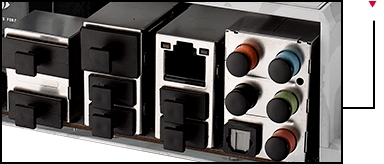

LAN port: ESD TVS diode protection on the LAN circuit bolstered by an anti-surge LAN connector that increases protection against extreme events, such as lightning strikes.
Media-acclaimed the most intuitive UEFI BIOS
The smoothest mouse-controlled graphical BIOS is with improvements to both EZ and Advanced Modes. It benefits both the novice builder as well as the seasoned overclocker.
Map to MyFavorite:Quickly find tuning options and add preferred tools to the MyFavorites list!
EZ Tuning Wizard – OC and RAID:Just select your hardware and using easy-to-understand scenarios to tune system performance or streamline your RAID configuration for faster data retrieval and backups!
EZ XMP: Improve your DRAM performance with a click!

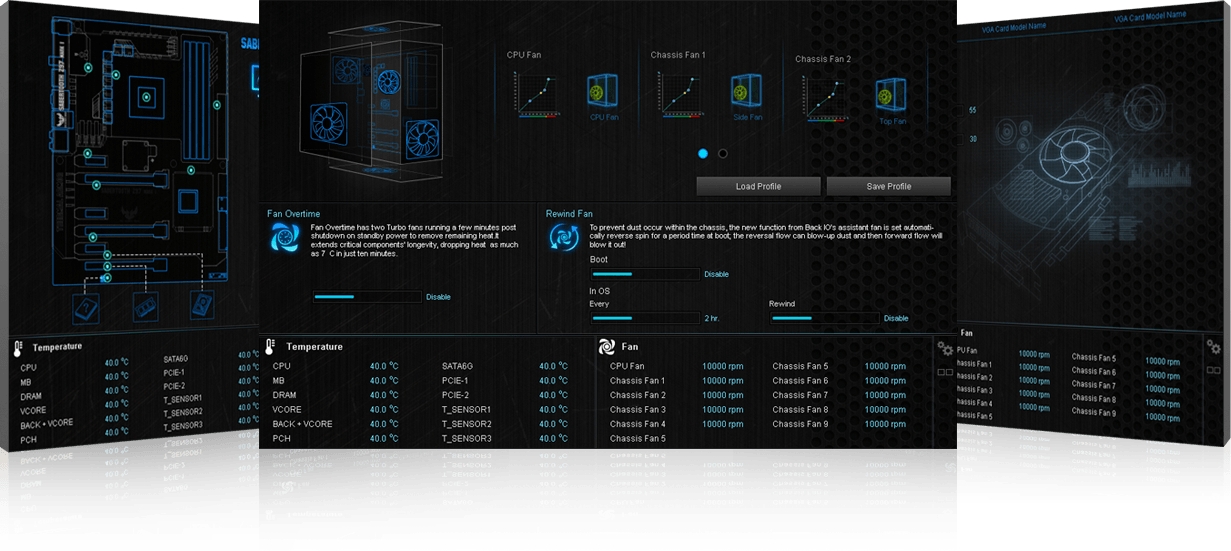

Intuitive graphical fan control: Fine-tune individual fans simply by dragging a curve with the mouse!
Real-time hardware monitor: Benefit from instant information from the critical parts of your system!
EZ Mode
Fan Profile: Detailed CPU & Chassis fan controls for instant cooling.
SATA Information: Displays each SATA port details for you to easily recognize devices.
Fast Clock Adjustment: Easily change the time and date in EZ Mode using the mouse.
EZ XMP: Improve your DRAM performance with a click!
Advanced Mode
Shortcut: Press Enter to create shortcuts to favorite settings, or select an existing shortcut and press F4 to go straight there!
Quick Notes: Make notes and capture BIOS-related ideas, quickly and conveniently!
Last Modified Log: Easily track settings and save preferred profile into a USB drive.
SATA Port Renaming: Rename SATA ports for easy identification.
Cracked-up Content Creation!
If design is in your blood, a TUF Z97 motherboard needs to be on your desktop! Exclusive USB 3.0 Boost technology drives data transfer at speeds that are up to 170% faster than standard, while SATA Express connectivity stores and retrieve data at up to 10Gbit/s. For you, that means slicker workflow every hour of every day – no more drumming your fingers waiting for images to transfer or files to save or load! You also get our exclusive Turbo LAN technology, which automatically optimizes your internet connection for the fastest and smoothest possible file transfers. TUF Z97 even helps with your multiple-monitor setup, ensuring total stability right up to 4K/UHD resolutions!
Upgrade to super-fast Thunderbolt speed today
ASUS ThunderboltEX II series are the first Intel®-certified Thunderbolt™ 2 add-on card, offering the flexibility to upgrade your own build to Thunderbolt technology whenever you want. You can enjoy bi-directional transfer speeds up to 10Gbit/s* — that's four times (4X) faster than USB 3.0! Experience video in incredible detail on the latest 4K/UHD (ultra-high-definition) displays while using bandwidth-hungry storage devices at the same time.
TUF Audio Design
TUF Audio Design makes short work of optimizing audio settings for the way you want to listen, chatting, watching movies or relaxing to your favorite music. Onboard physical shielding, professional engineered design and premium components result in sound output that has exceptional clarity and fidelity.
Shielding
Physical isolation of analog and digital components reduces multi-lateral interference.
Audio amplifier
Enhance the highest quality sound for headphone and speakers.
Unique de-pop circuit
Reduces start-up popping noise to all audio outputs.
Special layout design

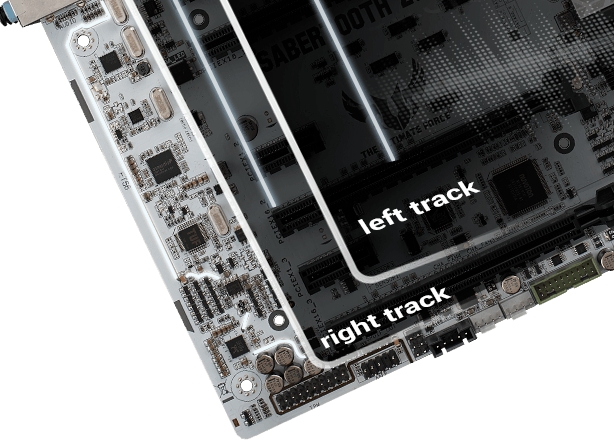

Separate layers for left and right channels to guard the quality of the sensitive audio signals
PC DIY has never been easy like this
We understand how you use your PC. From assembly, system setting and monitoring, and to firmware and hardware updates we're all about making your life easier. That's why we never stop developing new and exciting DIY opportunities to make PC DIY easy, fun and free from hassle!
1 Assembly - ASUS Q-Design PC building quick and easy
2 Setting ASUS AI Suite is a one-stop shop for adjusting your settings
3 Monitoring ASUS Push Notice monitors your PC status on the go
4 BIOS updates ASUS USB BIOS Flashback updates your BIO without a CPU Installed
Easy PC DIY starts with ASUS Q-Design

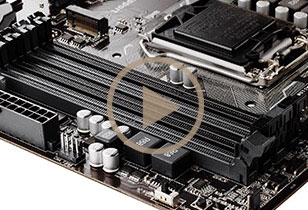

Q-DIMM - Easy memory removal Even if you work with a smaller case, just push down on the one-sided clip and push or pull RAM modules in or out couldn't be simpler!

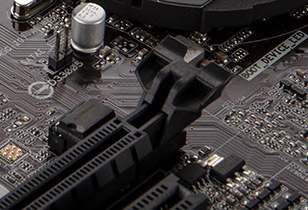

Q-Slot - Effortless PCI Express component removal The large winged clip is easy to reach and easy to operate. Just press the Q-Slot clip lightly, and graphics cards just pop out. Installing or removing even the biggest graphics cards is no sweat!

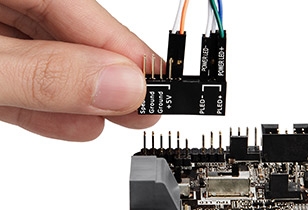

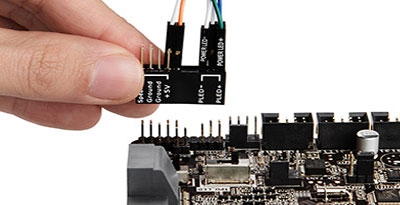

Q-Connector - Easy, quick, and accurate connections You no longer need to worry about which front-panel wire goes where. Just pop the wires into Q-Connector's one-piece plug that and you're good to go.

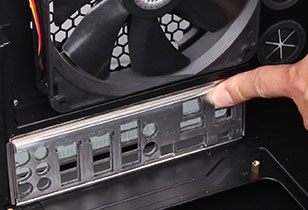

Q-Shield Easy and safe on fingers Unlike other I/O shields, with their sharp edges, the exclusive Q-Shield is soft and pliable to protect your hands from cuts.

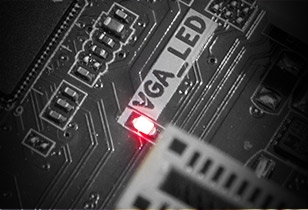

Q-LED - Easy PC diagnostics Q-LED indicates problems with the CPU, memory, graphics card or boot device, so you can quickly diagnose and remedy any issues and wave goodbye to endless frustrations!

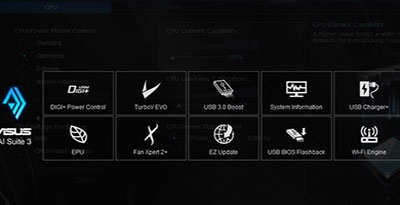

AI Suite 3
One-stop access to innovative ASUS features

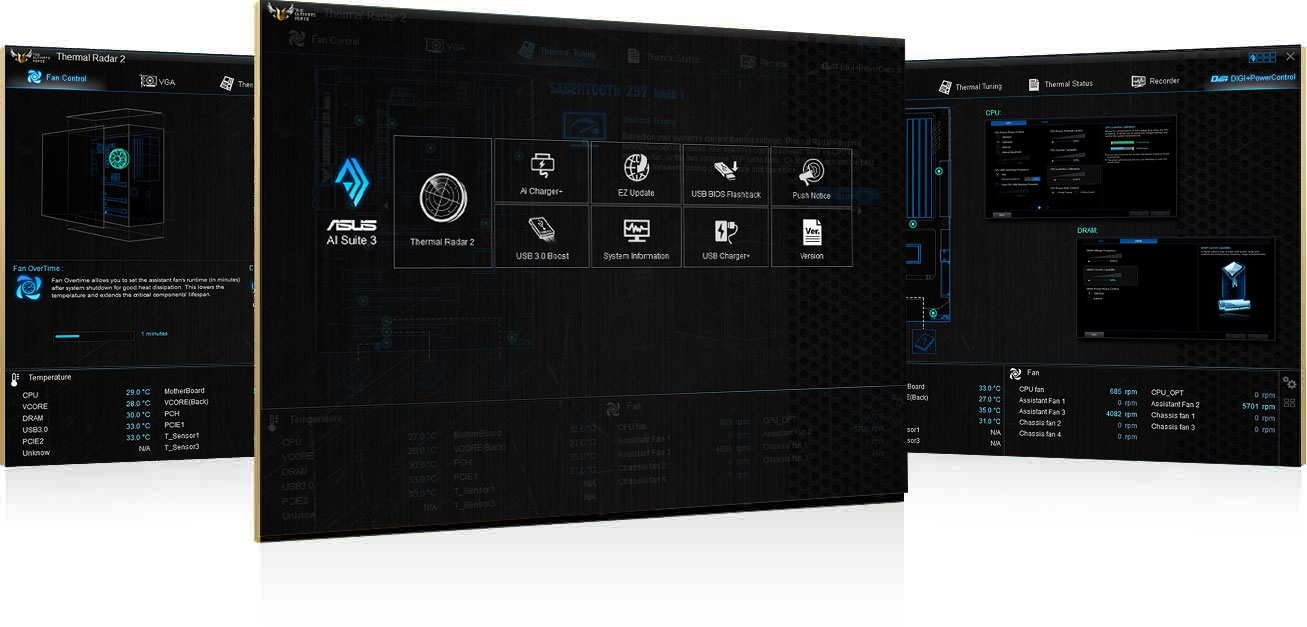

ASUS AI Suite 3 offers a brand-new user experience through a clearer and more attractive interface with support for larger monitors. It consolidates all exclusive ASUS features into one simple-to-use package, allowing you to supervise overclocking, energy consumption, fan speeds, voltages and more. This all-in-one app offers diverse and easy to use functionality, with no need to switch back and forth between different utilities.
Push Notice
Monitor your PC status on the go.

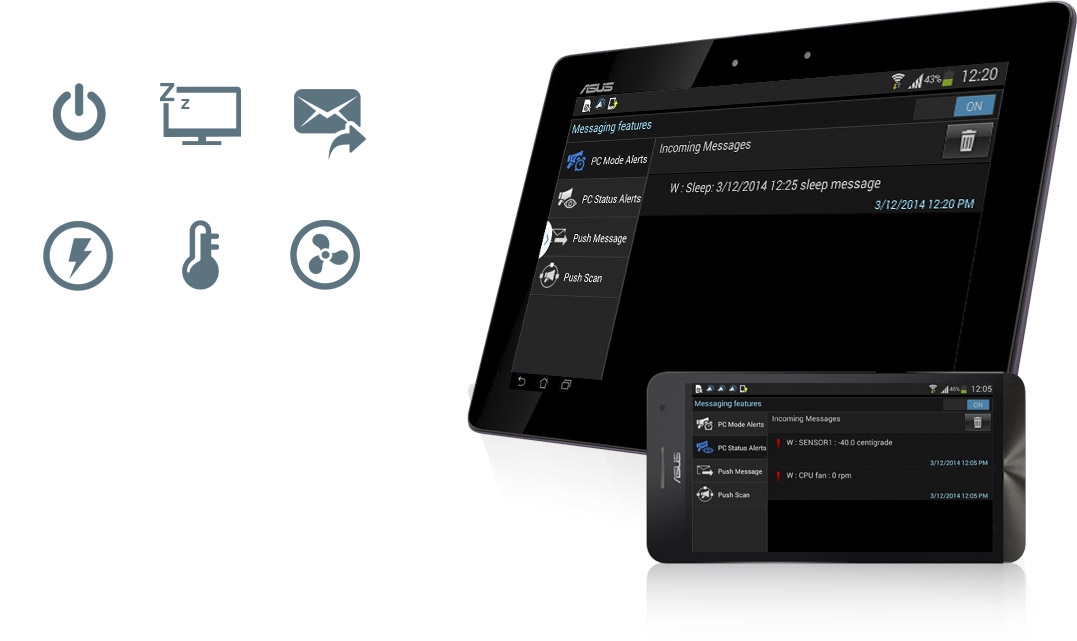

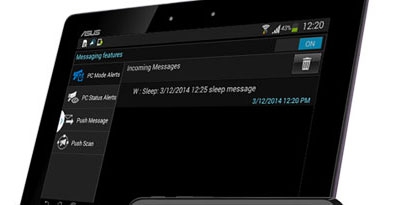

If you've ever wondering how your PC is faring when you're not around, Push Notice will keep you informed in real time! When your PC's status changes, Push Note instantly sends an alert to your tablet or smartphone. You can also throw the webpage you are browsing or memo to your smart device. Everything is under control, no matter where you are.
USB BIOS Flashback
Simple plug and press hardware-based BIOS flashing

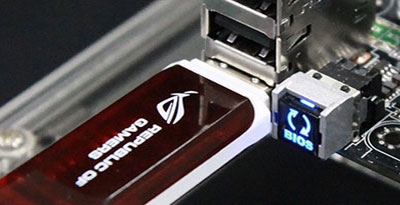

Hardware-level USB BIOS Flashback allows users to update to new UEFI BIOS versions even without a CPU or DRAM installed. Just plug in a USB flash drive containing the BIOS file and press the ROG Connect/USB BIOS Flashback/onboard BIOS BFLK button/Reset button* for 5 seconds with the power supply connected. Hassle-free updating for ultimate convenience!
Connect to a power supply
Plug a USB flash drive

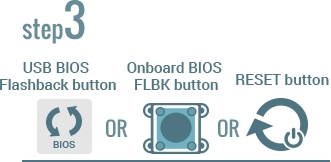

Press the button *The button's availability and location varies by motherboard model. Please refer to your manual.
EZ Flash 2
Easy BIOS updates from USB outside the operating system
Quickly update your BIOS from a USB flash drive before entering the OS. It only takes a few clicks, with no floppy disk or an OS-based flash utility.
EZ Flash 2
Easy BIOS updates from USB outside the operating system
Quickly update your BIOS from a USB flash drive before entering the OS. It only takes a few clicks, with no floppy disk or an OS-based flash utility.
Specifications:
- CPU
Intel Socket 1150 for the 5th/New 4th/4th Generation Core i7/Core i5/Core i3/Pentium/Celeron Processors
Supports Intel 22 nm CPU
Supports Intel Turbo Boost Technology 2.0
* The Intel Turbo Boost Technology 2.0 support depends on the CPU types.
* Refer to www.asus.com for CPU support list
- Chipset
Intel Z97
- Memory
4 x DIMM, Max. 32GB, DDR3 1866/1600/1333 MHz Non-ECC, Un-buffered Memory
Dual Channel Memory Architecture
Supports Intel Extreme Memory Profile (XMP)
* Hyper DIMM support is subject to the physical characteristics of individual CPUs.
* Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists).
- Graphic
Integrated Graphics Processor- Intel HD Graphics support
Multi-VGA output support : HDMI/DisplayPort ports
- Supports HDMI with max. resolution 4096 x 2160 @ 24 Hz / 2560 x 1600 @ 60 Hz
- Supports DisplayPort with max. resolution 4096 x 2160 @ 24 Hz / 3840 x 2160 @ 60 Hz
Maximum shared memory of 512 MB
Supports Intel InTru 3D, Quick Sync Video, Clear Video HD Technology, Insider
DP 1.2 Multi-Stream Transport compliant, supports DP 1.2 monitor daisy chain up to 3 displays
- Multi-GPU Support
Supports NVIDIA Quad-GPU SLI Technology
Supports AMD Quad-GPU CrossFireX Technology
- Expansion Slots
2 x PCIe 3.0/2.0 x16 (Single at x16, dual at x8/x8)
1 x PCIe 2.0 x16 (max at x4 mode, black) *1
3 x PCIe x1
- Storage
Intel Z97 chipset :
1 x SATA Express port, blackcompatible with 2 x SATA 6.0 Gb/s ports
4 x SATA 6Gb/s port(s), black,
Support Raid 0, 1, 5, 10
Supports Intel Smart Response Technology, Intel Rapid Start Technology, Intel Smart Connect Technology *2
ASMedia ASM1061 controller :
2 x SATA 6Gb/s port(s), beige
- LAN
Intel I218V, 1 x Gigabit LAN Controller(s), Dual interconnect between the Integrated Media Access Controller (MAC) and Physical Layer (PHY)
Realtek 8111GR, 1 x Gigabit LAN Controller(s)
Dual Gigabit LAN controllers- 802.3az Energy Efficient Ethernet (EEE) appliance
- Audio
Realtek ALC1150 8-Channel High Definition Audio CODEC
- Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking
- High quality 112 dB SNR stereo playback output (Line-out at rear) and 104 dB SNR recording input (Line-in)
Audio Feature :
- Absolute Pitch 192kHz/ 24-bit True BD Lossless Sound
- Optical S/PDIF out port(s) at back panel
- BD Audio Layer Content Protection
- Audio Shielding: Ensures precision analog/digital separation and greatly reduced multi-lateral interference
- Dedicated audio PCB layers: Separate layers for left and right channels to guard the quality of the sensitive audio signals
- Audio amplifier: Provides the highest-quality sound for headphone and speakers
- Unique de-pop circuit: Reduces start-up popping noise to audio outputs
- USB Ports
Intel Z97 chipset :
6 x USB 3.0/2.0 port(s) (2 at back panel, blue, 4 at mid-board)
ASMedia USB 3.0 controller :
2 x USB 3.0/2.0 port(s) (2 at back panel, blue)
Intel Z97 chipset :
8 x USB 2.0/1.1 port(s) (4 at back panel, black, 4 at mid-board)

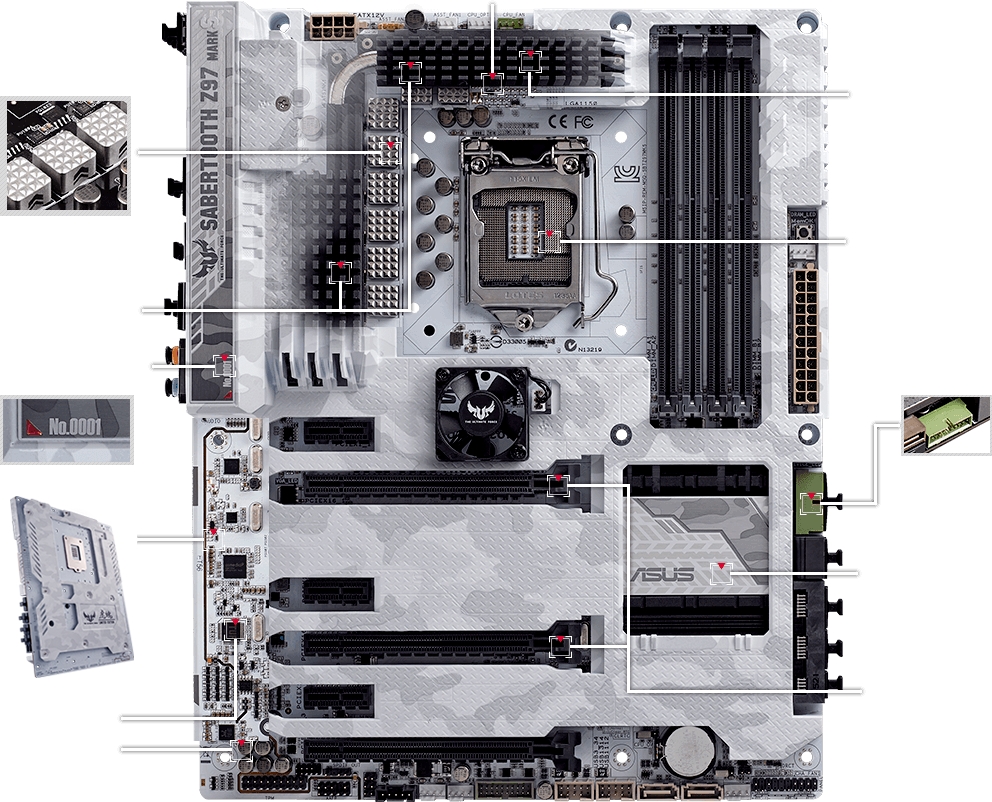

- Special Features
TUF Features:
TUF ENGINE! Power Design :

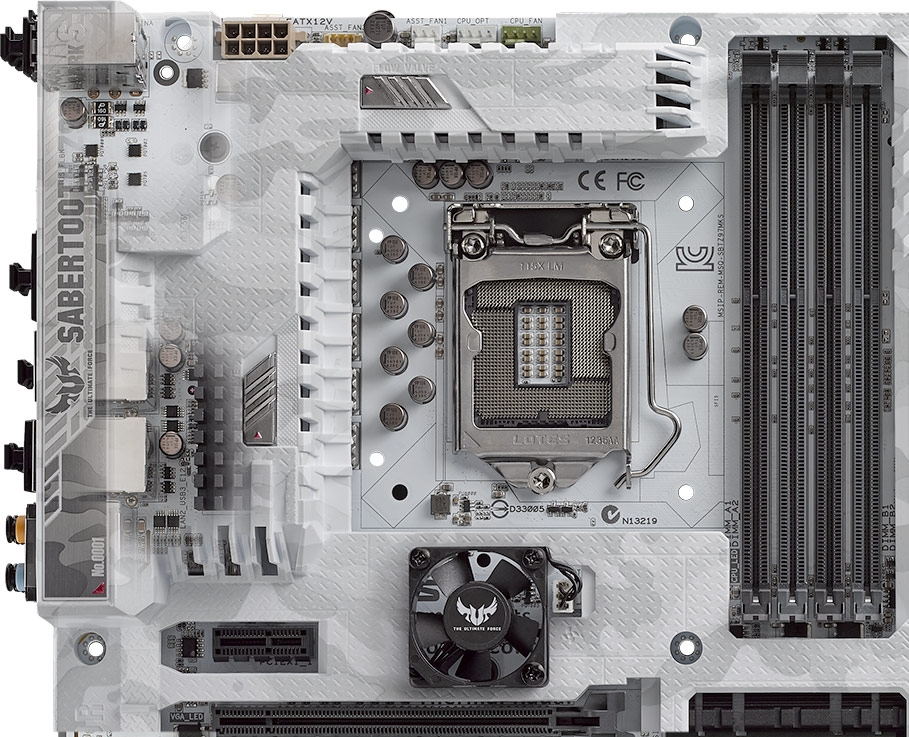

- 8 +2 Digital Phase Power Design

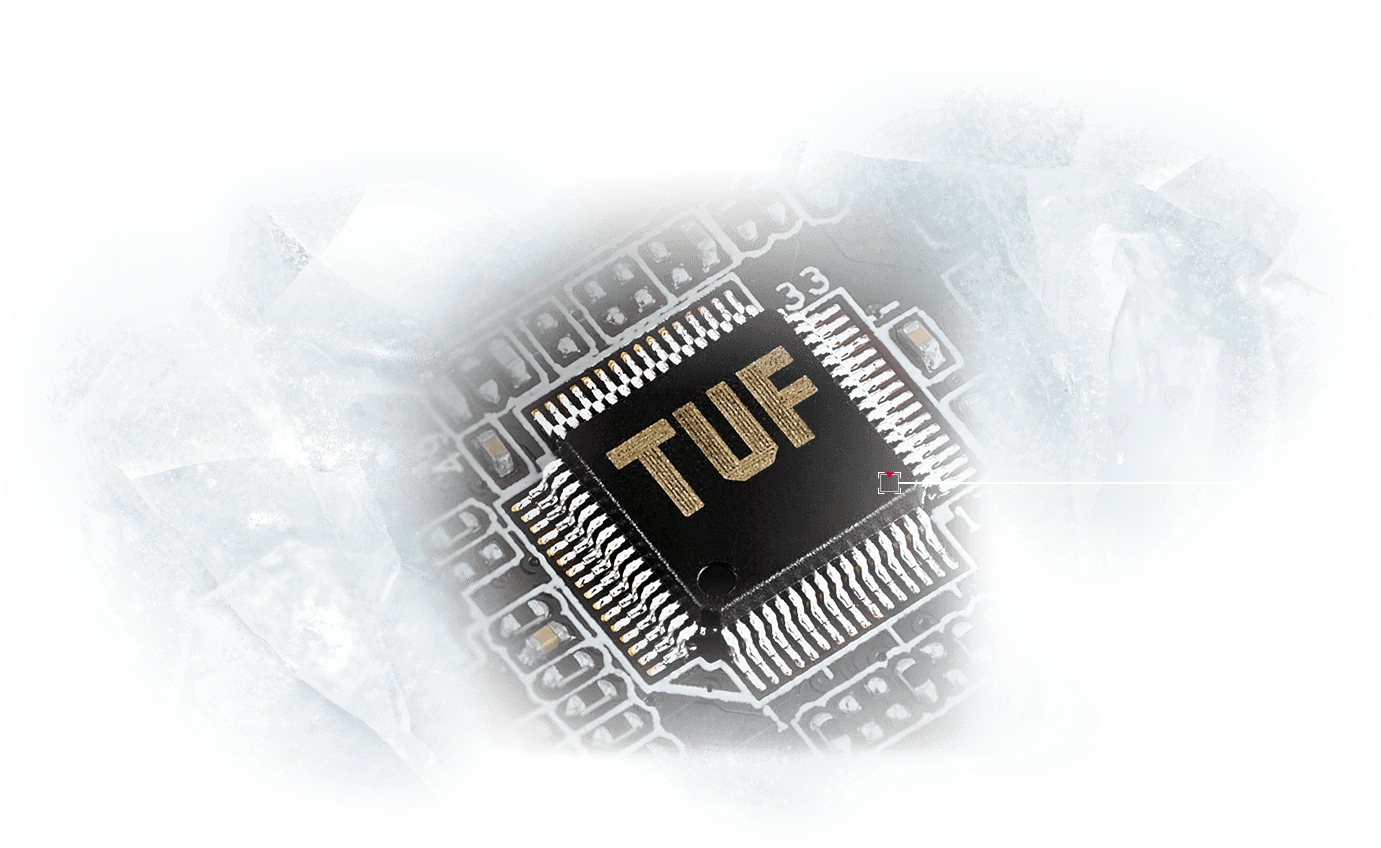

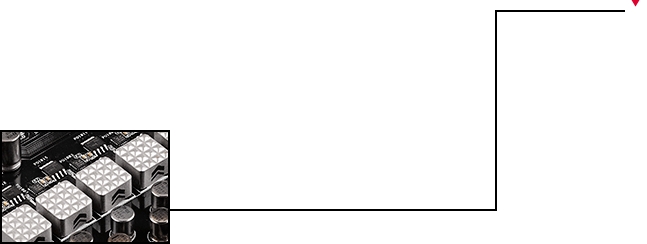

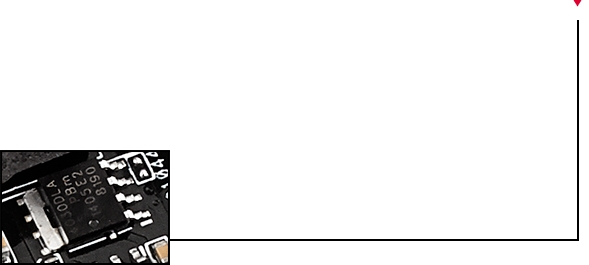

- TUF Components (New Alloy Choke, Ti-Cap. & MOSFET; certified by military-standard)
- ASUS DIGI+ Power Control Utility
Ultimate COOL! Thermal Solution :

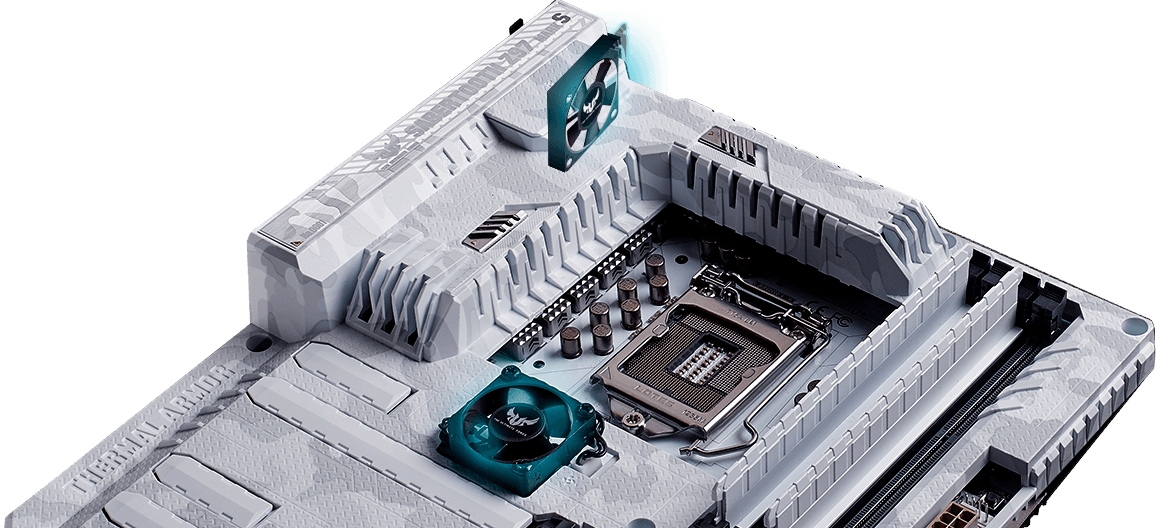

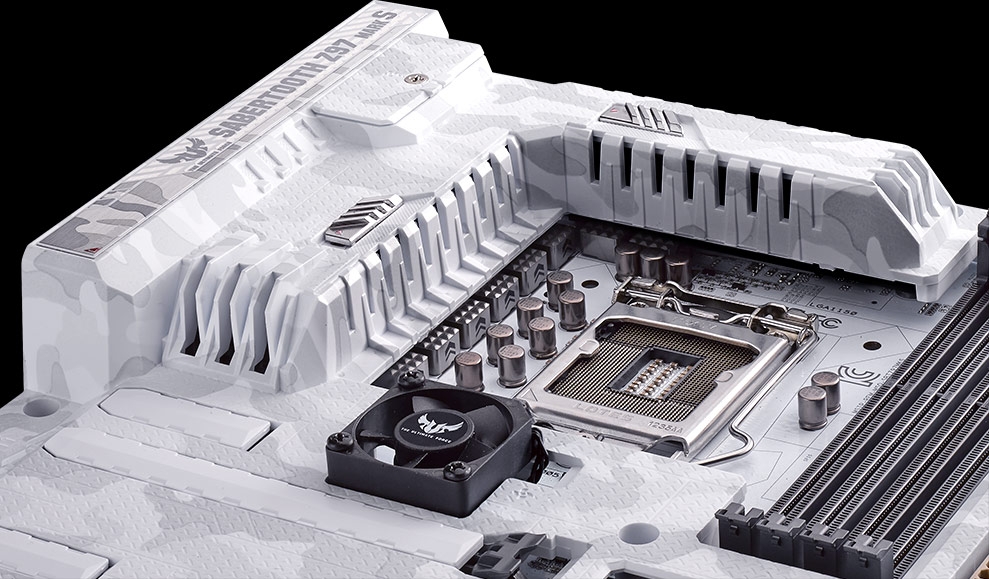

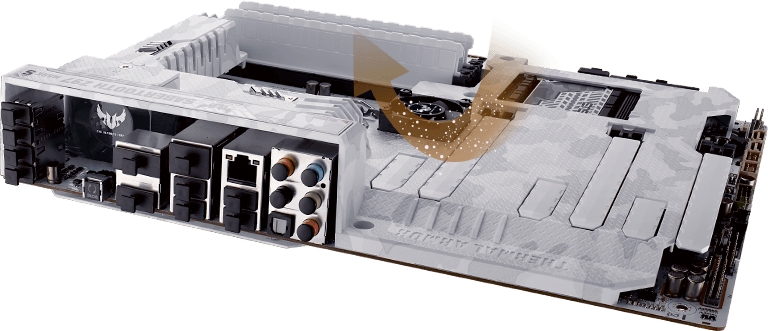

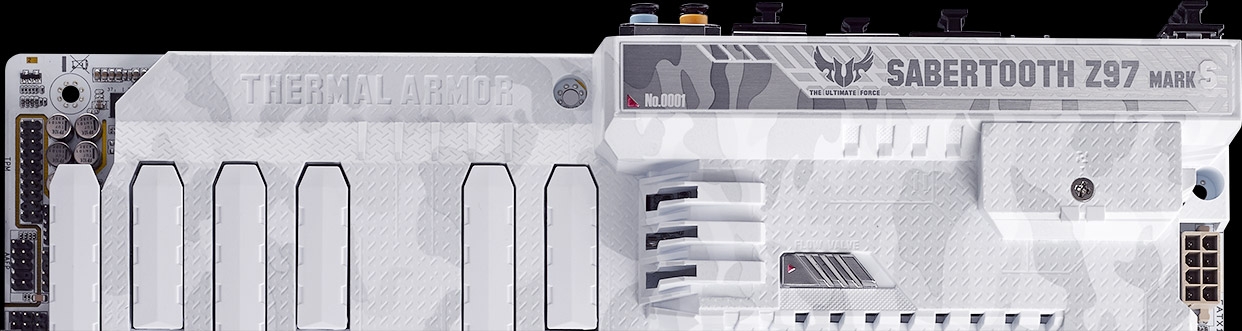

- TUF Thermal Armor with Flow Valve
- TUF Thermal Radar 2 with Thermistors
- TUF ICe
Safe & Stable! Guardian Angel :

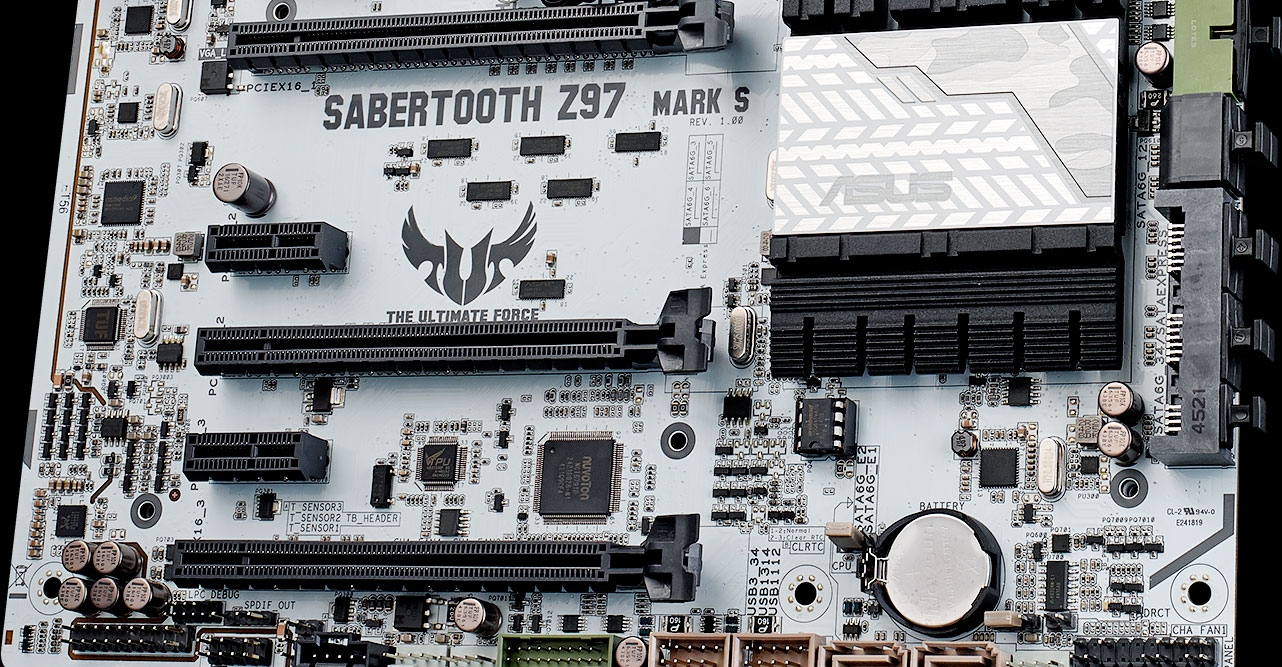

- Dust Defenders

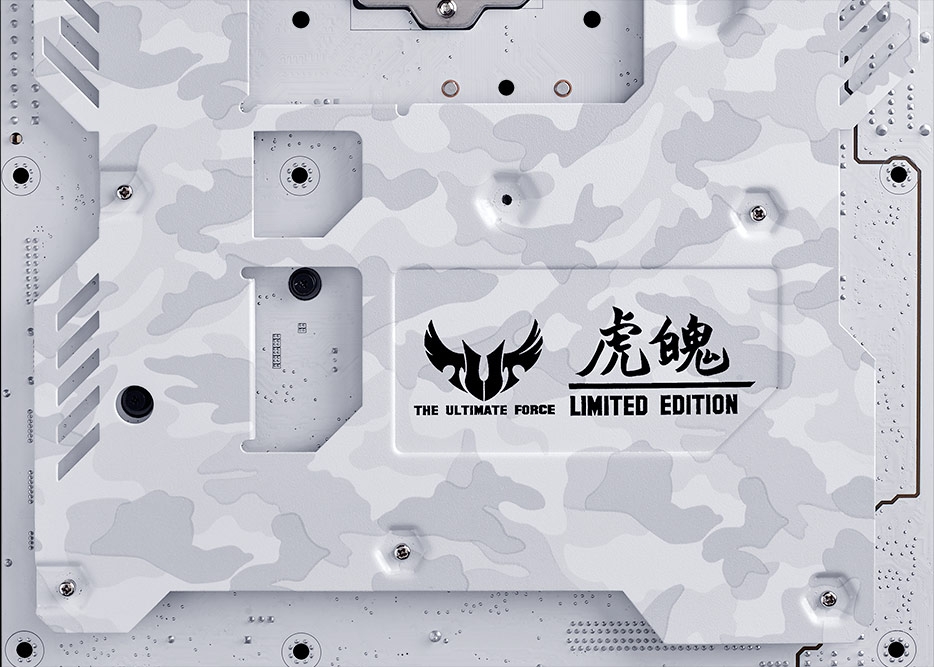

- TUF Fortifier
- TUF ESD Guards
ASUS Exclusive Features :
- Remote GO!
- USB BIOS Flashback
- MemOK!
- AI Suite 3
- Ai Charger+
- USB Charger+
- Anti-Surge
- Front Panel USB 3.0 Support
- ASUS UEFI BIOS EZ Mode featuring friendly graphics user interface
- USB 3.0 Boost
- Disk Unlocker
- Turbo LAN
Interactive HomeCloud
- Media Streamer
ASUS EZ DIY :
- Precision Tweaker 2
- ASUS O.C. Profile
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 2
- ASUS USB BIOS Flashback
- ASUS UEFI BIOS EZ Mode
- Multi-language BIOS
- Push Notice
- Media Streamer
ASUS Q-Design :
- ASUS Q-Shield
- ASUS Q-Cable
- ASUS Q-LED (CPU, DRAM, VGA, Boot Device LED)
- ASUS Q-Slot
- ASUS Q-DIMM
- ASUS Q-Connector
- Operating System Support
Windows 8.1
Windows 8
Windows 7
- Back I/O Ports
1 x DisplayPort
1 x HDMI
2 x LAN (RJ45) port(s)
4 x USB 3.0 (blue)
4 x USB 2.0 (one port can be switched to USB BIOS Flashback)
1 x Optical S/PDIF out
5 x Audio jack(s)
1 x USB BIOS Flashback Button(s)
- Internal I/O Ports
2 x USB 3.0 connector(s) support(s) additional 4 USB 3.0 port(s) (19-pin, moss green)
2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)
1 x SATA Express connector: black, compatible with 2 x SATA 6.0 Gb/s ports
1 x TPM header
6 x SATA 6Gb/s connector(s)
1 x CPU Fan connector(s) (1 x 4 -pin)
1 x CPU OPT Fan connector(s) (1 x 4 -pin)
4 x Chassis Fan connector(s) (4 x 4 -pin)
3 x Assistant Fan connector(s) (2 x 3 -pin, 1 x 4 -pin, [White])
1 x S/PDIF out header(s)
1 x Thunderbolt header(s)
1 x 24-pin EATX Power connector(s)
1 x 8-pin ATX 12V Power connector(s)
1 x Front panel audio connector(s) (AAFP)
1 x System panel(s) (Q-Connector)
1 x DRCT header(s)
1 x MemOK! button(s)
3 x Thermal sensor connector(s)
1 x Clear CMOS jumper(s)
- Accessories
User's manual
Accessory Guide
ASUS Q-Shield
4 x SATA 6Gb/s cable(s)
1 x SLI bridge(s)
1 x Q-connector(s) (2 in 1)
2 x Accessory Fan(s) ( 35 /40 mm )
1 x TUF Certification card(s)
1 x TUF 5 Year Warranty manual(s) (by region)
1 x TUF Inside sticker(s)
1 x Accessory Package(s):
- 3 x PCIe x16 slot dust cover(s)
- 2 x DRAM slot dust cover(s)
- 3 x PCIe x1 slot dust cover(s)
- 2 x Short fan screw(s)
- 4 x Long fan screw(s)
- 3 x Thermistor cable(s)
- 1 x back I/O dust frame
- 1 x back I/O dust grid
- 1 x connector dust cover collection (On board USB 3.0, DVI, HDMI, DP, LAN)
- 2 x On board USB 2.0 connector dust cover(s)
- 8 x back I/O USB 2.0 connector dust cover(s)
- 7 x On board SATA connector dust cover(s)
- 1 x SATA Express conector dust cover(s)
- 5 x Audio connector dust cover(s)
- BIOS
64 Mb Flash ROM, UEFI AMI BIOS, PnP, DMI2.7, WfM2.0, SM BIOS 2.8, ACPI 5.0, Multi-language BIOS,
ASUS EZ Flash 2, CrashFree BIOS 3, F11 EZ Tuning Wizard, F6 Qfan Control, F3 My Favorites, Quick Note, Last Modified log, F12 PrintScreen, F3 Shortcut functions, and ASUS DRAM SPD (Serial Presence Detect) memory information
- Manageability
WfM 2.0, DMI 2.7, WOL by PME, PXE
- Support Disc
Drivers
Anti-virus software (OEM version)
ASUS/TUF CPU-Z
ASUS Utilities
EZ Update
- Form Factor
ATX Form Factor
12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )
- Note
*1: The PCIe 2.0 x16 slot shares bandwidth with PCIe 2.0 x1_3 slot and USB3 E1/2 ports at back. The PCIe 2.0 x16 slot default setting is in x1 mode.
*2: These functions will work depending on the CPU installed.
*3: These SATA ports are for data hard drivers only. ATAPI devices are not supported.
