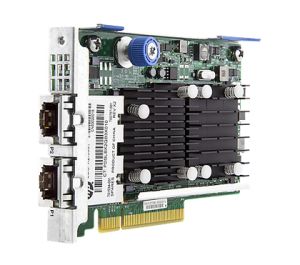

HP FlexFabric 10Gb 2-port 533FLR-T Adapter (700759-B21)
Overview
Are your enterprise data centers growing and requiring increased network performance? Increased workload demands are putting pressure on server I/O. The HP FlexFabric 10Gb 2-port 533FLR-T Adapter increases throughput for the HP ProLiant Gen8 DL and SL Server series by using the innovative HP FlexibleLOM form factor to offer dual-ports in a 10GBASE-T adapter configuration.
This is an affordable choice for workload-intensive computing environments, providing a reliable, high performance 10 GbE connectivity solution
Features
Accelerates Server Performance
The HP FlexFabric 10Gb 2-port 533FLR-T Adapter boosts network performance with full line-rate 10 GbE throughput across all ports.
Provides increased server performance by delivering full hardware offload for storage traffic.
Robust Virtualization Capabilities
The HP FlexFabric 10Gb 2-port 533FLR-T Adapter delivers Single Root I/O Virtualization (SR-IOV) support to allow multiple operating systems to share a physical interconnect.
Supports Vmware NetQueue and Microsoft VMQ technologies.
Enhances network management and efficiency with support for VLAN tagging.
Streamlines Deployment and Management
Makes Broadcom Ethernet solutions available across a wide range of HP server platforms.
Unifies NIC and storage management using HP ProActive Insight architecture.
Provides backward compatibility with existing 1GbE networks and low-cost CAT 6a UTP cabling, supporting distances up to 100 meters.
Network Partitioning to reduce network sprawl and take full advantage of bandwidth.
Allowing administrators to configure a 10Gb adapter as four separate partitions or physical functions. Eliminate multiple nics, hbas, cables consolidating multiple connections on to one network adapter.
Ideal for customers in virtual server environments by allowing them to segment the high performance connection and provide the right amount of network bandwidth to the applications.
Technical features
Network processor
- Broadcom BCM57810S chipset
Data rate
- Two ports, each at 20 Gbps full duplex
- 40 Gbps aggregate full duplex theoretical bandwidth.
Bus type
Form factor
Power
Server supported
IEEE compliance
- 802.3, 802.3x, 802.2x, 802.3ad, 802.1Qaz, 802.1Qau, 802.1Qbb, 802.1Qbg,802.1ax
Compatible operating systems
- Microsoft Windows Server 2008
- HPC Server 2008
- Small Business Server 2011 (SBS V7)
- Multipoint Server 2011
- Server 2012
- Hyper-V (R2 w/SP1)
- RHEL 5.7/5.8/5.9/6.1/6.2/6.3 x86 and AMD 64 & EM 64T
- SLES 10, 11 SP4 x86 and AMD 64 & EM 64T
- Solaris 10/11
- VMware vSphere 4.1 and 5.0
- Citrix XenServer 6.0/6.1
Product differentiator
- FlexFabric 10Gb 2-port 533FLR-T Adapter
Dimensions and weight
Dimensions (W x D x H)
5.72 x 24.13 x 19.05 cm
Weight
0.45 kg
