All stock codes associated to this product
ER-X-SFP, ERXSFP, NHUERXSFP, NHU-ER-X-SFP, 810354021817, 817882023290

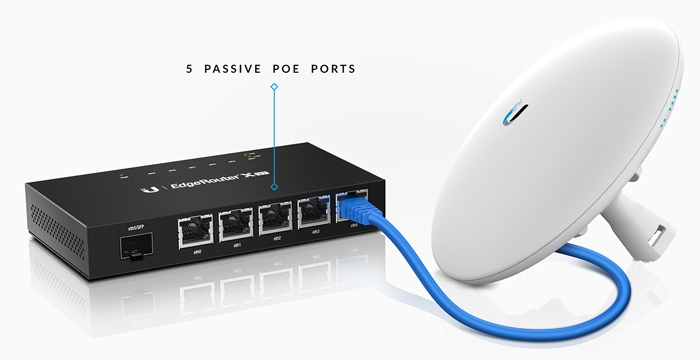

The Ubiquiti ER-X-SFP EdgeRouter X SFP Advanced Gigabit Ethernet Router w. PoE and SFP is a versatile and powerful router that can handle a variety of networking tasks. It has five 10/100/1000 RJ45 ports, one 100/1000 SFP port, and 24V Passive PoE. It's a great choice for small or medium-sized networks.
The Ubiquiti EdgeRouter X SFP is a powerful, cost-effective routing solution with the added convenience of passive PoE support. With five independent Gigabit RJ45 ports and one Gigabit SFP port, it offers plenty of capacity for even the most demanding networks. The SFP port provides fiber connectivity for backhaul applications, making it ideal for carrier-class networks.
|
Specifications |
|
|
|
|
|
ERXSFP |
|
Dimensions |
142 x 75 x 23 mm (5.59
x 2.95 x 0.91") |
|
Weight |
215 g (7.58 oz) |
|
Max. Power
Consumption |
5W |
|
Max. Total PoE
Output |
50W @ 24V |
|
PoE Output |
Passive 24V (Pins 4,
5+; 7, 8-) |
|
Power Input |
24VDC, 2.5A Power
Adapter (Included) |
|
Power Supply |
External AC/DC
Adapter |
|
Supported Voltage
Range |
9 to 26VDC |
|
Button |
Reset |
|
LED |
Power, Link/Activity
(6), PoE (5) |
|
Processor |
Dual-Core 880 MHz,
MIPS1004Kc |
|
System Memory |
256 MB DDR3 RAM |
|
Code Storage |
256 MB NAND |
|
Certiications |
CE, FCC, IC |
|
WallMount |
Yes |
|
ESD/EMP Protection |
Air: 24 kV, Contact: 24
kV |
|
Operating
Temperature |
-10 to 45 C (14 to 113
F) |
|
Operating Humidity |
10 to 90%
Noncondensing |
|
|
|
|
|
|
|
|
Networking Interfaces |
|
Data/PoE Output
Port |
(5) 10/100/1000 RJ45
Ports |
|
Data Port |
(1) 100/1000 SFP
Port |
|
|
|
|
|
|
|
|
PoE with 24VDC Power Adapter |
|
PoE Out Voltage
Range |
2224VDC |
|
Max. PoE Wattage Per
Data/PoE Output Port |
12W (24V) |
|
Max. PoE Wattage
Combined
(All 5 Data Ports) |
50W |
|
PoE Method |
Passive |
|
|
|
|
|
|
|
|
Software Specifications |
|
|
|
|
|
EdgeOS |
|
Interface/Encapsulation |
Ethernet
802.1q
VLAN
PPPoE
GRE
IP in IP Bridging
Bonding
(802.3ad) |
|
Addressing |
Static IPv4/IPv6
Addressing
DHCP/DHCPv6 |
|
Routing |
Static Routes
OSPF/OSPFv3
RIP/RIPng
BGP (with IPv6 Support)
IGMP
Proxy |
|
Security |
ACLBased Firewall
ZoneBased Firewall
NAT |
|
VPN |
IPSec SitetoSite and
Remote Access OpenVPN SitetoSite and Remote Access
PPTP Remote Access
L2TP Remote Access
PPTP Client |
|
Services |
DHCP/DHCPv6 Server
DHCP/DHCPv6 Relay
Dynamic DNS DNS Forwarding
VRRP
RADIUS Client
Web Caching
PPPoE Server |
|
QoS |
FIFO
Stochastic
Fairness Queueing Random Early Detection Token Bucket Filter Deicit Round
Robin Hierarchical Token Bucket
Ingress Policing |
|
Management |
Web UI CLI (SSH,
Telnet)
SNMP
NetFlow
LLDP NTP
UBNT Discovery
Protocol
Logging |
